Getting Started with M.2 Modules and i.MX RT

Getting Started with

M.2 Modules and i.MX RT

httg //www EmbeddedAmsls.com ask you may have for improvemems www.embeddedar1ists com/contact

Getting Started with M.2 Modules and i.MX RT

Page 2

Rev A

Embedded Artists AB

Jörgen Ankersgatan 12

SE-211 45 Malmö

Sweden

http://www.EmbeddedArtists.com

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or

translated into any language or computer language, in any form or by any means, electronic,

mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of

Embedded Artists AB.

Disclaimer

Embedded Artists AB makes no representation or warranties with respect to the contents hereof and

specifically disclaim any implied warranties or merchantability or fitness for any particular purpose.

Information in this publication is subject to change without notice and does not represent a

commitment on the part of Embedded Artists AB.

Feedback

We appreciate any feedback you may have for improvements on this document. Send your comments

by using the contact form: www.embeddedartists.com/contact.

Trademarks

All brand and product names mentioned herein are trademarks, services marks, registered

trademarks, or registered service marks of their respective owners and should be treated as such.

Getting Started with M.2 Modules and i.MX RT

Page 3

Rev A

Table of Contents

1 Document Revision History ................................. 4

2 Introduction ........................................................... 5

2.1 Conventions .................................................................................... 5

3 QuickStart Guide ................................................... 6

3.1 Step #1: Downloading and Installing MCUXpresso SDK ............ 6

3.2 Step #2: Mount M.2 Module ......................................................... 11

3.3 Step #3: Example Application - iperf .......................................... 14

3.3.1 Import wiced-iperf ........................................................................ 14

3.3.2 Patch ........................................................................................... 17

3.3.3 Configure the Example ................................................................ 18

3.3.4 Compile and Run/Debug ............................................................. 19

3.3.5 Explanation of the example ......................................................... 20

3.3.6 Troubleshooting ........................................................................... 23

3.4 Step #4: Example Application - Bluetooth ................................. 24

3.4.1 Import wiced_ble_4343W ............................................................ 25

3.4.2 Patch ........................................................................................... 28

3.4.3 Configure the Example ................................................................ 29

3.4.4 Compile and Run/Debug ............................................................. 30

3.4.5 Explanation of the example ......................................................... 31

3.4.6 Troubleshooting ........................................................................... 34

4 Debug Interface ................................................... 35

4.1 J-LINK/J-TRACE Support............................................................. 36

4.1.1 Install J-LINK Software ................................................................ 36

4.1.2 MCUXpresso 10.3.0 .................................................................... 37

4.2 Debug Troubleshooting ............................................................... 37

5 Improved IPERF performance ............................ 38

Revision Date Descripﬂ'on PA1 2019-04-30 First release. PA2 2019-05-03 Updated screen shots and some pictures. PA3 2019-09-10 Updated screen shots in 3.1. Updated debug troubleshooting in 3.3.6. PA4 2020-01-14 Updated to match SDK 2.7.0 PAS 2020-01-31 Added note in section 5 about broken instructions

Getting Started with M.2 Modules and i.MX RT

Page 4

Rev A

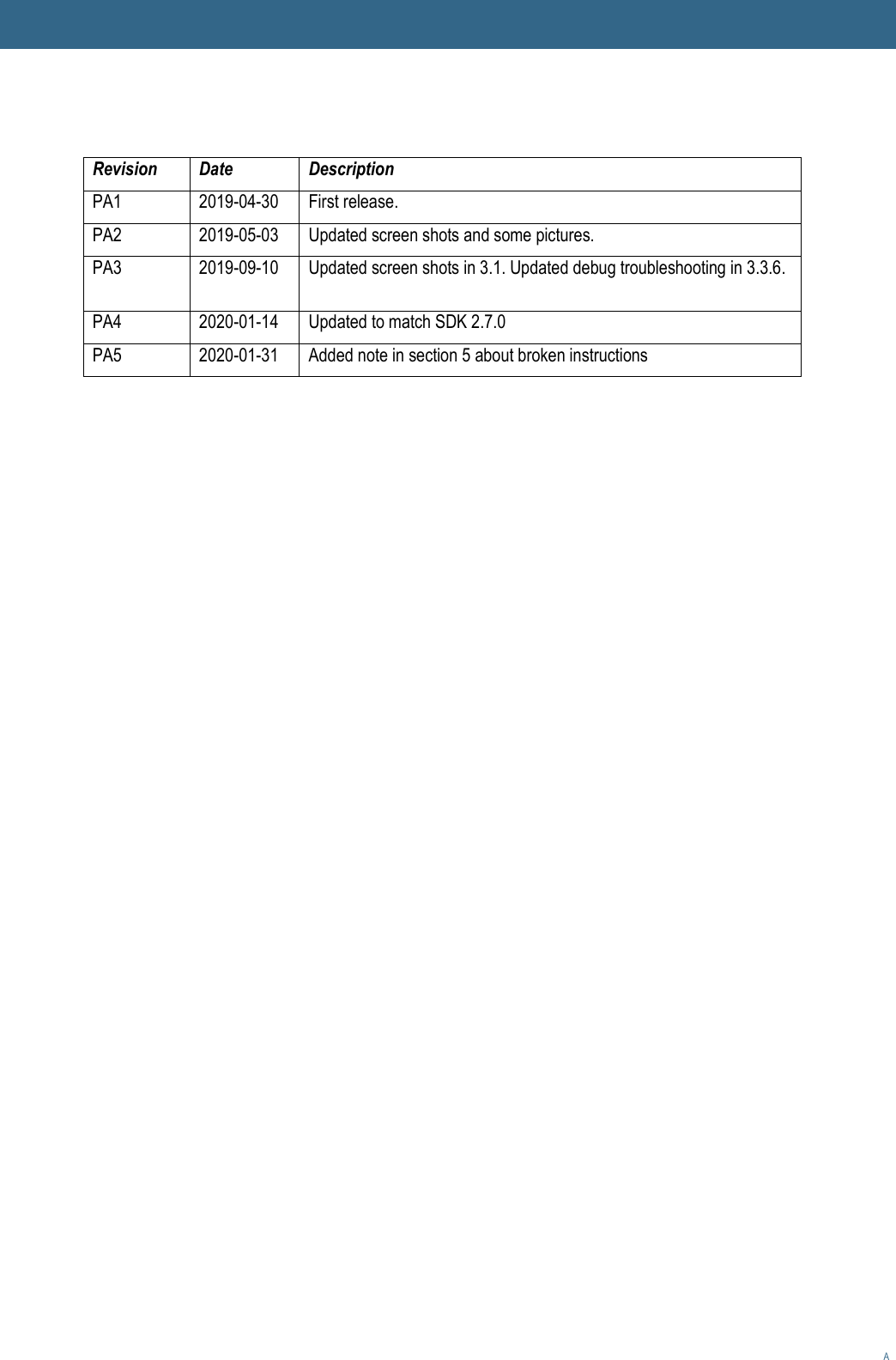

1 Document Revision History

Revision

Date

Description

PA1

2019-04-30

First release.

PA2

2019-05-03

Updated screen shots and some pictures.

PA3

2019-09-10

Updated screen shots in 3.1. Updated debug troubleshooting in 3.3.6.

Added Bluetooth example in section 3.4

PA4

2020-01-14

Updated to match SDK 2.7.0

PA5

2020-01-31

Added note in section 5 about broken instructions

Getting Started with M.2 Modules and i.MX RT

Page 5

Rev A

2 Introduction

This document describes how to add wireless functionality with M.2 modules to an iMX RT1062

Developer's Kit. The kit will be referred to as the iMX RT Developer's Kit for the rest of the document.

Additional documentation you need is:

 iMX RT1052/1062 Developer's Kit Program Development Guide - called Program

Development Guide for short in this document

 iMX RT1062 Developer's Kit User's Guide

 iMX RT1052/1062 OEM Board Datasheet

 M.2 Module Datasheet for the specific M.2 module you are using

2.1 Conventions

A number of conventions have been used throughout to help the reader better understand the content

of the document.

Constant width text – is used for file system paths and command, utility and tool names.

$ This field illustrates user input in a terminal running on the

development workstation, i.e., on the workstation where you edit,

configure and build Linux

# This field illustrates user input on the target hardware, i.e.,

input given to the terminal attached to the COM Board

This field is used to highlight important information

Getting Started with M.2 Modules and i.MX RT

Page 6

Rev A

3 QuickStart Guide

This chapter is a step-by-step guide to get Wi-Fi up and running in shortest possible time:

1. The first step is to download and install the SDK.

2. The second step describes how to physically mount the M.2 module.

3. The third step describes how to setup, patch and run the example project.

Above are the three simple steps to get up-and-running immediately!

There are a couple of more sections describing different aspects, like debugging and a performance

patch for iperf.

iMX RT1052

Note that as of January 2020 the NXP SDK (2.7.0) includes Wi-Fi support for the 1DX and 1LV M.2

modules and Bluetooth support only for the 1DX M.2 module. Additional Bluetooth support is

scheduled for a coming release as well as support for the 1MW and 1LV M.2 modules. Exact

release date is TBD.

iMX RT1062

Note that as of January 2020 the NXP SDK (2.7.0) includes Wi-Fi support for the 1DX and 1LV M.2

modules and Bluetooth support only for the 1DX M.2 module. Additional Bluetooth support is

scheduled for a coming release as well as support for the 1MW and 1LV M.2 modules. Exact

release date is TBD.

NXP's SDK supports several IDEs but this guide is focusing on the free MCUXpresso IDE from NXP.

Combining this document and the more general Program Development Guide should make it easy to

use another IDE as well.

3.1 Step #1: Downloading and Installing MCUXpresso SDK

This section will walk you through the installation of the MCUXpresso SDK, which is a package of

sample software projects (with device drivers and peripheral examples and demos) that will get you

started immediately with your i.MX RT software development. Note that even though the name of the

SDK suggests the code package is for the MCUXpresso IDE, the sample projects have project files for

other IDEs as well, such as Keil uVision/MDK, IAR Embedded Workbench, and more.

First download the MCUXpresso SDK by following this URL: https://mcuxpresso.nxp.com/en/welcome.

This is the online SDK builder that makes sure you will get the latest version of the software.

Note that some details in the screen dumps in this section might change over time, but the basic

walkthrough steps are the same.

You will need to login to your NXP account. Then click on Select Development Board.

, I Vietnam: mum» c ﬁsaksr H!p§’nmxpr:ssanxp.3ie( hum a Scircincvciopmcniauard ‘ i n An: sMySDKDashbnard ‘ OVERViL‘r so’nvm: AND ’OOLS )ZVELOPER QEGOURCES Getting started with MCUXpresso SDK is simple. DD You have a development board? Sign by Eiirkiﬂg on seiqri iimrpinnmani Hoamln dmmiozd a usiomized SDK ior mi Spetii’it piairurm Are you retuming and seeking previouslydawnloaded SDKs? Ci ck on Dashboard for quick access to your nisiow or downioads

Getting Started with M.2 Modules and i.MX RT

Page 7

Rev A

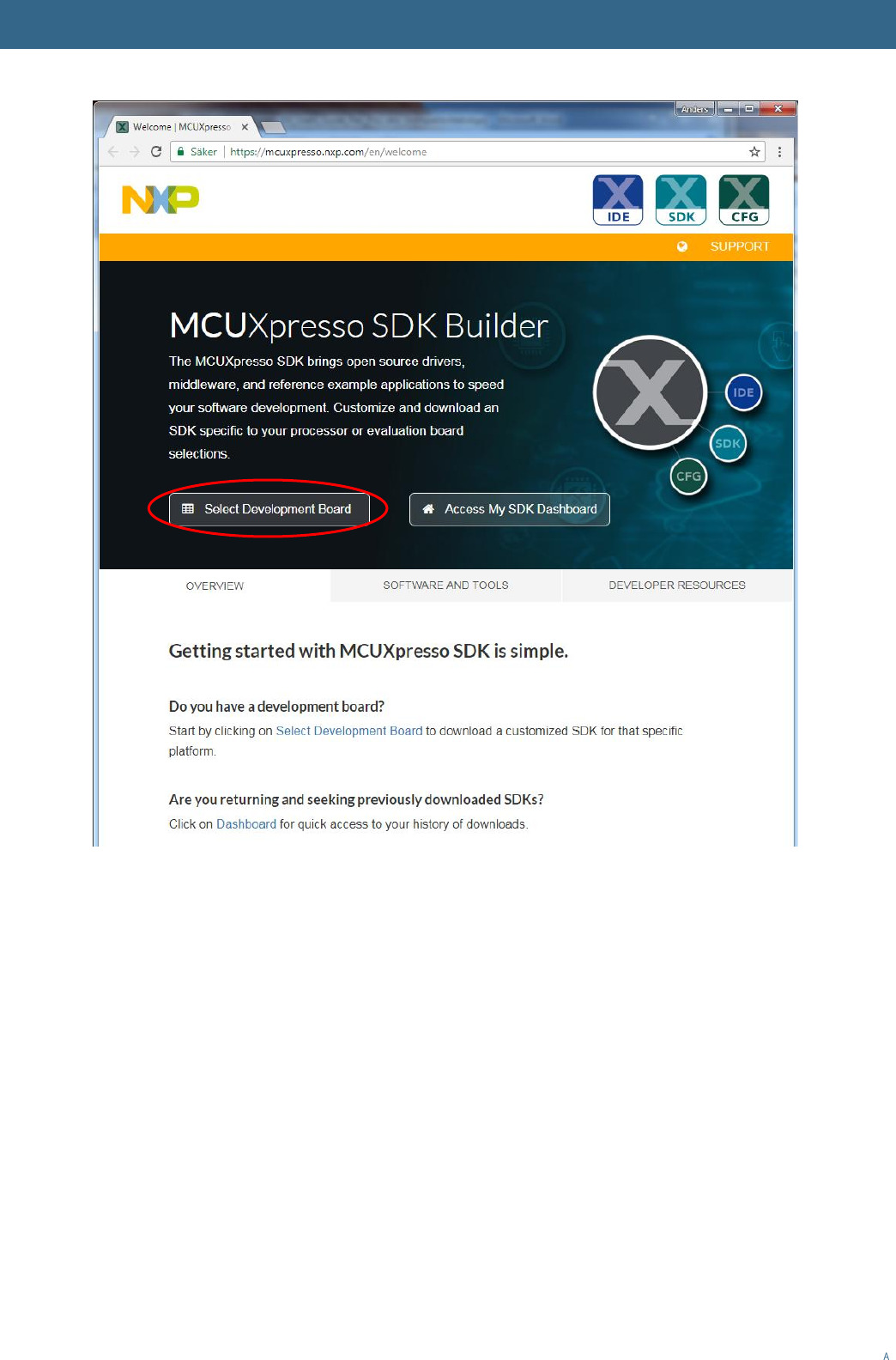

Figure 1 – MCUXpresso SDK Builder

+ sAmk-szuanasm A \M- .. «MA KM. ._ _ w <- c="" a="" mpmmcmpmummmmm="" n="" m="" mama="" select="" development="" board="" 5m»="" by="" m.="" mm="" a,="" m="" w="" w="" named="" i="" ‘="" ea‘m="" balm="" sun/ch="" by="" nam-="" '="" a="" exwum="" '="" a="" m="" mwm="" n="" v="" sin:="" i="" dew:v="" land,="" nr="" kl!="" i="" m;="" emmwxmu:="" a="" m="" mm="" |="" a="" www="" m:="" www.="" mm="" m="" muxwa="" .="" w="" mmmm="" _="" mmmmm="" m="" mcuxm-sm="" mi="" i="" 5?="" ”www="" evkmmxwidh)="" camvm="" vamluannsa="" vamernow="" mek="" mm="" v="" um.="" yul-="" sax="" pm="" us.="" m="" mummmmsux="" puvaeypu="" n="" ‘evmeusi‘="" carmel="" eziqvkpsamccrcu="">

Getting Started with M.2 Modules and i.MX RT

Page 8

Rev A

Then select the Boards  i.MX  EVK-MIMXRT1060. This is the NXP evaluation board, but most of

the samples will work unmodified on the iMX RT Developer's Kit.

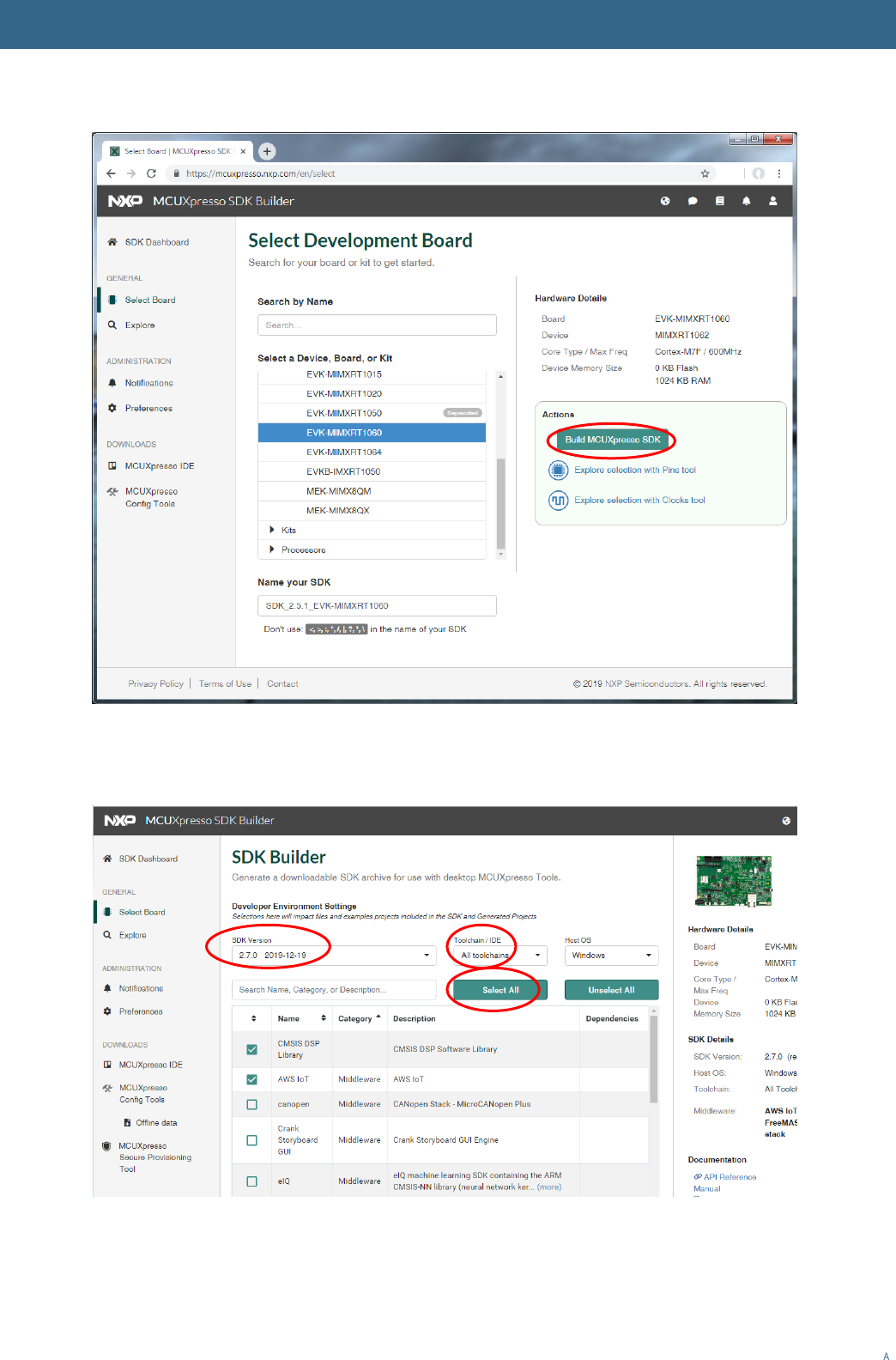

Figure 2 – MCUXpresso SDK Builder - Select Development Board

I saw aw: mzuanasm c a mpsuvmmammwm.mm n smowmmm Select Development Board gem lor you. mu m h. lo M mm l' WM mm”. mm- q [mm mm vamwmmm M. Mlmnm mm. “n _Mu_m‘"“ WHWMMN cannun‘xmnmm MWWW. mm . “MW EvKwawnms A WWW mmumm ﬂ Pm'sm“ EVKMMXRYIHSO Annun- WWW: mmummu m wuw-mlnf WWW @ Emmmwmm a mum“ max mm mm, @ EW‘WSWWMMM mm mm , m , W lhml m. snK sax; 5 szxrmxmnw um us. an m u. m. a m sax PuvaEyFnllw l Immu‘e \ can” Mm \xpgammmg Mum; W n snxmm SDK Builder Own”! a dawnmm. suxmm m. .9 mm mama» MGHXpmun lnMu Dnuhwimmnmm|mnr |. MN WWWWMWWWW Q (”hm SDKVQW mm: W m.” m V Mm . um Wm.“ KN mm “W" CM . Mam mum WWWW MM . m. MW , _ m : Mam. ‘ cakvonr‘ n-wnvmn "Hyman-ms W ’< my“;="" .="" .="" .,="" mm.="" “awl“="" mssws="" cmsxsnsvsnnmreuu-vy="" um,="" wm="" m.-="" m="" mme="" h="" a”="" w="" awsm="" mmdkw-r:="" .wsm="" ““="" q="" m“="" 2="" mm...="" ”w="" gmw'”="" um="" an="" mlddkwu:="" mm="" samrmcmum="" mm;="" b="" m="" a="" munmm="" ath="" ..="" m...»="" m="" 22:1"="" 0="" "www="" d="" :s‘anam="" mam.”="" cmnlsmryna-mnmingm="" www="" mm“="" m="" d="" w="" mw="" .k.="" m="" www="" cms‘snnmem-‘nl="" "wm="" m="" .1="" manual="">

Getting Started with M.2 Modules and i.MX RT

Page 9

Rev A

After selecting the NXP EVK, click on the Build MCUXpresso SDK button.

Figure 3 – MCUXpresso SDK Builder - Build MCUXpresso SDK

Select All Toolchains under the Toolchain/IDE dropdown list. Select SDK version 2.7.0 2019-12-19.

Figure 4 – MCUXpresso SDK Builder - Select Toolchain

Click the Select All button to select all optional software components.

. mm“. a Put-Ma- 111 mm“ as at mum-w MM. 3 mm. g HEW-(m Smur- mum m 3 mm mm”... AzmuanDK a“... Mm“... Lrwibv'! a.» mum mam—m cmmmmmm... «a “mum.“ summmmm .m mama: wms‘wummmawm m we, Emma a mm“ mm”... Emwaedwxnmcm 'MIIIWXV—usllmvﬂwon .mmmmmw PmsyPany «mm. mm sum 7 uwwxamn M u. -.n Dun-m m.” Mmm mm m mam mum, m- up um. Dunn-1m an em wm cu, ; m ”an.“ Emma mum am mm, mm mam... Emu—muss mmm mam Imu- me; w, mm. mm nMp—hm. mm m «m. mammal" n m ,9 sun-u n m... Mus m Charm Lw omwwwmm Auwmrmm

Getting Started with M.2 Modules and i.MX RT

Page 10

Rev A

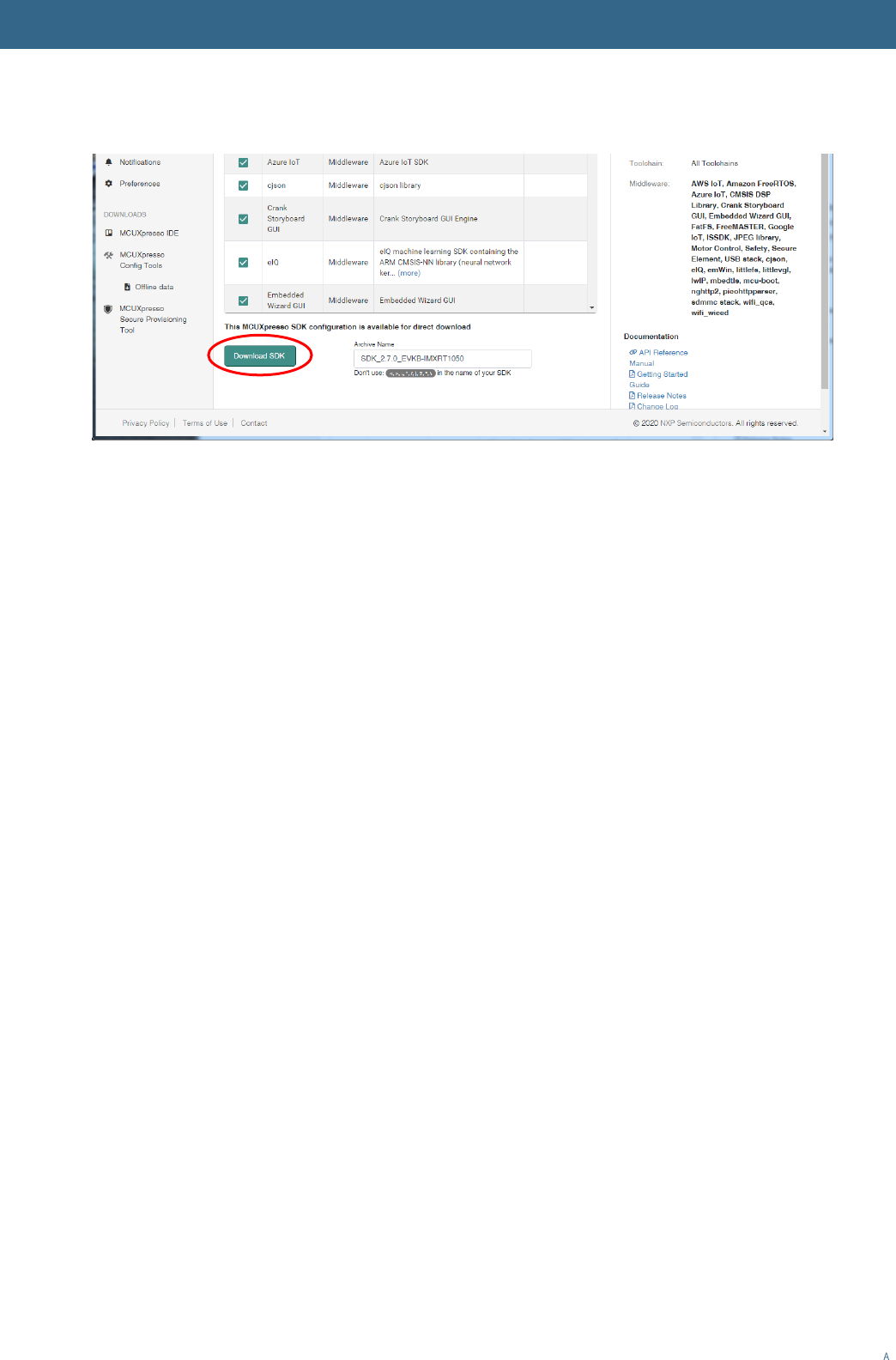

Scroll to the bottom of the page and press the Download SDK button. This will give you a complete

package with all software.

Figure 5 – MCUXpresso SDK Builder - SDK Builder

Also agree to the Software Terms and Conditions by clicking on the I Agree button.

Downloads MCUXDressoSDK a. mmm sDK Arum: (m ME) I. mwmmuanxMmmm l? wamad Slanda‘mleExzmv‘e mum Addlﬂolul Yank nmlmauummmmeanﬁv-wmwmnmmm m», m-u- m mg "mm—m... mm... mu m ._ sax E' cm swam l? Emh‘dd-d w‘m 5mm mi... Dualmlmniml a» Vlew m m Mm. Mam w \SSDK w Mm. Mam Mouxmm CAMIKYook .l. owl,“ Co'ww Tad: dun @nmlledsxs :3 ’Pmpeme: Fynalems Gimme >‘Telmma‘ m1 Imaqthfu Qnemqqacmme ‘ [unﬁlled SDKS 111mm Tn inmll In sun simply mag and duly In SDK (zip ale/lama) imam 'InsIalled snxs' view. [Common 'mweso' foll‘kl] imam 50K} Available llama; Availablz mg Nam: sox Vaslan Manila Vum'lwl Loan“ 3 SDKJLEVKrMIMXKTlM no mo ‘54 \sou;

Getting Started with M.2 Modules and i.MX RT

Page 11

Rev A

Download of a (about) 170MByte zip-file will begin.

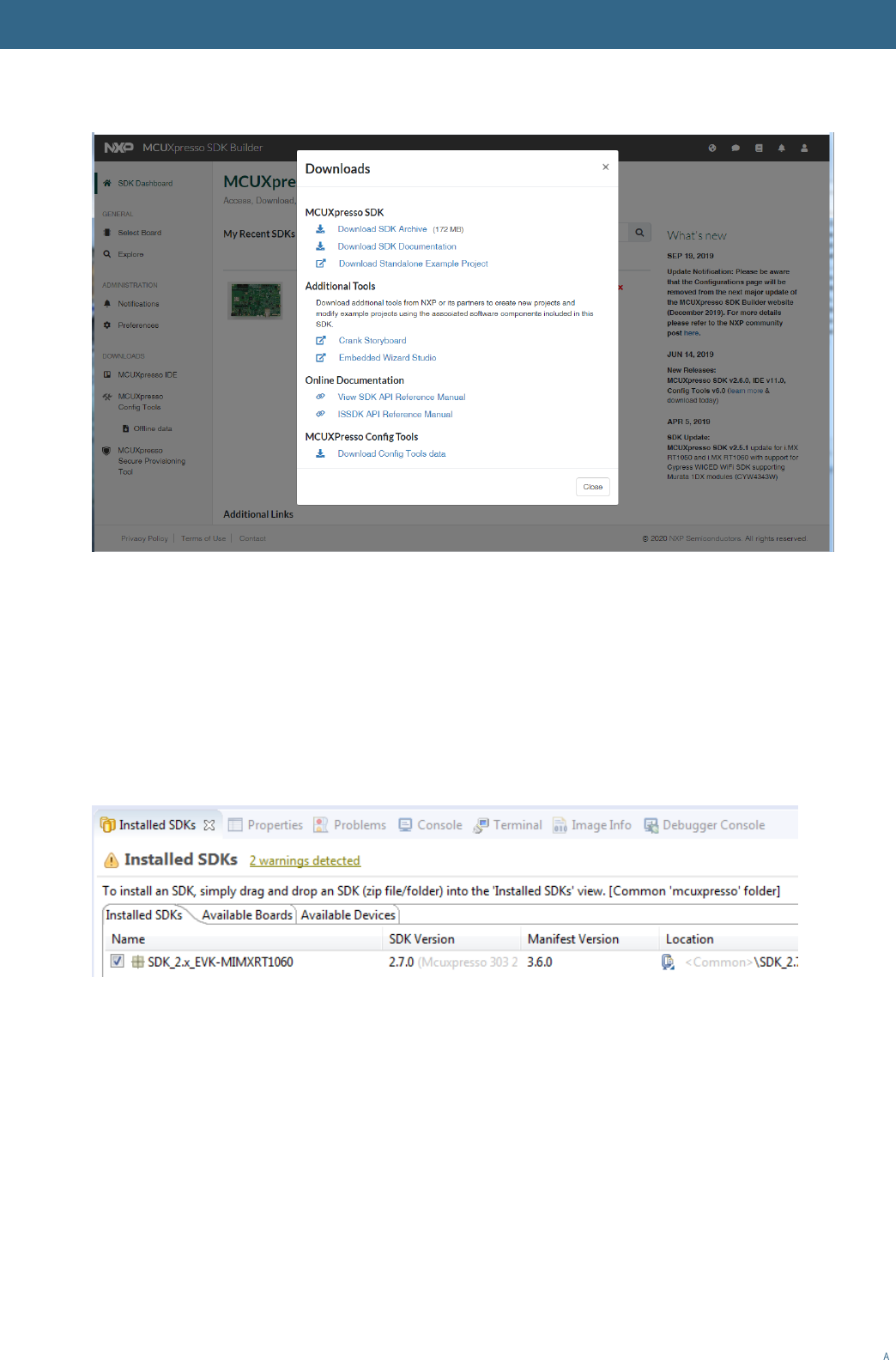

Figure 6 – MCUXpresso SDK Builder - SDK Downloads

Save the file on your computer. Note the download location. As of January 2020, the file name is

SDK_2.7.0_EVK-MIMXRT1060.zip but the version number (i.e., 2.7.0) will likely increment

over time.

The SDK needs to be installed in MCUXpresso before it can be used. To do that start MCUXpresso

and then drag-n-drop the SDK archive (SDK_2.7.0_EVK-MIMXRT1060.zip) on to the

"Installed SDKs" tab:

During the installation MCUXpresso will make a copy of the archive that you drag-n-dropped so it is ok

to delete the SDK_2.7.0_EVK-MIMXRT1060.zip afterwards if you don't need it for one of

the other IDEs.

3.2 Step #2: Mount M.2 Module

Make sure the iMX RT Developer's Kit is powered off and then mount the M.2 Module, as illustrated in

the picture below:

Getting Started with M.2 Modules and i.MX RT

Page 12

Rev A

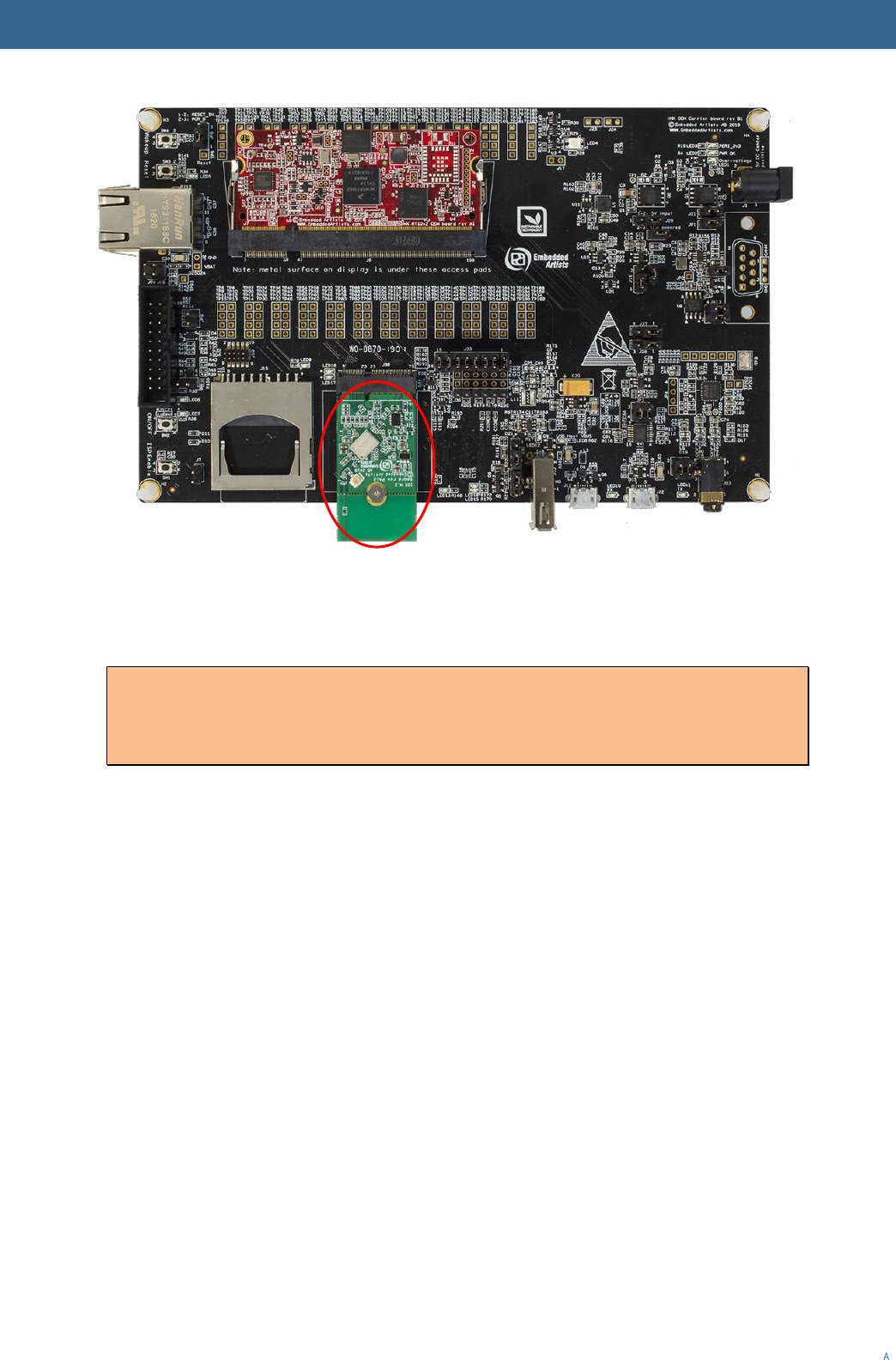

Figure 1 – M.2 Module on iMX OEM Carrier Board

Do not put too much force/pressure on the M2 screw (into the M.2 connector stand-off) so that the

PCB is bent. Bending the PCB too much will damage the board!

Use your fingers on the bottom side (while screwing) to give a counter-force, keeping the PCB

straight.

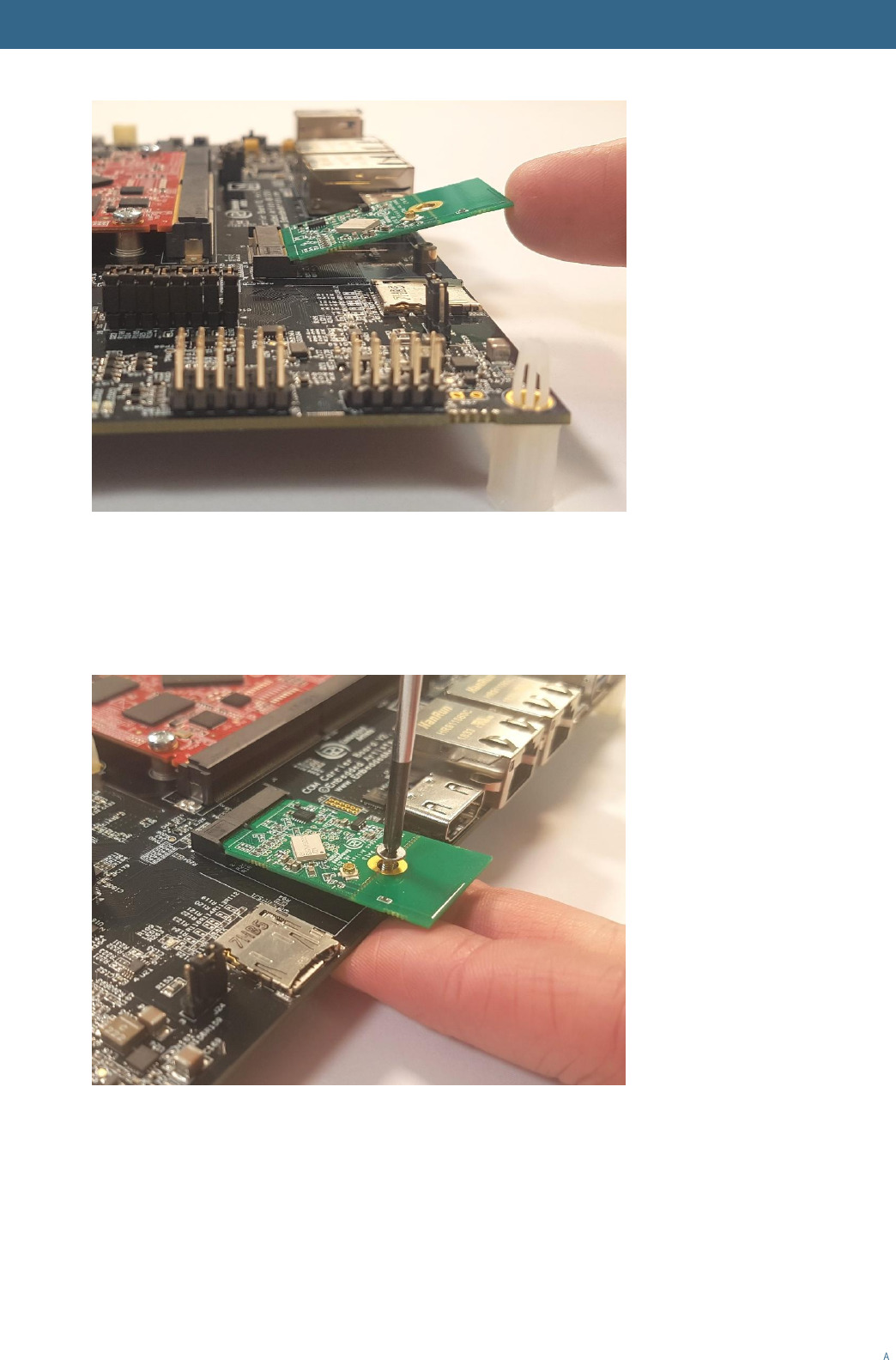

The picture below illustrates the typical angle (about 25 degrees) to use when inserting the M.2 module

into the connector. The pictures illustrate another carrier board, but the principle is exactly the same,

regardless of carrier board.

Getting Started with M.2 Modules and i.MX RT

Page 13

Rev A

Figure 2 – M.2 Module on Carrier Board

The picture below illustrates how to use two fingers, placed under the grounding stand-off, to avoid

bending the board. Make sure to always use this method to avoid damaging the board.

Figure 3 – M.2 Module on Carrier Board

oQui... ursm ".“an 7. Ere L om '= MCUXpresso [DE - Quickstan Panel £ No project selected ' Cruteot'lnportapmject New prOJECt Import SDK example( rom file system... -oehgympmjed ..E3.ﬂv

Getting Started with M.2 Modules and i.MX RT

Page 14

Rev A

3.3 Step #3: Example Application - iperf

As of January 2020 there are five Wi-Fi example applications in the SDK:

 wiced_iperf_43012 - this is a performance test application for the 1LV M.2 module

 wiced_iperf_4343W - this is a performance test application for the 1DX M.2 module

 wiced_iperf3_4343W - this is a performance test application for the 1DX M.2 module. This

example is only available in the SDK for the iMX RT1052 and the functionality/configuration is

the same as for the two other iperf examples (except that it is for the newer iperf3 protocol) so

it will not be covered by this document

 wiced_mfg_test_43012 - this is a special application that is used for RF measurements and it

will not be covered by this document

 wiced_mfg_test_4343W - this is a special application that is used for RF measurements and it

will not be covered by this document

Running one of the Wi-Fi examples requires the following steps:

1. Import the example application and change flash configuration

2. Patch the example code

3. Configure the example for your environment (e.g. SSID + password for your network)

4. Compile and debug/run

3.3.1 Import wiced-iperf

The following steps will guide you through opening the wiced-iperf application from the SDK.

1. Install the SDK as described in section 3.1 if you have not done so already

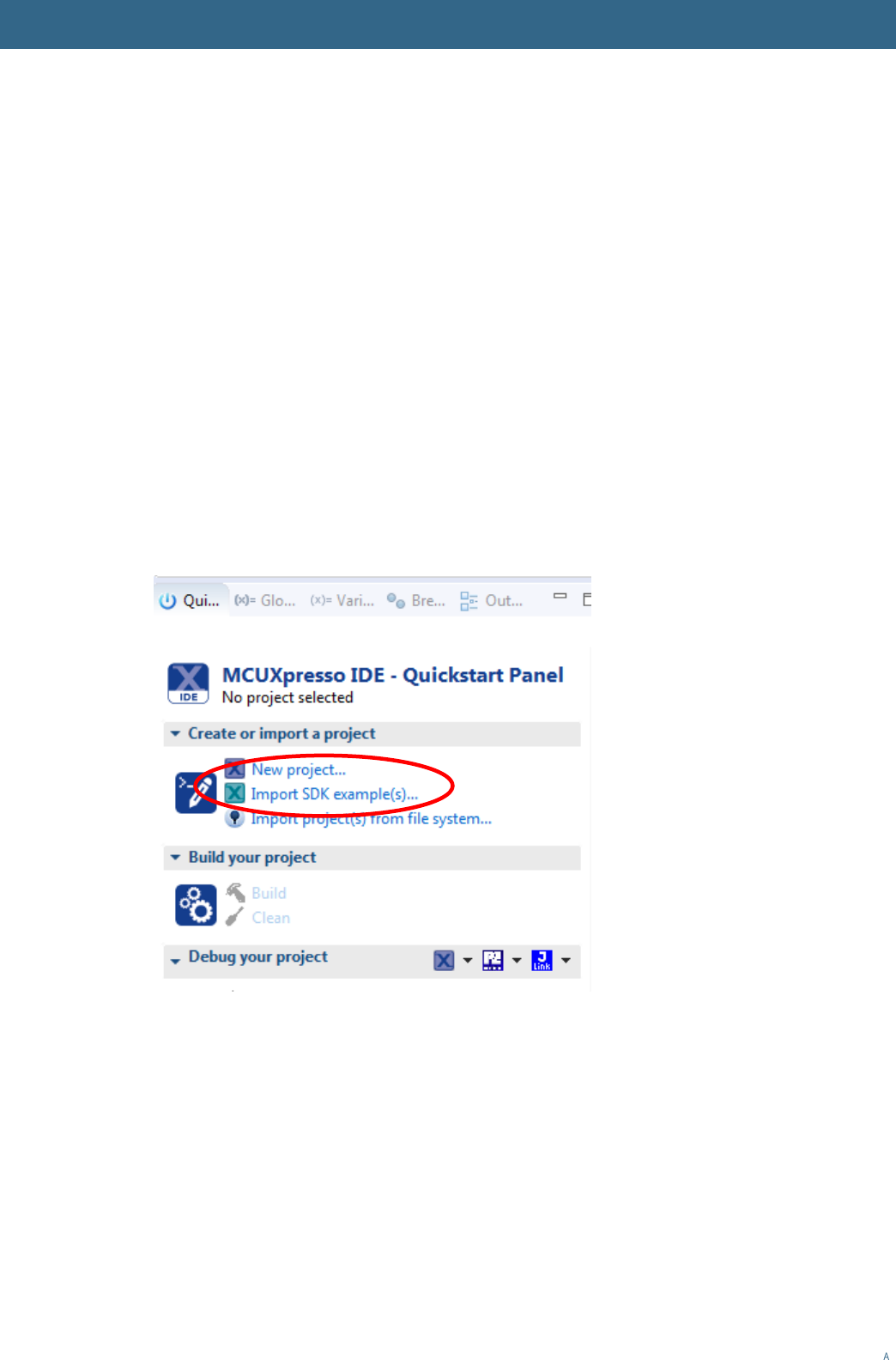

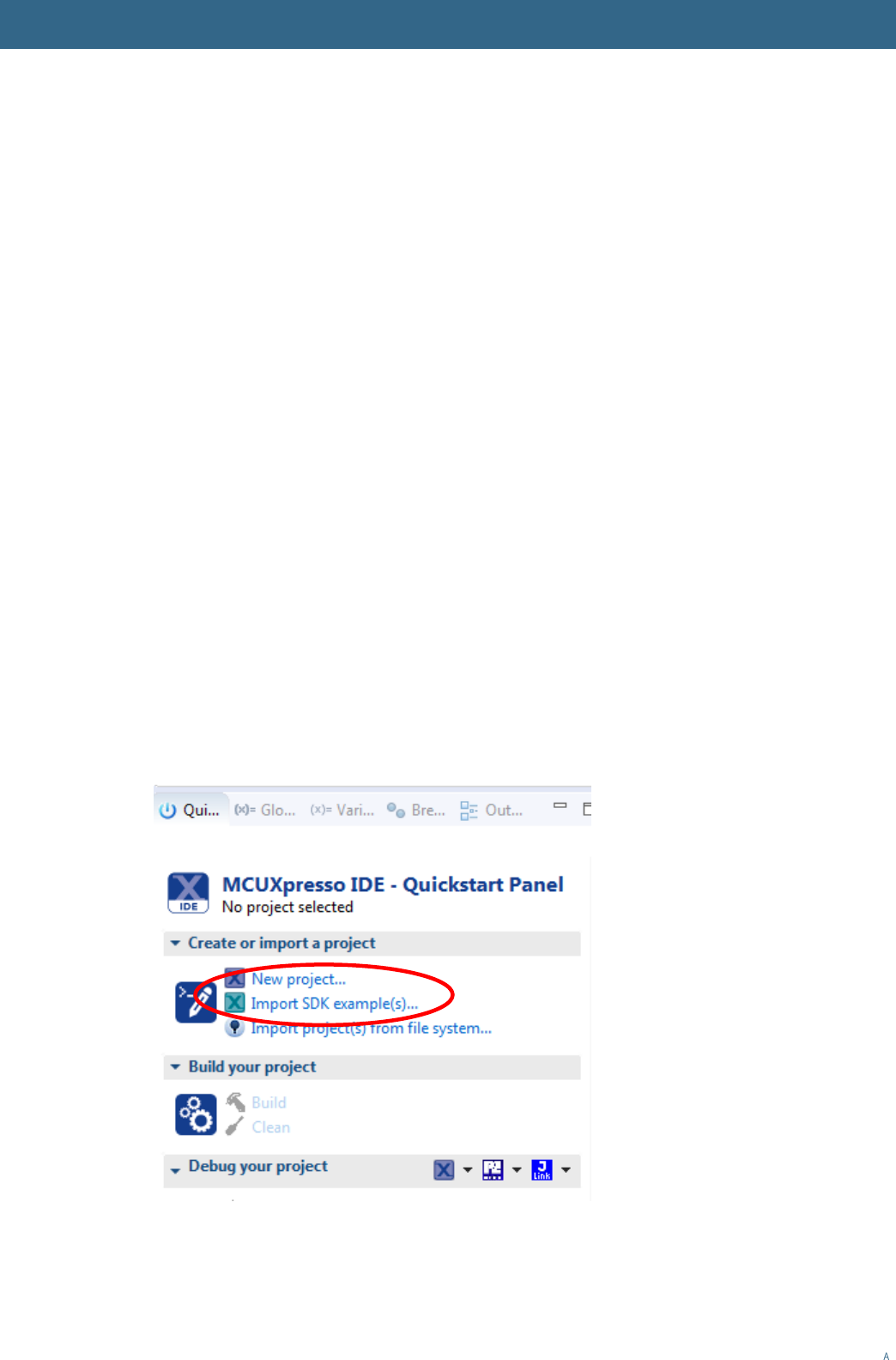

2. Click the "Import SDK example(s)…" link in the Quickstart Panel

Select the MIMXRT1060 and evklmxrthGD Click Next 10 o to lhe ro'ect selector. ﬂaw WWWWWMW Mpg I ma ud/allkvlmnekdlm We «mum, lilﬁlm ‘ _ mm“ [M M: Wm ”New m... mmmmmmmmu ‘‘‘‘‘ m .mwmmm m WWWWW mwmmmm

Getting Started with M.2 Modules and i.MX RT

Page 15

Rev A

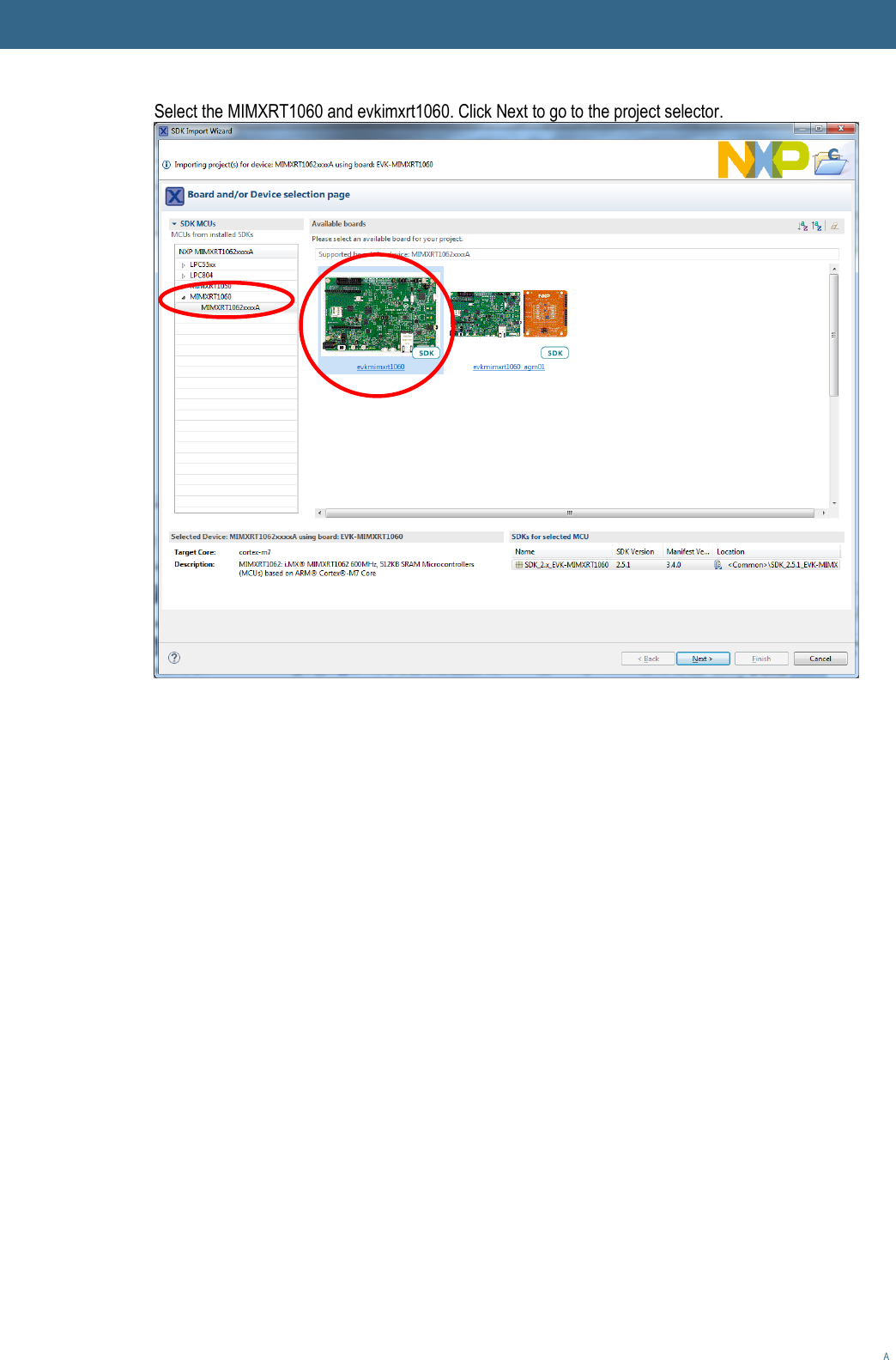

3. Select the MIMXRT1060 and evkimxrt1060. Click Next to go to the project selector.

Select me wiced_iperf example and make sure 10 swimh 1mm Semihos Debu Console men click Nexi to o to the Advanced Senin 5 Pa e 4mmmﬁﬁﬁ NPE I mm my“: Wamm mun-m 1 Mum,“ A “we.“ ~ , numumwmy m lnr‘mnwmm‘mmln mm.- nun-was “mm ("mm :3"me 1N>La1nhhuw “Macaw: 5.. ,(Wﬁmukzs 7mm...“ a.“ WW” Mun » dmu:mv\a “mm. my“: Vll‘Luu-nvk: mew-um Mummx '\ E Mums _ 1 my“. Nowgggbgﬁdvaqged Senings page, look 31 me 1ab|e for the Memory Conﬁguraﬁon: vmumyﬁnfyllh'm w] - M mm mm» manfWKE I W mm W g, ‘7 mm 9.. mm um mm m I | m mm mm w

Getting Started with M.2 Modules and i.MX RT

Page 16

Rev A

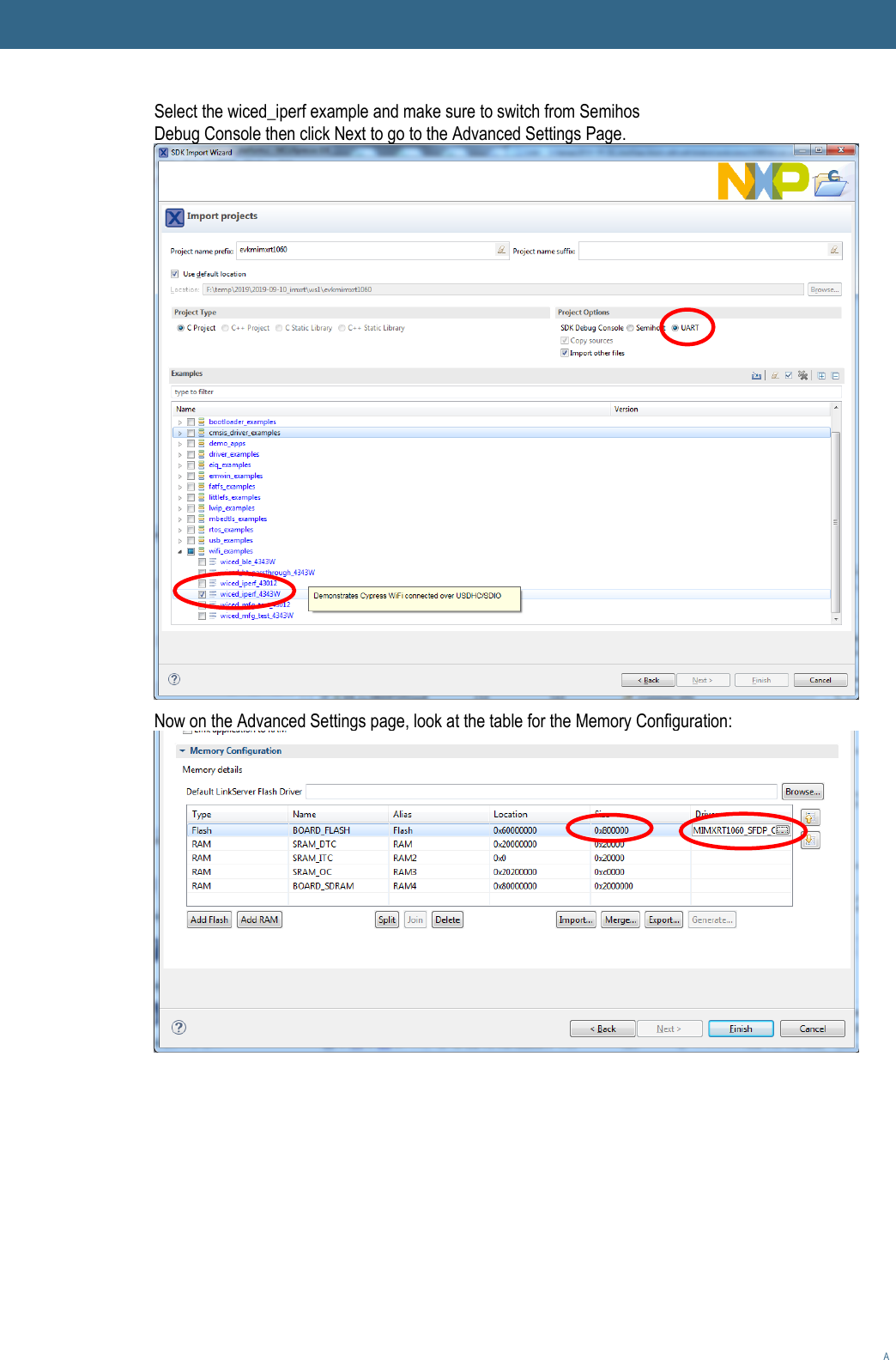

4. Select the wiced_iperf example and make sure to switch from Semihost to UART for the SDK

Debug Console then click Next to go to the Advanced Settings Page.

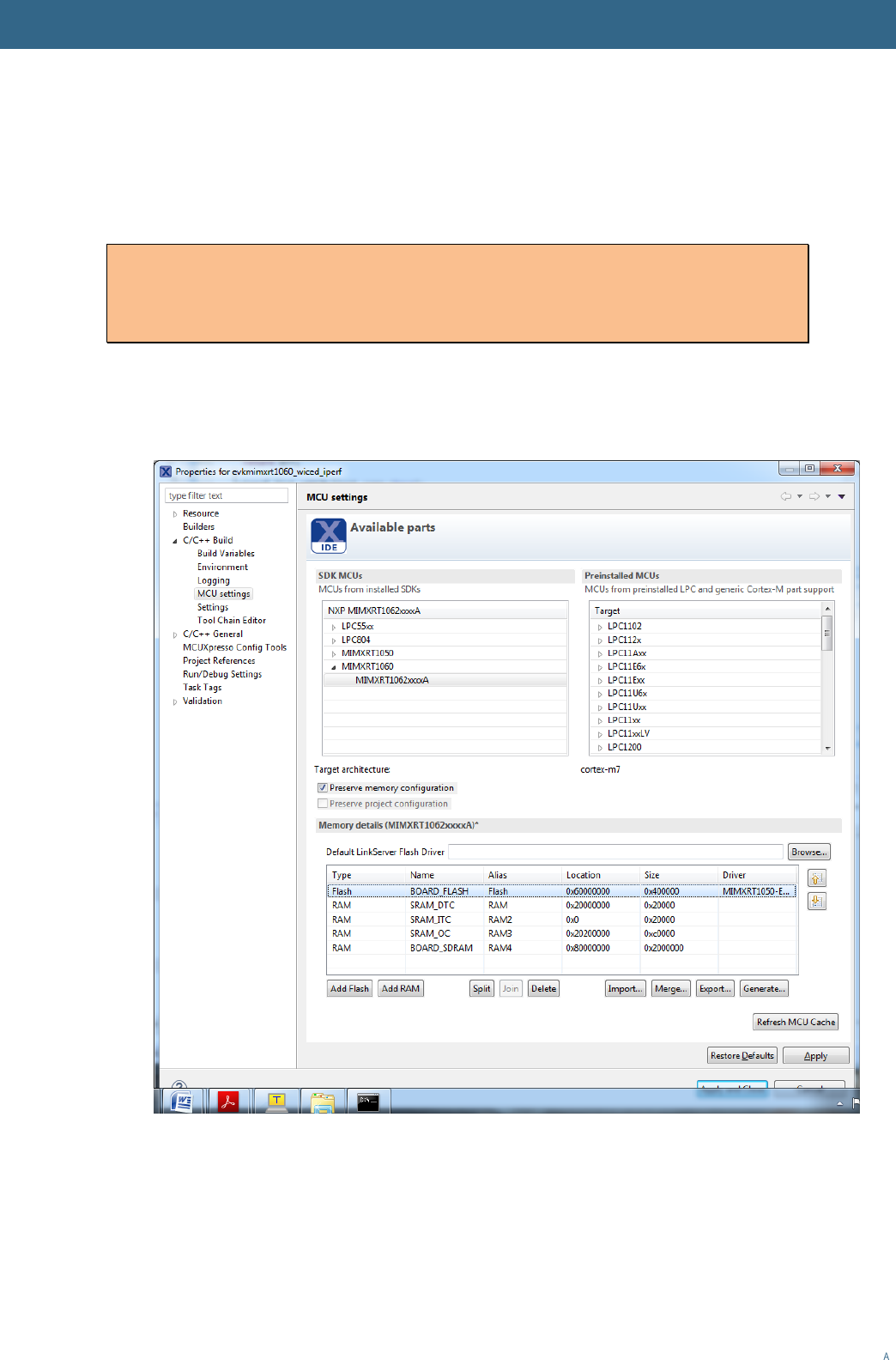

5. Now on the Advanced Settings page, look at the table for the Memory Configuration:

6. Click and change the Size for BOARD_FLASH to 0x00400000 (both iMX RT1052 and

RT1062 have 4MB flash)

7. Click in the table cell for the driver and then on the small button that appears. Change the

Driver for BOARD_FLASH to MIMXRT1050-EcoXiP_ATXP032.cfx using the dropdown

menu.

Tile same ﬂash driver is ueed for both i.MX RT1052 and RT1062. Dmslx‘nmlr I muxpmlx ._ mmmmmr Walsh-imp: . W.m m M m wkmn mm Wk 1! D Margaux v uh." (”m-.9.“- mannisﬁlum “unnummsm‘ "awry duals manmyuw “mamasvmex wulummmimemM mm. — m File to copy Destination Comment pin_mux.c board! Replace existing ﬁle fsl_lpi20.c drivers] New ﬁle fsl_lpi20.h drivers! New ﬁle pcaG41G.c source/ New ﬁle pcaG416.h source/ New ﬁle wwd_platfomi.c wicedl43xxx_Wi-Fi/WICED/plaﬁomthCU/LPCANWD/ Replace existing ﬁle wwd_SDl0.c wiced/43xxx_Wi-Fi/WICED/plalfcmilMCU/LPCANWD/ Replace existing ﬁle

Getting Started with M.2 Modules and i.MX RT

Page 17

Rev A

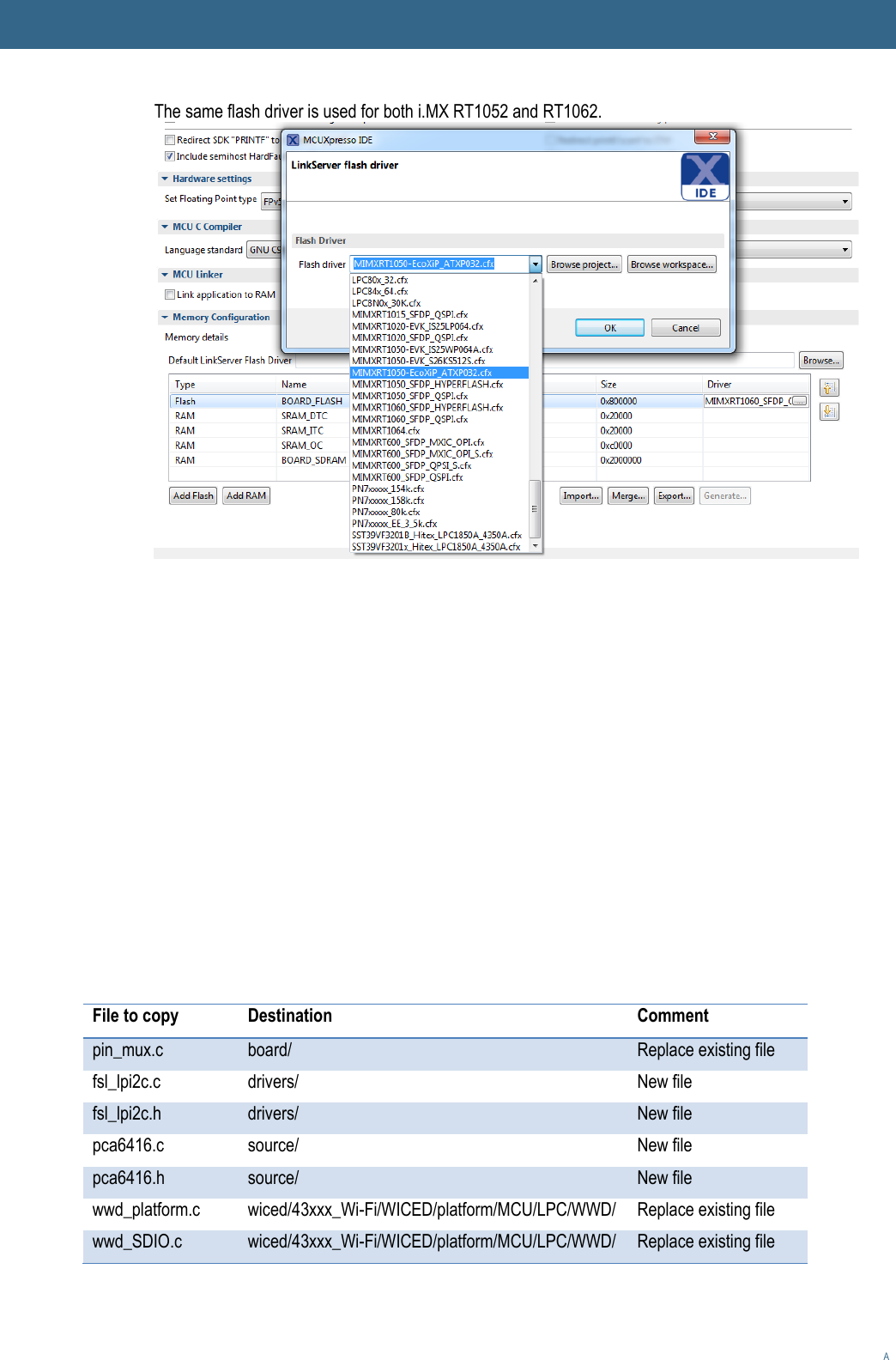

The same flash driver is used for both i.MX RT1052 and RT1062.

8. With all the changes made, click ok and then finish to have MCUXpresso complete the project

setup

3.3.2 Patch

This section describes how to modify the project to be compatible with the features of the iMX RT

Developer's Kit, like the EcoXiP.

The SDK supports hyper flash but the iMX RT Developer's Kit has EcoXip flash from Adesto. Ideally

the EcoXip flash driver should be placed in a new file with _ecoxip in the name but that would require

changes to every project for every IDE in the SDK and that is a huge task. The solution is instead to

replace the file content but keep the filename. This way none of the projects have to be modified.

Download the zip-file from the Resources tab on the product page on Embedded Artists' website. The

name of the file is imxrt1062_ea_files_<date>.zip

Unpack the downloaded zip-file in a temporary directory, for example: c:/temp/ea_files, and

then copy the following files from that directory into the project in MCUXpresso. It is typically easiest to

do this outside of the IDE using for example Windows Explorer.

File to copy

Destination

Comment

pin_mux.c

board/

Replace existing file

fsl_lpi2c.c

drivers/

New file

fsl_lpi2c.h

drivers/

New file

pca6416.c

source/

New file

pca6416.h

source/

New file

wwd_platform.c

wiced/43xxx_Wi-Fi/WICED/platform/MCU/LPC/WWD/

Replace existing file

wwd_SDIO.c

wiced/43xxx_Wi-Fi/WICED/platform/MCU/LPC/WWD/

Replace existing file

evkmimxrt1060_ﬁe xip/ Replace existing ﬁle Kmmmmmwhmmmtmmmmmmm jmvmm mvsvg‘c", ‘11: travkvjaarvgaﬂ H'E‘khl’ n .1 U A. «ath- JJ uAum.“ and: :1 __ W, n ‘ W 1% m = a m “mmm m m M I v ‘7 ﬁsj‘m'tm“ 4 e Mnmlullﬂﬁ),wxm iyuuww (Dem-p . I 25 Definitions )amxjm 2.; , ) m m 3., >ﬁcu§s ‘u 1’ (mm Mm mm"; ., \wmm :2 an.“ mufﬁn) B 33 Meﬁn: HE’SSID "m iwf‘ > F “a" n ma" ) m 35 mm: :5 mm; mrI rm )6“ 17 mm": m gm ‘wxvanansmsa' \ 43 mm 2 w 39 > " " K m nit-dd urtiximrn'v - w m n ma... mgmm mczoismwimiuxmjsx [, m MW .2 mm “mm”, ,,, ‘11-). . m . up.“ 1 1 F K . mum my“ m,- E .5 mm; mrliviuwmn “ W‘ «5 Mtfln: Inn, 7mm) gm... .7 mm > s m u; gm. a mm": mm, gum 'IszmssJJ' in” 5. um... um, 34mm 455,255 a a' 51 ’b‘h‘ SZ /' mgr! fih((d Duramt(r3 'l 53 so Iifndz‘ IvEnFiszmewnEss 55 mm: xrwgmcumsss "191.153.1401‘ 5:, mm

Getting Started with M.2 Modules and i.MX RT

Page 18

Rev A

evkmimxrt1060_fle

xspi_nor_config.c

xip/

Replace existing file

After copying the files into the project the IDE must be told to look for the new files. In MCUXpresso

this is done by right clicking the project and selecting Refresh in the menu.

3.3.3 Configure the Example

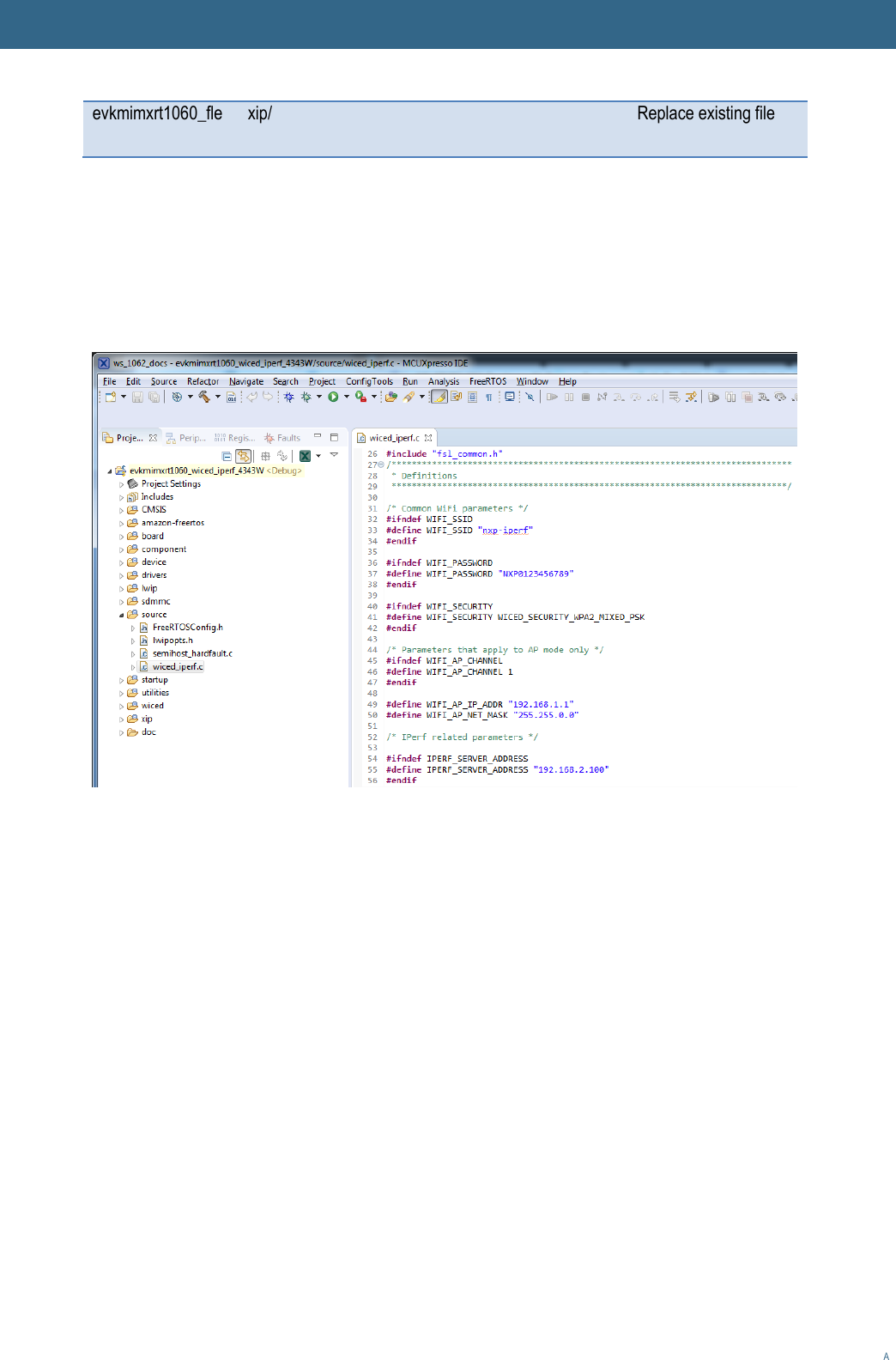

Before the wiced_iperf example can be used some settings must be changed to allow it to find and

connect to your network. These settings are found near the top of the wiced_iperf.c file and looks like

this:

Change the WIFI_SSID, WIFI_PASSWORD and WIFI_SECURITY to match your network.

Change the IPERF_SERVER_ADDRESS to the server you want to test against. This option will be

explained more in detail later but it is good to know where the setting is in the code.

Click Build in the Quickslarl Panel o Quin“ M-be. (WV-Ii... 0. mu. $ om. =' l MCUXpresso [DE - Quicksmn Panel ms ijm: zwhninmuosmwkaajpm [Debug] Vﬂeﬂeu‘lllpoﬂapmied > I New pvojecl... I Impon SDK :xample(s)u. 3 lmpon prejecﬂs) from file system... v main-rpm (5an an .ndngymrmjm .vmvﬂ. Click the "Debug" butlon in me Quickstarl Panel to download Q) Quk... oa= Glob... :x>= Vui... 0. Rm... :5 amt. .2 l MCUXpresso [DE - Quickstan Panel m Projed: ahnimxnloﬂkaedjpd [Debug] v Cram or inpm a puject I New pmjeﬂ... I Impnn SDK example“)... 3 Import projliﬂs) horn in: symm... v napalm ﬂ Bulld 1 Clean - nah-Jpnymjm

Getting Started with M.2 Modules and i.MX RT

Page 19

Rev A

3.3.4 Compile and Run/Debug

To download and run the application, perform these steps:

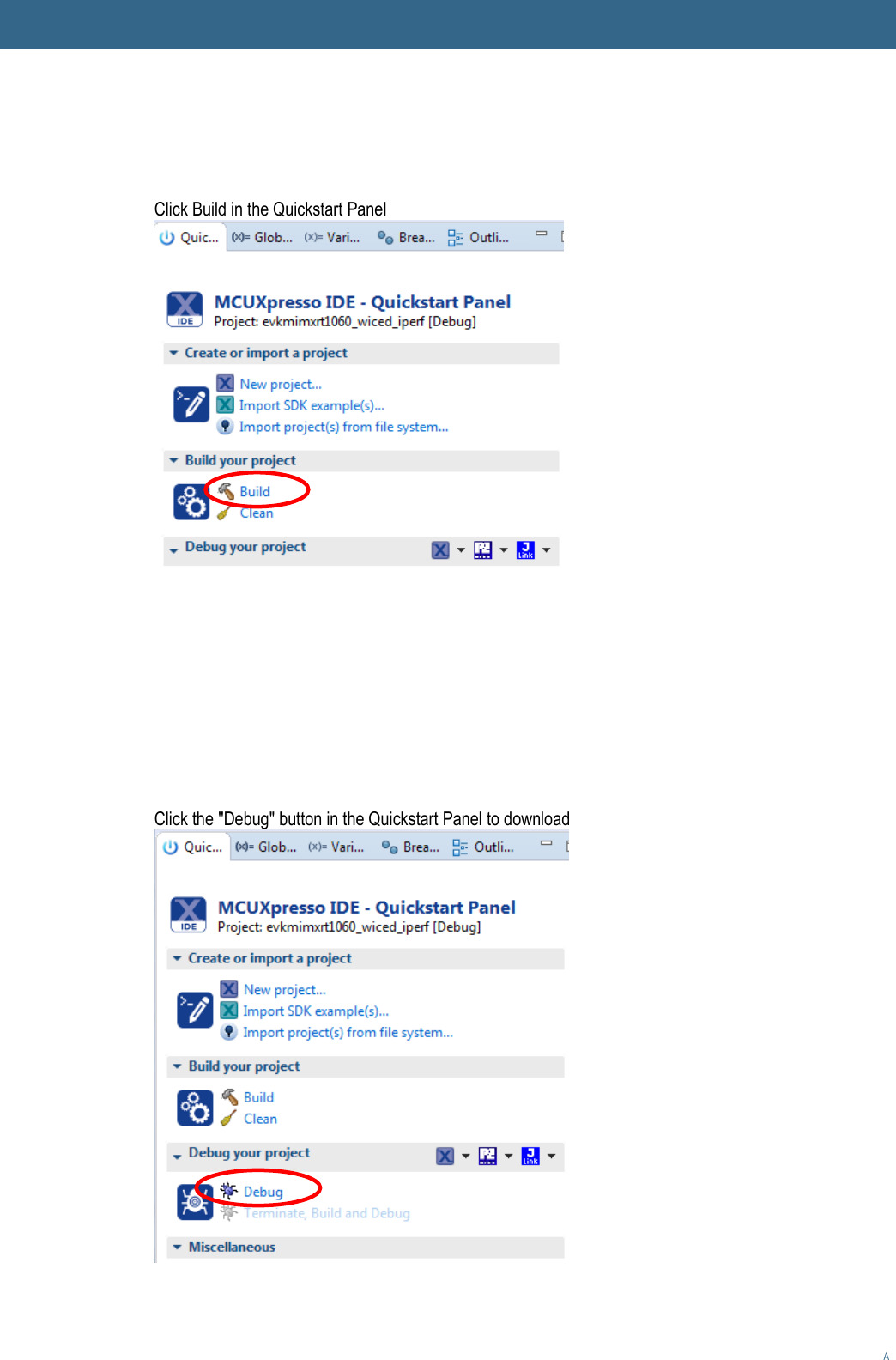

1. Click Build in the Quickstart Panel

2. The program builds without errors

3. Connect the debug probe (LPC-Link2, ULINK2, J-LINK, etc.) to development platform to your

PC via USB cable. See chapter 4 for details how to connect the debug probe.

4. Open the terminal application on the PC, such as TeraTerm or PuTTY, and connect to the

debug serial port number. Configure the terminal with 115200 baud, 8N1.

You can alter the baud rate be searching for the reference

BOARD_DEBUG_UART_BAUDRATE variable in file: board.h

5. Click the "Debug" button in the Quickstart Panel to download the application to the target.

Run the code by clicking the "Resume" button to Help D'fENx) U» ml; 3.03.) E COM49:115200bps - Tera Term - MBED VT file Edit §elup C_ontml mum. ﬁelp a: c Access point made : Client made Enter made: «at«at«aa«a«at«at«aawaithinnnnnaaaaaawwwwaaaaaaa IPERF example «tatttttttttttttttttaaaallannananntttttttttteeee Please select WiFi operation mode: [er on the local network (https://iperf.fr/iperf—down\oad.ghg hugs:I!)gerf.fr/igerf—servers.ghp hrtps:l/iperur/igerf-download.ghg : TCP 2: TCP 3: TCP 4: TCP 5: UDP 6: UDP 7: UDP : UDP Enter made Please select one server client client client server client client client Euccessfully joined: VSGl I etting IP address from DHCP server I IPv9 Address got from DHCP : 192.168.50.212 of the following modes to run IPERF with: mode (RX only mode (TX only dual mode (TX tradeoff mode mode (Rx only mode (IX only dual mode (TX tradeoff mode number: I test) test) and RX in parallel) (TX and Rx sequentially) test) test) and Rx in parallel) (TX and RX sequentially)

Getting Started with M.2 Modules and i.MX RT

Page 20

Rev A

6. The application is then downloaded to the target and automatically runs to the main() function.

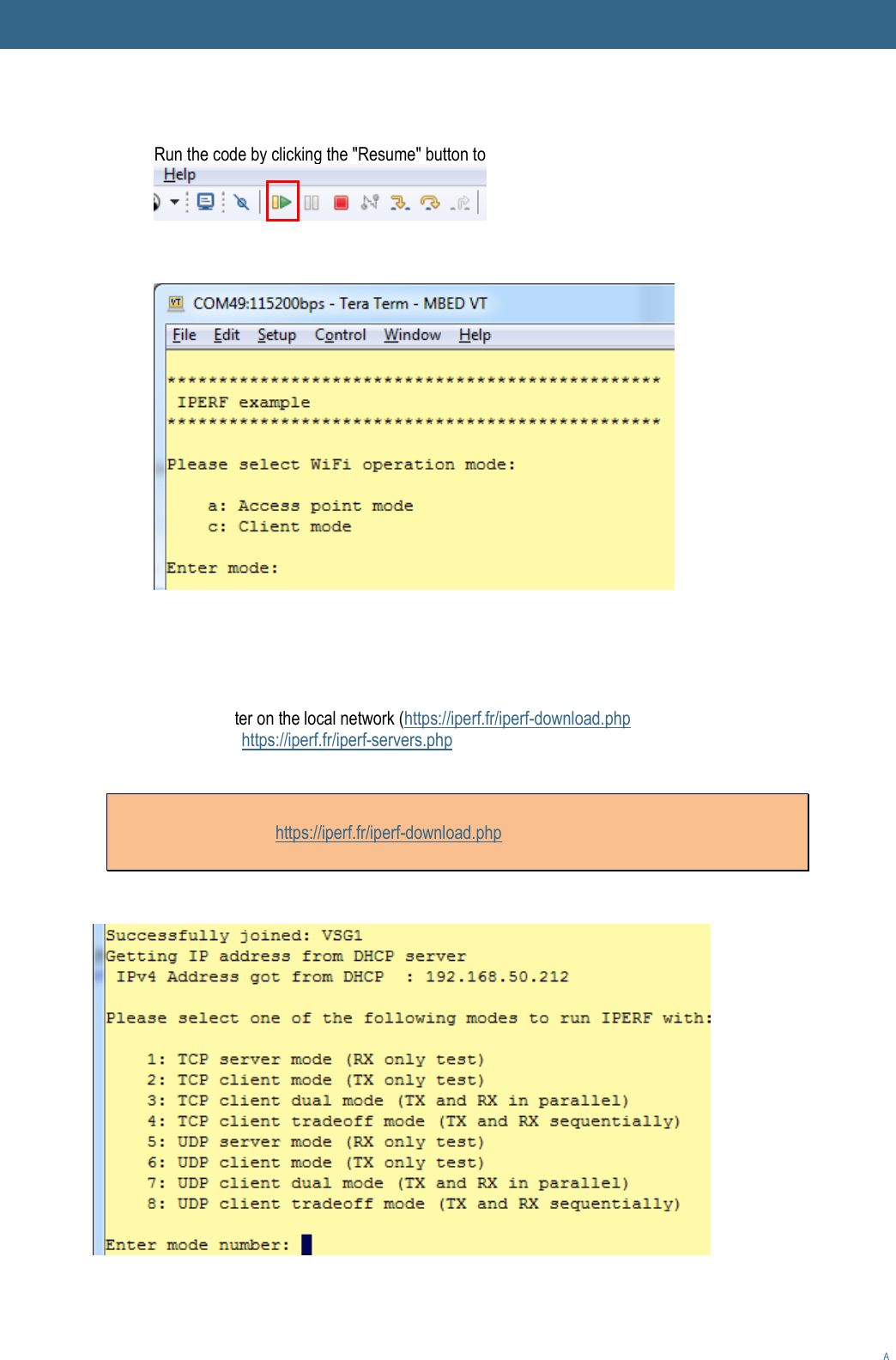

7. Run the code by clicking the "Resume" button to start the application.

8. The wiced_iperf application is now running and a banner is displayed on the terminal. If this is

not true, check your terminal settings and connections. Select Client mode by typing c.

3.3.5 Explanation of the example

Ping is a great way to test if the hardware is connected to the network, or not, but to really test the

network interface it is better to use a program like iperf. Iperf requires both a server and a client to

run the tests. The client is typically run on the iMX RT1062 board and the server software can either be

installed on a computer on the local network (https://iperf.fr/iperf-download.php) or one of the online

servers can be used (https://iperf.fr/iperf-servers.php). It is also possible to run the server on the iMX

RT1062 and the client on a PC in the same local network.

Make sure to select the latest version of the 2.0.* branch (2.0.9 as of May 2019) when downloading

the iperf software from https://iperf.fr/iperf-download.php. Version 3.* is not supported by the demo

code and it will not work as iperf and iperf3 are completely different protocols.

The wiced_iperf example implements eight different modes of testing:

Getting Started with M.2 Modules and i.MX RT

Page 21

Rev A

Mode 1 - Server RX Only

Type a "1" to start server mode. Check the IP number that was assigned (in this case 192.168.50.164

as shown in the image above) and then run the following command on the PC (the program exists for

most common operating systems but is shown here for Windows):

C:\temp> iperf -c 192.168.50.164 -i 2 -t 20 -P 4

The parameters specifies the IP number of the iMX RT1062 board, that a report should be printed

every 2 seconds, that the test will run for 20 seconds and use 4 threads/connections.

After the test completes it will print something like this on the PC:

[SUM] 0.0-20.0 sec 92.5 MBytes 37.3 Mbits/sec

The log from the iMX RT1062 will show something like this for each of the 4 connections after the test

completes:

-------------------------------------------------

TCP_DONE_SERVER (RX)

Local address : 192.168.50.164 Port 5001

Remote address : 192.168.50.2 Port 43036

Bytes Transferred 24248344

Duration (ms) 27485

Bandwidth (kbitpsec) 7056

-------------------------------------------------

The information shown on the target is not entirely correct. It shows the correct number of bytes

transferred but does not calculate the time correctly. As seen above the time is 27485ms for a test

that takes 20 seconds. The wiced_iperf code measures time from the connection is established and

not from the first byte is sent over the connection. Depending on the PC software it may take extra

time (in this case roughly 7.5 seconds) to setup the test and this should not be included in the test

result but it is. When checking the result look at the PC instead of the target (i.e., the iMX RT1062).

Press SPACE to return to the main menu to run this or another test again.

Mode 2 - Client TX Only

Before running this test the PC must be running the server:

C:\temp> iperf -s

------------------------------------------------------------

Server listening on TCP port 5001

TCP window size: 208 KByte (default)

------------------------------------------------------------

Type a "2" to start client mode. It will run the tests against the server IP number configured in section

3.3.3 . Make sure that matches the IP number of the PC running the server.

After the test completes (it takes 10 seconds) it will print the following:

-------------------------------------------------

TCP_DONE_CLIENT (TX)

Local address : 192.168.50.164 Port 49153

Getting Started with M.2 Modules and i.MX RT

Page 22

Rev A

Remote address : 192.168.50.2 Port 5001

Bytes Transferred 23600924

Duration (ms) 10000

Bandwidth (kbitpsec) 18880

Press SPACE to return to the main menu to run this or another test again.

Mode 3 - Client RX+TX in Parallel

Before running this test the PC must be running the server:

C:\temp> iperf -s

------------------------------------------------------------

Server listening on TCP port 5001

TCP window size: 208 KByte (default)

------------------------------------------------------------

Type a "3" to start in client mode. It will run the tests against the server IP number configured in section

3.3.3 . Make sure that matches the IP number of the PC running the server.

After the test completes (it takes 10 seconds) it will print the following:

-------------------------------------------------

TCP_DONE_CLIENT (TX)

Local address : 192.168.50.164 Port 49153

Remote address : 192.168.50.2 Port 5001

Bytes Transferred 16591464

Duration (ms) 10000

Bandwidth (kbitpsec) 13272

-------------------------------------------------

TCP_DONE_SERVER (RX)

Local address : 192.168.50.164 Port 5001

Remote address : 192.168.50.2 Port 43052

Bytes Transferred 19004004

Duration (ms) 10520

Bandwidth (kbitpsec) 14448

-------------------------------------------------

Press SPACE to return to the main menu to run this or another test again.

Mode 4 - Client RX+TX in Sequence

Before running this test the PC must be running the server:

C:\temp> iperf -s

------------------------------------------------------------

Server listening on TCP port 5001

TCP window size: 208 KByte (default)

------------------------------------------------------------

Type a "4" to start in client mode. It will run the tests against the server IP number configured in section

3.3.3 . Make sure that matches the IP number of the PC running the server.

After the test completes (it takes 10 seconds) it will print the following:

Getting Started with M.2 Modules and i.MX RT

Page 23

Rev A

-------------------------------------------------

TCP_DONE_CLIENT (TX)

Local address : 192.168.50.164 Port 49153

Remote address : 192.168.50.2 Port 5001

Bytes Transferred 23441784

Duration (ms) 10000

Bandwidth (kbitpsec) 18752

-------------------------------------------------

TCP_DONE_SERVER (RX)

Local address : 192.168.50.164 Port 5001

Remote address : 192.168.50.2 Port 43054

Bytes Transferred 30276044

Duration (ms) 10005

Bandwidth (kbitpsec) 24208

Press SPACE to return to the main menu to run this or another test again.

Modes 5 to 8 - UDP

The first four modes were for TCP and modes 5 through 8 are for UDP. The tests are run in the same

way except for one thing: the -u option must be used on the PC side to force iperf into UDP mode.

C:\temp> iperf -s -u

------------------------------------------------------------

Server listening on UDP port 5001

Receiving 1470 byte datagrams

UDP buffer size: 208 KByte (default)

------------------------------------------------------------

C:\temp> iperf -u -c 192.168.50.164 -i 2 -t 20 -P 4

3.3.6 Troubleshooting

Some things to check if the application is not working as expected:

 Program not starting after being flashed.

This is typically because either the flash algorithm/flash size was not changed when importing

the project or the project files were not patched.

 The iperf tests fail.

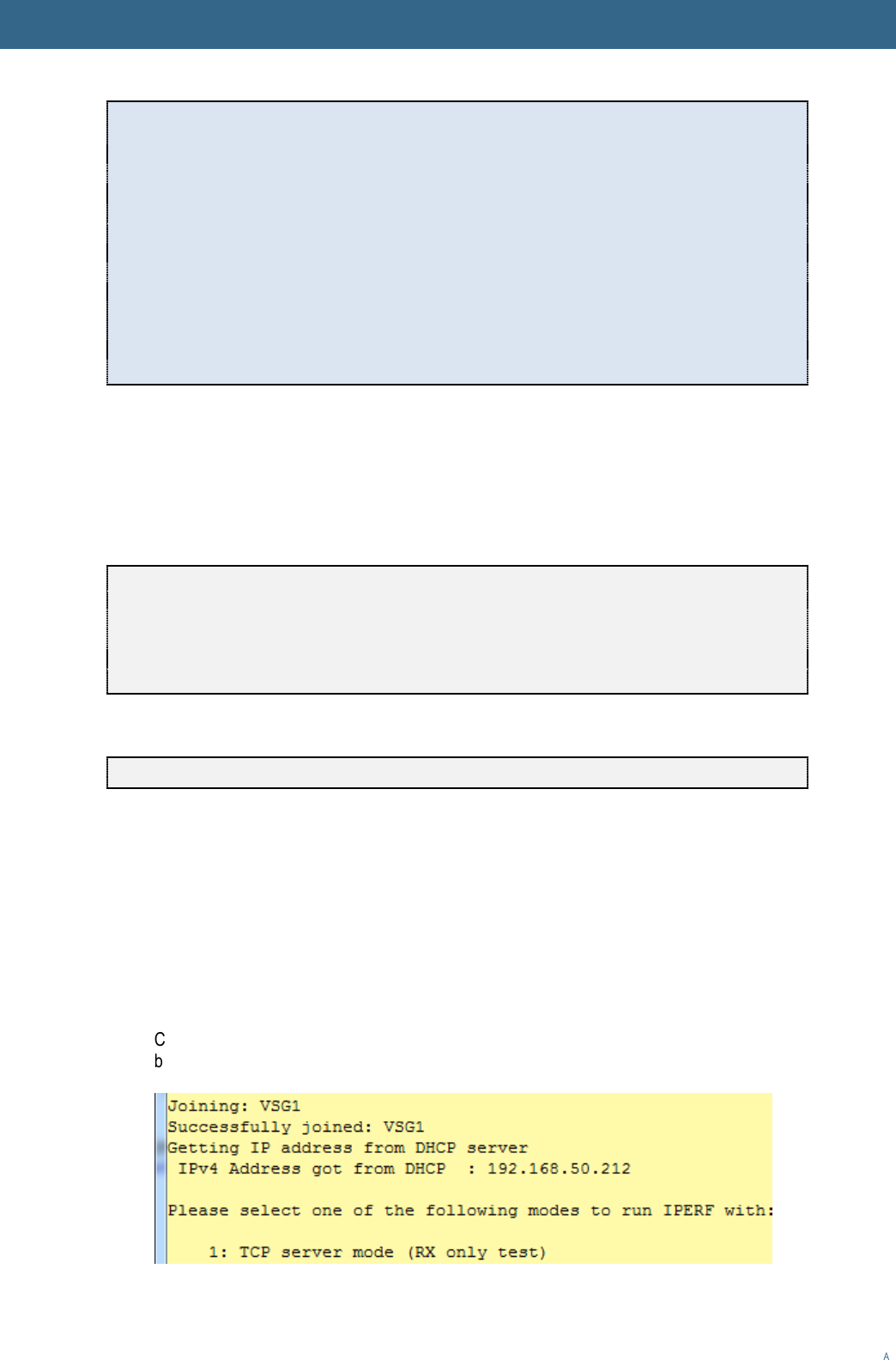

Check that there in actual connection to the (wireless) network. Look for these prints in the

boot log:

i'—__-_-¢—ﬁ_.—.—v - lelSW-Taa'lum-MBEDVT Be [a SIM: W W Help

Getting Started with M.2 Modules and i.MX RT

Page 24

Rev A

In order for the tests to work the "Successfully joined" message must be shown and the board

must have received an IP address from DHCP. If one of those is missing check the SSID

information again (see 3.3.3 ).

 Cannot find M.2 module.

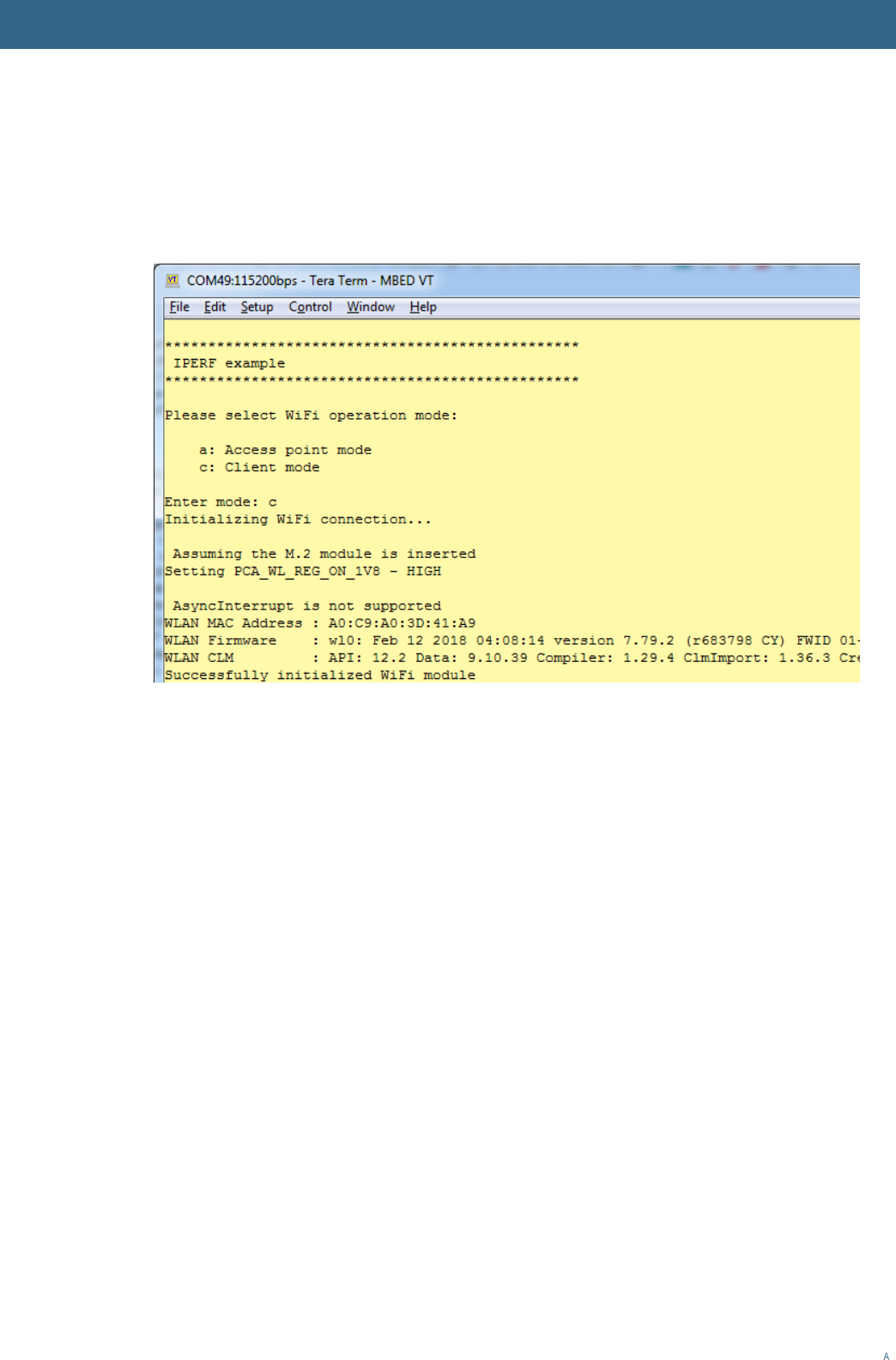

A successful detection of the M.2 module looks like this:

If the M.2 module cannot be detected, check that the module is correctly inserted and that all

patches were applied as specified in section 3.3.2 Make sure that the project matches the M.2

module - the wiced_iperf_43012 is for 1LV and wiced_iperf4343W is for 1DX.

 Firewalls

As with all network tests make sure that the firewall on the test PC is not stopping the traffic

from the iMX RT1062 board. This is probably not a problem when running the iperf client on

the PC as it is outgoing traffic, however when running the iperf server it expects incoming

connections and those may be blocked by a firewall.

 Throughput

The exact speed that can be achieved during testing is heavily dependent on the test

environment including but not limited to:

o Use of onboard antenna vs external antenna

o Wireless router performance

o Distance between iMX RT1062 and router

o PC that is running the software

o Usage of the 2.4GHz/5GHz band by others

3.4 Step #4: Example Application - Bluetooth

As of January 2020 there are two Bluetooth example applications in the SDK:

oQui... ursm ".“an n Ere L MCUXpresso [DE - Quickstan Panel £ No project selected ' Cruteot'lnportapmject New pro,e Import SDK example(s) -oehgympmjed ..E3.ﬂv

Getting Started with M.2 Modules and i.MX RT

Page 25

Rev A

 wiced_ble_4343W - this is a Bluetooth Low Energy (BLE) + Wi-Fi application for the 1DX M.2

module

 wiced_bt_passthrough_4343W - this application allows direct communication over UART

between the 1DX M.2 module and a PC. It requires the CyBluetool from Cypress to work and

it will not be covered by this document

Running one of the examples requires the following steps:

1. Import the example application and change flash configuration

2. Patch the example code

3. Configure the example for your environment (e.g. SSID + password for your network)

4. Compile and debug/run

3.4.1 Import wiced_ble_4343W

The following steps will guide you through opening the wiced_ble_4343W application from the SDK.

1. Install the SDK as described in section 3.1 if you have not done so already

2. Click the "Import SDK example(s)…" link in the Quickstart Panel

Getting Started with M.2 Modules and i.MX RT

Page 26

Rev A

3. Select the MIMXRT1060 and evkimxrt1060. Click Next to go to the project selector.

Select the wiced_b|e_4343W example and make sure to switch irom Semihostt the SDK Deb Console then click Next to o to the Advanced Se I u...“ my.“ Wu” mm.» 1 WW.“ 1‘ , numulnwmy m mimwimmm may nun-was “m (.7 mm :3"me 1N>La1nhhuw summit 5.. , m» was 7mm...“ Mun » Now on the Advanged Settings page, look at the table for the Memory Conﬁguration: van-gm . mm mammm m . W h “.5 m A , 5 I Huh minis" M mill!) will!) mnwsrw

Getting Started with M.2 Modules and i.MX RT

Page 27

Rev A

4. Select the wiced_ble_4343W example and make sure to switch from Semihost to UART for

the SDK Debug Console then click Next to go to the Advanced Settings Page.

5. Now on the Advanced Settings page, look at the table for the Memory Configuration:

6. Click and change the Size for BOARD_FLASH to 0x00400000 (both iMX RT1052 and

RT1062 have 4MB flash)

7. Click in the table cell for the driver and then on the small button that appears. Change the

Driver for BOARD_FLASH to MIMXRT1050-EcoXiP_ATXP032.cfx using the dropdown

menu.

Getting Started with M.2 Modules and i.MX RT

Page 28

Rev A

The same flash driver is used for both i.MX RT1052 and RT1062.

8. With all the changes made, click ok and then finish to have MCUXpresso complete the project

setup

3.4.2 Patch

This section describes how to modify the project to be compatible with the features of the iMX RT

Developer's Kit, like the EcoXiP.

The SDK supports hyper flash but the iMX RT Developer's Kit has EcoXip flash from Adesto. Ideally

the EcoXip flash driver should be placed in a new file with _ecoxip in the name but that would require

changes to every project for every IDE in the SDK and that is a huge task. The solution is instead to

replace the file content but keep the filename. This way none of the projects have to be modified.

Download the zip-file from the Resources tab on the product page on Embedded Artists' website. The

name of the file is imxrt1062_ea_files_<date>.zip

Unpack the downloaded zip-file in a temporary directory, for example: c:/temp/ea_files, and

then copy the following files from that directory into the project in MCUXpresso. It is typically easiest to

do this outside of the IDE using for example Windows Explorer.

File to copy

Destination

Comment

pin_mux_ble.c

board/pin_mux.c

Replace existing file

fsl_lpi2c.c

drivers/

New file

fsl_lpi2c.h

drivers/

New file

pca6416.c

source/

New file

pca6416.h

source/

New file

wwd_platform.c

wiced/43xxx_Wi-Fi/WICED/platform/MCU/LPC/WWD/

Replace existing file

wwd_SDIO.c

wiced/43xxx_Wi-Fi/WICED/platform/MCU/LPC/WWD/

Replace existing file

platform_imxrt.c evkmimxrt1060_lle xip/ wlced/43xxx_BLE/wiced_blﬁmxrumrll Replace existing ﬁle Replace existing ﬁle m “was.“ .ﬁ'lallu Svsvm‘::>:‘o~.a‘\ln>nm: =5 “van“: “a: w (y . a Masaydkgunmamp . l» . rm Sal-h; l, g M l» 3 mm l, w an,“ l» a mum l w miss l» 3 mm l w I»... l» w «2-wa- l i am. l» w m l» a as l» w Imp l» a ,4...“ . s m...“ l @ beastm‘ l @ magma”). @ rmm @ W IE puma]: @ pawn. IE ”ninth-Hm @ mime V a will,“ l, w m, l» a m I la nun-me ‘bkjlelloisensorvh mammmmnmmvmmmmwmm Heme? flaunijx 111.11“me B minim: n ,7 1- 1 - (mum in mm, mm Samar-mm, m - “may. meme m - m ring meme - sPoxVLinnerdgmilkr: usuaxluux lune; ,, .............................................................................., n u mam. "Mp/«pipm 15 mam. "hearth" )5 mam "Wm" n mum "mﬁam" m mum "unnumJ-nmm" 19 mum '15]J:bug_(ansole. 11 n mum. WWW”- 2; mam. wwgmisw 2o mam. "abmnm 2;,,............................................................................... 25 'Dtlinilirm: Z7 .............................................................................., 25 “cu“ w 35m "nu" 29 men“ ASS'NlPﬁ1234567EE" 3a Mum: [c ucmgxuummmemgm 31 3,,,............................................................................... 33 - vmmyw ;. ..............................................................................,

Getting Started with M.2 Modules and i.MX RT

Page 29

Rev A

platform_imxrt.c

wiced/43xxx_BLE/wiced_bt/imxrt_port/

Replace existing file

evkmimxrt1060_fle

xspi_nor_config.c

xip/

Replace existing file

After copying the files into the project the IDE must be told to look for the new files. In MCUXpresso

this is done by right clicking the project and selecting Refresh in the menu.

3.4.3 Configure the Example

Before the wiced_ble_4343W example can be used some settings must be changed to allow it to find

and connect to your network. These settings are found near the top of the wiced_ble.c file and looks

like this:

Change the AP_SSID, AP_PASS and AP_SEC to match your network.

Getting Started with M.2 Modules and i.MX RT

Page 30

Rev A

3.4.4 Compile and Run/Debug

To download and run the application, perform these steps:

1. Click Build in the Quickstart Panel

2. The program builds without errors

3. Connect the debug probe (LPC-Link2, ULINK2, J-LINK, etc.) to development platform to your

PC via USB cable. See chapter 4 for details how to connect the debug probe.

4. Open the terminal application on the PC, such as TeraTerm or PuTTY, and connect to the

debug serial port number. Configure the terminal with 115200 baud, 8N1.

You can alter the baud rate be searching for the reference

BOARD_DEBUG_UART_BAUDRATE variable in file: board.h

5. Click the "Debug" button in the Quickstart Panel to download the application to the target.

Run the code by clicking the "Resume" button to Help wgefy‘n» HENEHI @ COM145:115200bp5 - Tera Term < mbed="" vt="" file="" edit="" ﬁelup="" c_ontrnl="" ﬂindow="" ﬂelp="" anan...an...aaaaaaaaaannnunnnnnnnnnnnaaaaaaaannn="" wi—fi="" +="" ble="" example="" acanaan.aantanawawwwwwhhhaukannnnnaaaaaaaaannnnn="" initializing="" wifi="" connection...="" assuming="" the="" m.2="" module="" is="" inserted="" setting="" pca_wl_reg_on_1v8="" —="" high="" asynclnterrupt="" is="" not="" supported="" lan="" mac="" address="" 00:5d:gb:89:eb:76="" lan="" firmware="" v10:="" feb="" 12="" 2018="" 04:08:14="" version="" 7.79.2="" (r="" lan="" clm="" api:="" 12.2="" data:="" 9.10.39="" compiler:="" 1.29.4="" c1="" successfully="" initialized="" wie‘i="" connection="" scanning="" available="" networks.="" .="" .="" scan="" completed="" ’001="" ssid="" :="" guest—544a9e="" nee‘rn="" .="" f:.ei-!h-:a.ai.xﬂ="" channel="" :="" 11="" joining="" :="" vsgl="" successfully="" joined="" :="" vsgl="" getting="" ip="" address="" from="" dhcp="" server="" ipv4="" address="" got="" from="" dhcp="" :="" 192.168.50.83="" initializing="" ble...="" hello="" sensor="" start="" minimum="" ever="" free="" heap="" size:="" 34352="" setting="" pca_bi_reg_0n_1ve="" —="" high="" hello_sensar_app1ication_init="" wiced_bt_gatt_regi="" s="" te="" t:="" d="" wiced_bt_gatt_db_init="" 0="" wiced_bt_cfg_settings="" .="" device_name="" :mcuxpresso—hello—sensor="" wiced_bt_ble_set_edverti="" s="" ement_dete="" 0="" [hiced_bt_b1e_set_s="" :an_respuns="" e_data="" 0="" advertisement="" state="" change:="" 3="" i="" hiced_bt_start_adve="" rt="" is="" ements="" o="">

Getting Started with M.2 Modules and i.MX RT

Page 31

Rev A

6. The application is then downloaded to the target and automatically runs to the main() function.

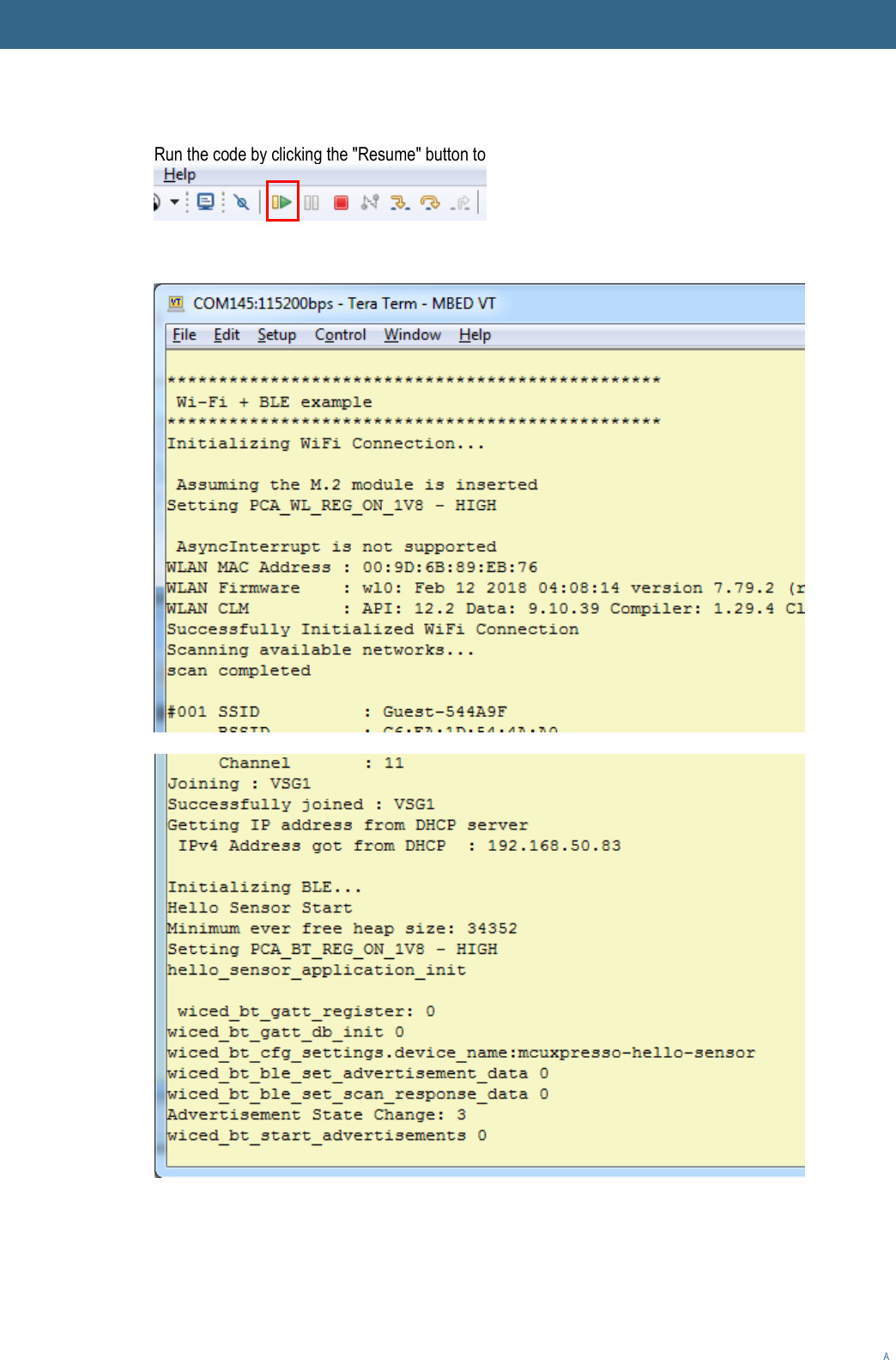

7. Run the code by clicking the "Resume" button to start the application.

8. The wiced_ble_4343W application is now running and some information is displayed on the

terminal. If this is not true, check your terminal settings and connections.

3.4.5 Explanation of the example

The example will start by scanning for nearby Wi-Fi networks and show some information about each

network that is found. It will then connection to the Wi-Fi network specified in section 3.4.3 above.

: https://p\ay.qooq\e.com/store/apps/details?id=no.nordicsemiandmidmcp https://p\ay.qooqlemm/storelapps/details?id=com.punchthrouqh.quhtblueexplorer Devices SCANNER “WNW ‘ No ﬁlter Devices STOP SCANNING SCANNER WWW" “INPUT?“ No ﬁner v N/A FCﬂ319F25326521 5 NOT BONDED 1-102 dBm H152 ms mcuxpresso-hello-sensor 43:43:A1:12:1F:AC ‘ BONDED 1-49 dam Hum: V N/A 24:7B:BZ:F3:BC:DS NOT BONDED 1-101 dBm 9102 ms 7B:77:60:26:FE:BB NOT BONDED 1-96 dBm 9273 ms N/A 04:43:57:3D:5k44 NOTBDNDED A400 dBm HOBms

Getting Started with M.2 Modules and i.MX RT

Page 32

Rev A

When the network connection has been established it will start BLE advertising with the device name

"mcuxpresso-hello-sensor". Download and install one of the following apps on your phone:

1. nRF Connect: https://play.google.com/store/apps/details?id=no.nordicsemi.android.mcp

2. LightBlue: https://play.google.com/store/apps/details?id=com.punchthrough.lightblueexplorer

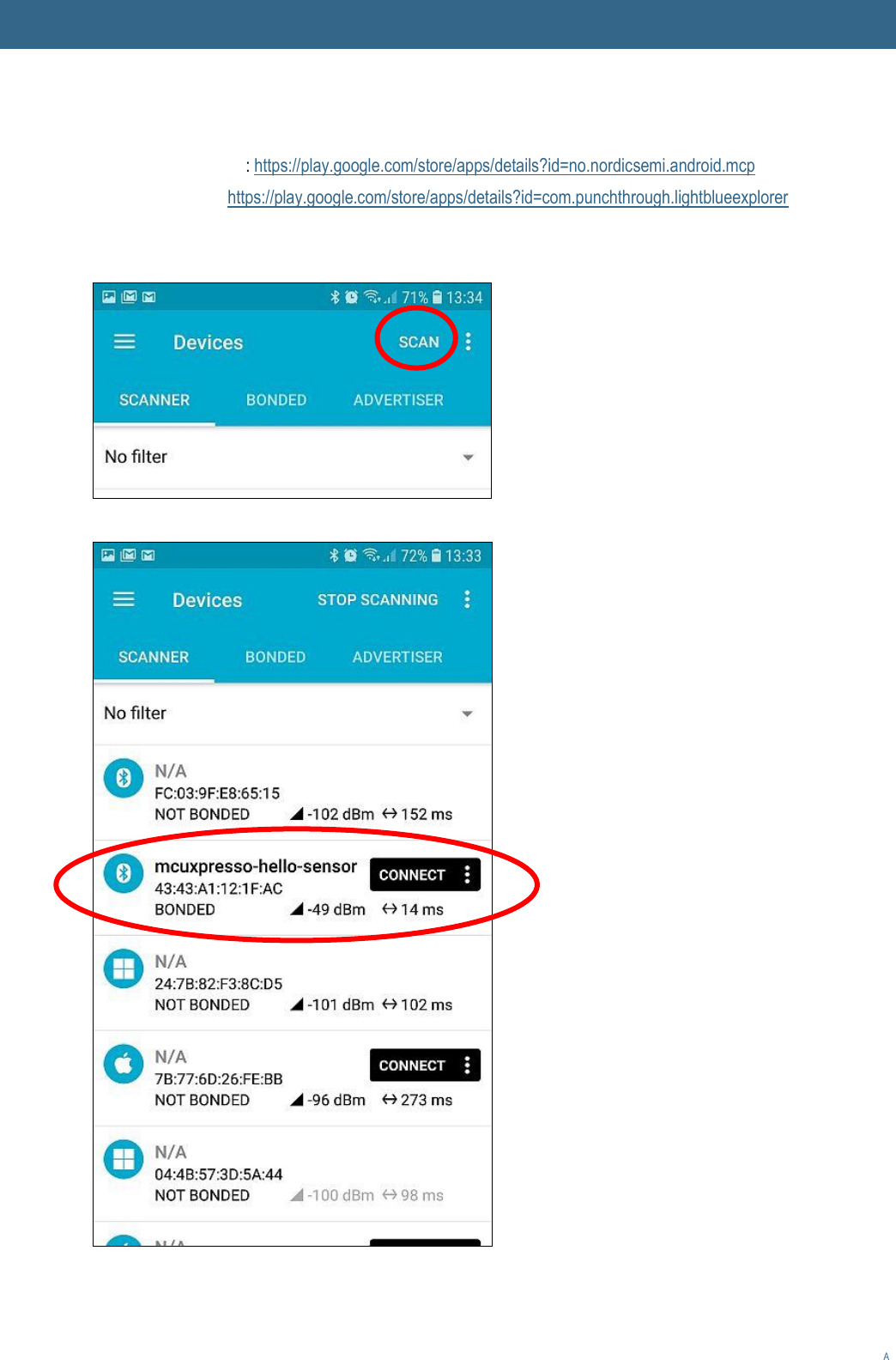

Start the nRF Connect app and press the SCAN button:

The Bluetooth device should appear like this:

Click CONNECT to get a list of attributes and information like this:

4°: Leiii' Devices DISCONNKCT MCIIXPRF OSFNSOR . l . CONNECTED BONDED CLIENT SERVER Generic Attrlbute UUID: 0x1ao1 PRIMARY SERVICE This service ls empIy. Generic ACCESS UUID: 0x1800 PRIMARY SERVICE Device Name i UUiD. UXZAOO Properties READ Appearance L UUiD. DXZAO1 Prapemes‘ READ Unknown Service UUIDV 1b7e8251»2877-4103»b46&cf0576562023 PRIMARY SERVICE Device Information UUI D: 0x1 anA BONDED Generic Attribute UU|D' 0x1801 PRIMARY SERVICE This service ls empty. Generic ACCESS UUID: 0X1BOO PRIMARY SERVICE Device Name i UUID: UXZAOU Propemes: READ Value: hellovsensor Appearance L UUID: UxZAm Properties, READ

Getting Started with M.2 Modules and i.MX RT

Page 33

Rev A

Click the marked button to read the device name. It will look like this:

ﬂ COM145:115200bps - Tera T=rm - MBED VT file [an Setup Cszmml window Help 0-.-0--gnu-alumangina-ana-haunt-annuaaaawn-an-aa Hi-Fi + ELIE exampla Initlalizinq “in Connection... Assumina cue 21.2 module is inserted Satcing PCA_HL_REG_OII_1VB - HIGH Asynclncexx‘up: u no: supponnn Hum MAC Address : ou:9n:65:as:za:7s MILAN Fimuarl : HID. Feb 12 2018 04:03:14 version 7.79.2 (r683798 CY) ml!) 0 Wm cm : MI: 12.2 nun: 5.10.39 Comilez: 1.29.4 cmmpazc: 1.36.! c Successfully Initialized wai Comaccxon Scanning available newuxka. . . scan cmleced Cannot ﬁnd Bluetooth device when searching with the a A successful initializaiion of 1he M.2 module looks like this: Initializing BLE. . . I e110 Sensor Star: I inimum ever free heap size: 34352 [Setting PCA_BT_REG_ON_1VB - HIGH I ello_sensor_app1icacion_inic wiced_bc_ga:c_register: 0 iced_bt_gatt_db_init D iced_bt_cfg_5ettinga . device_name :mcuxpreuu—hnnu—sensux iced_bt_ble_5et_advertisement_data o iced_bt_ble_:et_:can_respon:e_data o vertisemen: State Change: 3 iced_bt_=tart_advertisements o

Getting Started with M.2 Modules and i.MX RT

Page 34

Rev A

3.4.6 Troubleshooting

Some things to check if the application is not working as expected:

 Program not starting after being flashed.

This is typically because either the flash algorithm/flash size was not changed when importing

the project or the project files were not patched.

 Cannot find M.2 module.

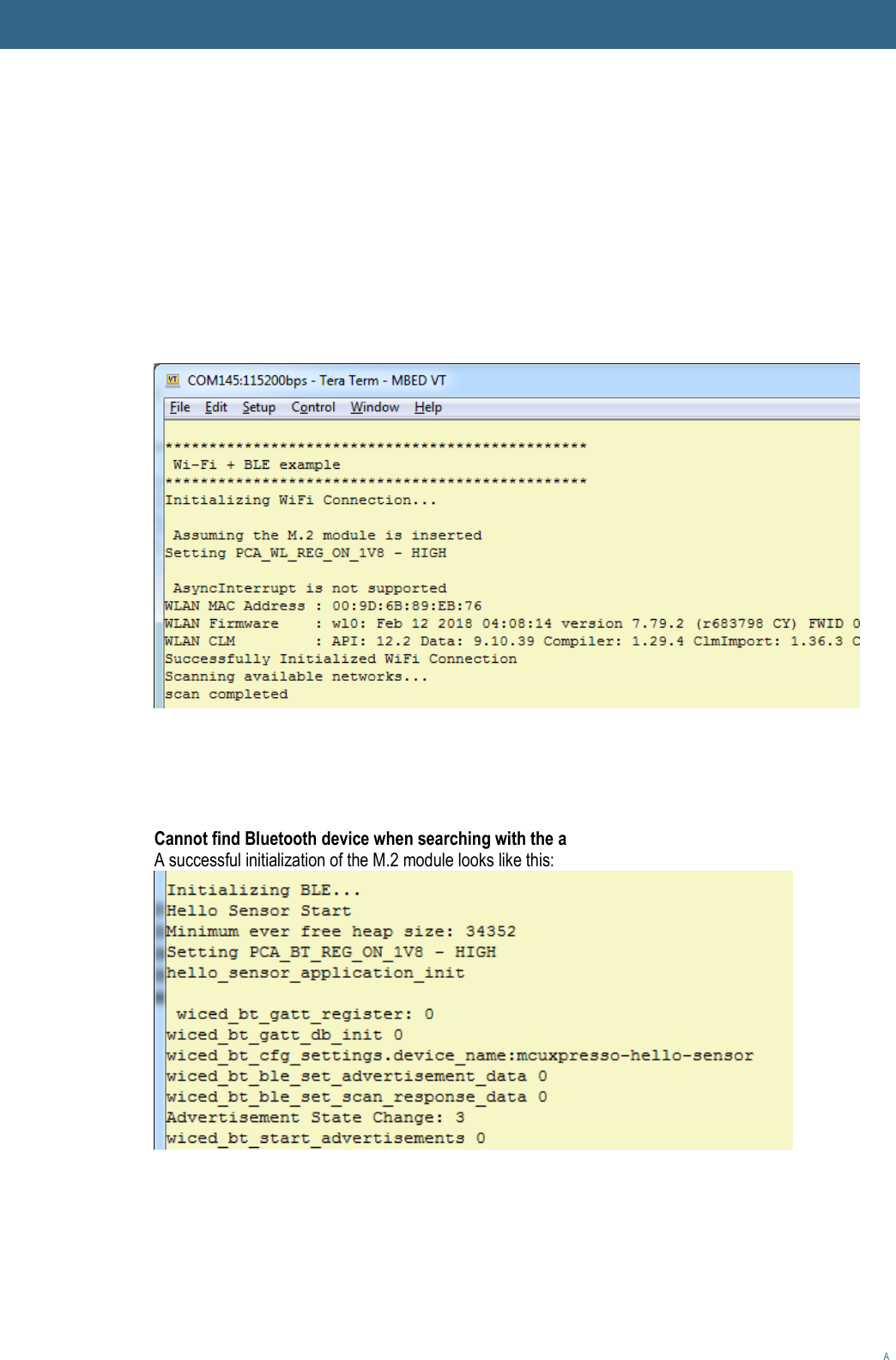

A successful detection of the M.2 module looks like this:

If the M.2 module cannot be detected, check that the module is correctly inserted and that all

patches were applied as specified in section 3.3.2 Make sure that the project matches the M.2

module - the wiced_ble_4343W is for 1DX.

 Cannot find Bluetooth device when searching with the app.

A successful initialization of the M.2 module looks like this:

If Bluetooth cannot be initialized, check that the M.2 module is correctly inserted and that all

patches were applied as specified in section 3.3.2 Make sure that the project matches the M.2

module - the wiced_ble_4343W is for 1DX.

Dmg cm Jump-ls “ER sac/no amma as: ESMHQ unm ENE] m: ‘ mbug Conn-mm

Getting Started with M.2 Modules and i.MX RT

Page 35

Rev A

4 Debug Interface

It is strongly recommended to use a debug/JTAG probe during program development. The low-cost

LPC-Link2 is an excellent choice. Keil ULINK2 and ULINKplus, as well as Segger J-LINK, are also

excellent debug probes.

There are two debug interface connectors available on the iMX OEM Carrier board:

 J10 – this is a Cortex Debug connector. It is a 2x5 pos, 50 mil pitch connector without a

shroud. Be careful when inserting the debug probe cable. Position 1 is in specifically marked

on the PCB silkscreen. It is located in the lower right corner, see Figure 7 below.

The connector supports both the SWD and JTAG interfaces.

 J11 – this is an ARM Debug connector. It is a 2x10 pos, 100 mil pitch connector with shroud.

Both connector are defined and supports both the SWD and JTAG type of debug interfaces.

Note that in order to enable the JTAG/SWD interface on the i.MX RT, JP5 shall not be

shorted/inserted.

Figure 7 – Debug Interfaces on rev B1 iMX OEM Carrier board

Note that due to the powering sequencing requirements on the i.MX RT family, the debug

probe I/O voltage MUST follow the i.MX RT I/O voltage.

Debug Ctrl Jumpers

JP5 - shall not be inserted

Debug Connectors

J10

Note pos 1 in lower left

corner

Debug Connectors

J11

Getting Started with M.2 Modules and i.MX RT

Page 36

Rev A

The debug adapter must not drive any output higher than the Vcc/Vref voltage (and if that

voltage is zero, then the debug adapter must not drive any output signal). Vcc/Vref is pin 1

on both J10 and J11.

Make sure the debug probe does not have a fixed output voltage, but rather follow Vcc/Vref.

If using LPC-Link2 as debug interface, make sure there is NO jumper inserted in JP2 on the

LPC-Link2.

4.1 J-LINK/J-TRACE Support

This section describes the steps necessary to get the Segger J-TRACE to work with NXP

MCUXpresso and Keil uVision. The same instructions are likely to work for Segger J-LINK as well, but

it has not been verified.

4.1.1 Install J-LINK Software

The software for the J-TRACE/J-LINK is installed in a central location (i.e. outside of the IDEs). The

latest version (v6.60d) as of January 2020 have support for the iMX RT1062 but needs a configuration

change to support the EcoXiP flash memory:

1. Download and install the latest version of Segger's

software: https://www.segger.com/downloads/jlink/JLink_Windows.exe (v6.42, or later). The

rest of the steps will use <jdir> as abbreviation for the folder that the driver was installed

in, for example c:\Program Files (x86)\SEGGER\JLink_V642b\

2. Open <jdir>\JLinkDevices.xml

3. Search for MCIMXRT1062 to find <Device> entries

4. In each of the <Device> entries, change

Loader="Devices/NXP/iMXRT106x/NXP_iMXRT106x_HyperFlash.elf"

Loader="Devices/NXP/iMXRT106x/NXP_iMXRT106x_QSPI.elf"

Change the MaxSize="0x04000000" to MaxSize="0x00400000" and then save

the file.

Getting Started with M.2 Modules and i.MX RT

Page 37

Rev A

4.1.2 MCUXpresso 10.3.0

MCUXpresso will detect the J-LINK / J-TRACE and configure itself correctly.

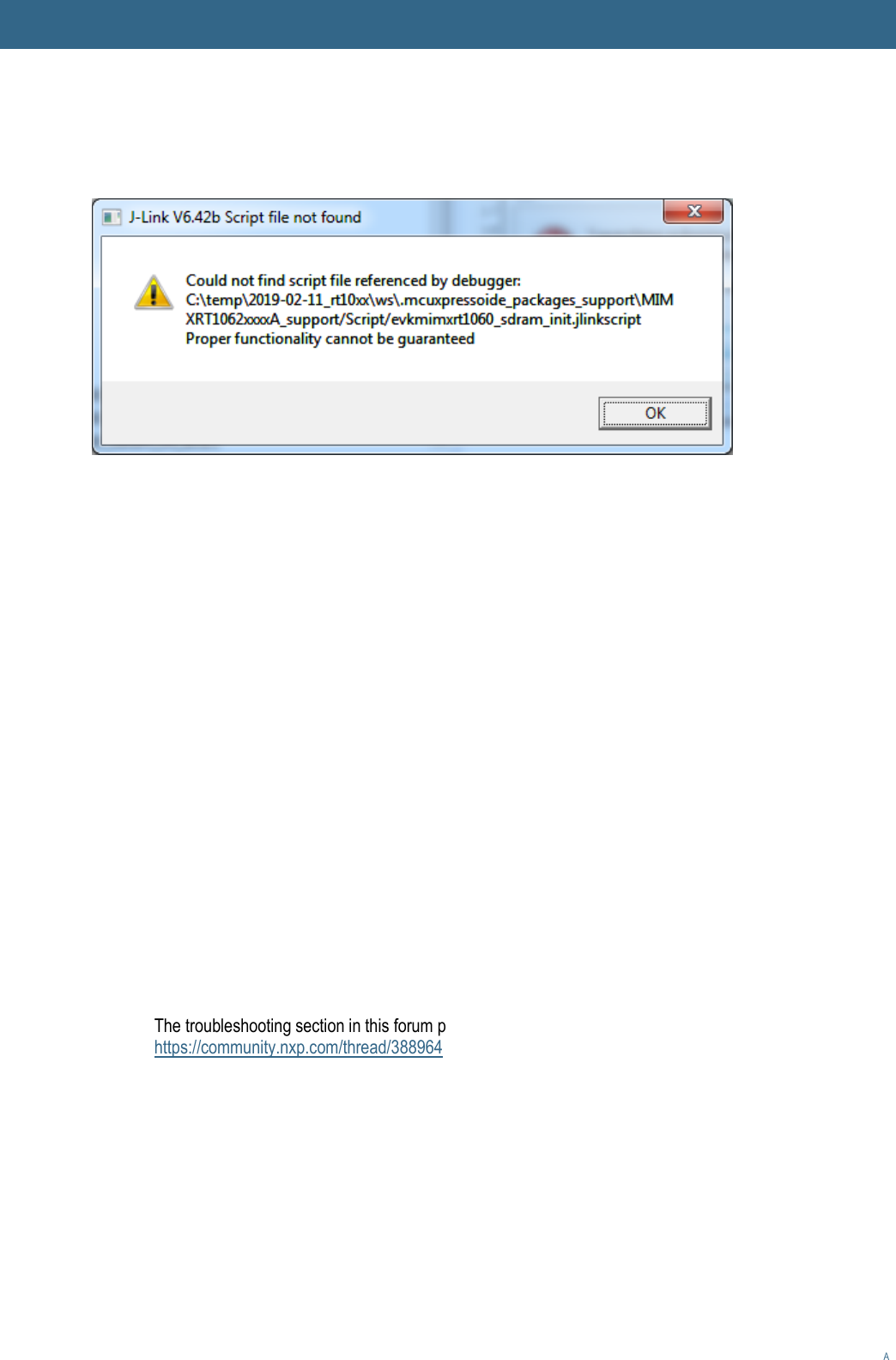

If this dialog appears:

Then copy the missing file from the folder that was created in see section 3.3.2

(c:/temp/ea_files/)

4.2 Debug Troubleshooting

In some cases the IDE complains about not being able to connect to the target. This is most likely

because the program already running on the target is interfering. The solution is to put the hardware in

ISP mode before starting the flash/debug operation in the IDE. To do this:

1. Push and hold down the ISP enable button

2. Press the Reset button

3. Release the Reset button

4. Wait 1 seconds

5. Release the ISP enable button

If the LPC-Link2 debugger is used then there are some additional things to note:

1. Make sure that the J2 jumper on the LPC-Link2 is not inserted. If the jumper is

inserted/closed then the target will be powered by the LPC-Link2 which might be too much

power for the usb port that the LPC-Link2 is connected to.

2. If the LPC-Link2 is not found by the IDE and you are working on a laptop then try using a

powered usb hub instead.

3. The troubleshooting section in this forum post has a couple of additional things to try:

https://community.nxp.com/thread/388964

4. There is a Using and troubleshooting LPC-Link2 in the Appendix - Additional Hints and Tips of

the User Guide for MCUXpresso IDE. The location of the document is

c:\nxp\MCUXpressoIDE_11.0.0_2516\MCUXpresso_IDE_User_Guide.pdf if the IDE was

installed with the default settings.

I Mm bamwmbm Pf W \ypmhu‘m um mug. : v ,3 v v mags . Avn llble pm: . mu m mum-nus ‘33 , E' ""' '““ mum Wilt“: mm”? mum mmuaisum mum wmm mmwmcﬂnm MW“ m wmenW 1., when. ‘ m ., wum V 0C" J x» mm 1) walk MC“ ‘Mmcy'w‘s ‘» mam I» Mum ““1" , . mum p wcunix ﬁll/Mm Wham » wcmn "h" .7 mum V V“ 1) wall»: p mu. p mum » mum . mam-mm (mm awn—Wm I: mm. Mum mama" Mmuymwwmtmz-mnr wummm m m an; mm m mm mm) mm m. um um mun nu W m w ml: nm on mm w mm me mm mm mm mm Mm mm mm mu mm m 9.... hp... m5... 5.»... m“. mmcm

Getting Started with M.2 Modules and i.MX RT

Page 38

Rev A

5 Improved IPERF performance

There are some improvements that can be made to the wiced_iperf example to more than double the

throughput. The changes include rearranging the memory layout, increasing the TCP receive window

and increasing the number of buffers.

The instructions below were written for an older version of the SDK. As of 2.7.0 the memory ranges

and buffers have been modified and as a result the instructions below will result in a too big binary

that cannot be used. The instructions are left here as pointers for the reader that wants to

experiment with performance tweaking themselves.

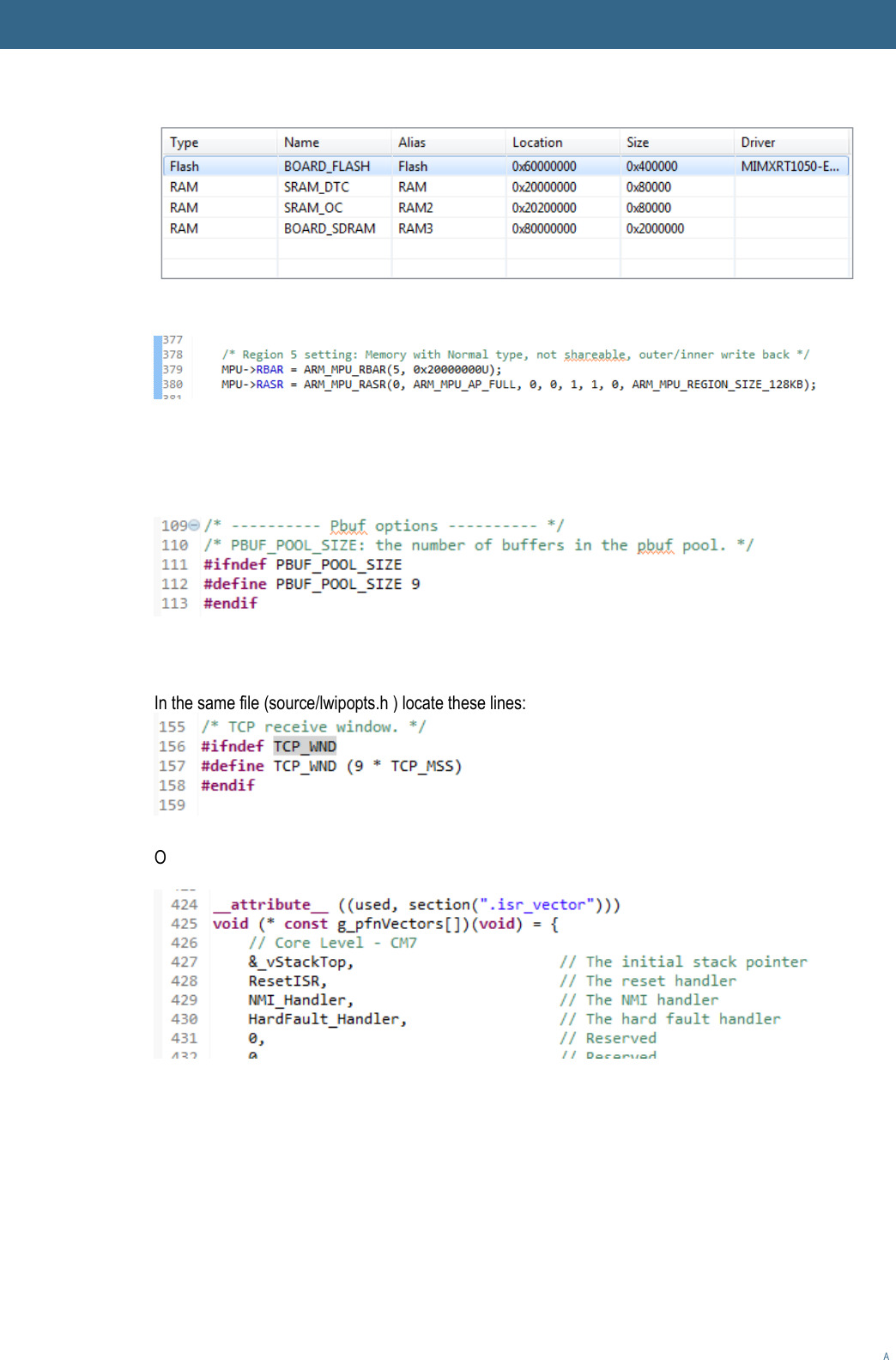

1) Setup the wiced_iperf example as explained in 3.3 and verify that it works

2) Right click the project and select Properties… from the menu. Expand the tree and locate the

MCU Settings node:

Delete the SRAM_ITC and then change the sizes of SRAM_DTC and SRAM_OC so that it

Type Name Ans [m Site Dnva Nash DOARDJIAS’I Flash W mono MIMXRm-E. ‘ MM SRAM_DTC RAM (km W RAM SRAM_OC MMZ 0.20m om RAM BOARDVSDRAM RAM! memo 0120000130 377 373 1' Region 5 sening: Memory with Nor-a] type, not W outer/inner am: back -/ 37s IW-)RBAA - Am_wu_m(5, mm); m nan-mun - Ann_rru_|usn(o, Am_wu_AP_ruu, I, I, J, 1, a, m_wu_nia:w_5!zi_um); 199* l‘ ---------- W options ---------- 'l 110 /' PBUF_POOL_SIIE: the number of buffers in the em pool. ‘I 111 aifndef PBUF_PO0L_SIZE 112 Mine PBUF_PwL_SIZE 9 113 #endif In the same ﬁle (sourcellwipomsh ) locate these lines: 155 /‘ TCP receive window. ‘I 156 Sifndef TOLD!” 157 Mine T(P_lll) (9 ‘ TCP_HSS) 158 sendif 159 0 45;: _attribute_ ((used, section(".isr_vector"))) 425 void (‘ (oust uanectors[])(void) = ( 426 // (ore Level 7 CH7 427 &_vstaek1op, // The initial statk pointer 428 ResetISR, II The reset handler 429 IllI_Handler, // The m1 handler 430 HardFaultJlandler, // The hard fault handler 431 a, // Reserved A11 1: u Darnmlnd

Getting Started with M.2 Modules and i.MX RT

Page 39

Rev A

looks like below and then save the changes and close the dialog

3) Open board/board.c and locate these lines that control the size of the SRAM_DTC (region 5):

Replace the ARM_MPU_REGION_SIZE_128KB to ARM_MPU_REGION_SIZE_512KB. This

aligns the size with the 0x80000 value entered in the previous dialog for SRAM_DTC.

4) Open source/lwipopts.h and locate these lines:

Change from 9 to 44 buffers in the pool. This is what the increase of SRAM_DTC was used

for.

5) In the same file (source/lwipopts.h ) locate these lines:

Replace the constant 9 with 44

6) Open startup/startup_mimxrt1062.c and locate these lines:

Replace the &_vStackTop with (0x20200000 + 0x1000U) to move the initial stack pointer to

the end of the first block of SRAM_OC. It should look like this after the change:

424 _attrilmte_ ((used, section(”.isr_vector"))) 425 void (‘ const uanectorsUXvoid) = { 426 // (ore Level - (H7 427 (8x20290000 + exlaow), // The initial stack pointer 428 Rese'tISR, II The reset handler 429 IIII_Handler, // The MI handler 430 HardFault_Handler, // The hard fault handler 431 o. // Reserved A)1 n n n HHHHHH .4 646 7 _attrioute_ ((seetion( " .after_ve(tors. reset") )) 647 void neseusnomid) ( 648 649 // Disable interrupts 650 _as- valatile ("W i"); 651 £57 Ilif defined I IKF (INTﬁ\ 646* _iltribute_ ((s:(tion(".after_ve(tors.reset"))) 647 void ResetlSMvoid) ( 643 649 // nisaole interrupts 659 _asl| volatile ("W i"); 65] 652 ‘((vnlatill unsiyled int ‘)ﬁxma(m) - cousin-on; 65: ‘((vnlatilz unsigned int ‘)Wacw) - mm; // nrc am uitn W m 654 ‘((volatile unsigned int ‘)Wac038) - W; // or: - 512. ITC - a 655

Getting Started with M.2 Modules and i.MX RT

Page 40

Rev A

7) In the same file (startup/startup_mimxrt1062.c) locate the ResetISR function:

Insert the following lines after the _asm… line:

*((volatile unsigned int *)0x400ac044) = 0x5aaaaaaa;

*((volatile unsigned int *)0x400ac040) = 0x00200006; // DTC RAM with flexram config

*((volatile unsigned int *)0x400ac038) = 0x00A00000; // DTC - 512, ITC - 0

so that it now looks like this:

8) Compile and run. Compare iperf throughput results with, and without, this patch.
