EEK-N
Pawclmg Bums: Wa/IdW/dc
Technical Data 10353 Effective September 2018
Supersedes July 2018
BUSSMANN
SERIES

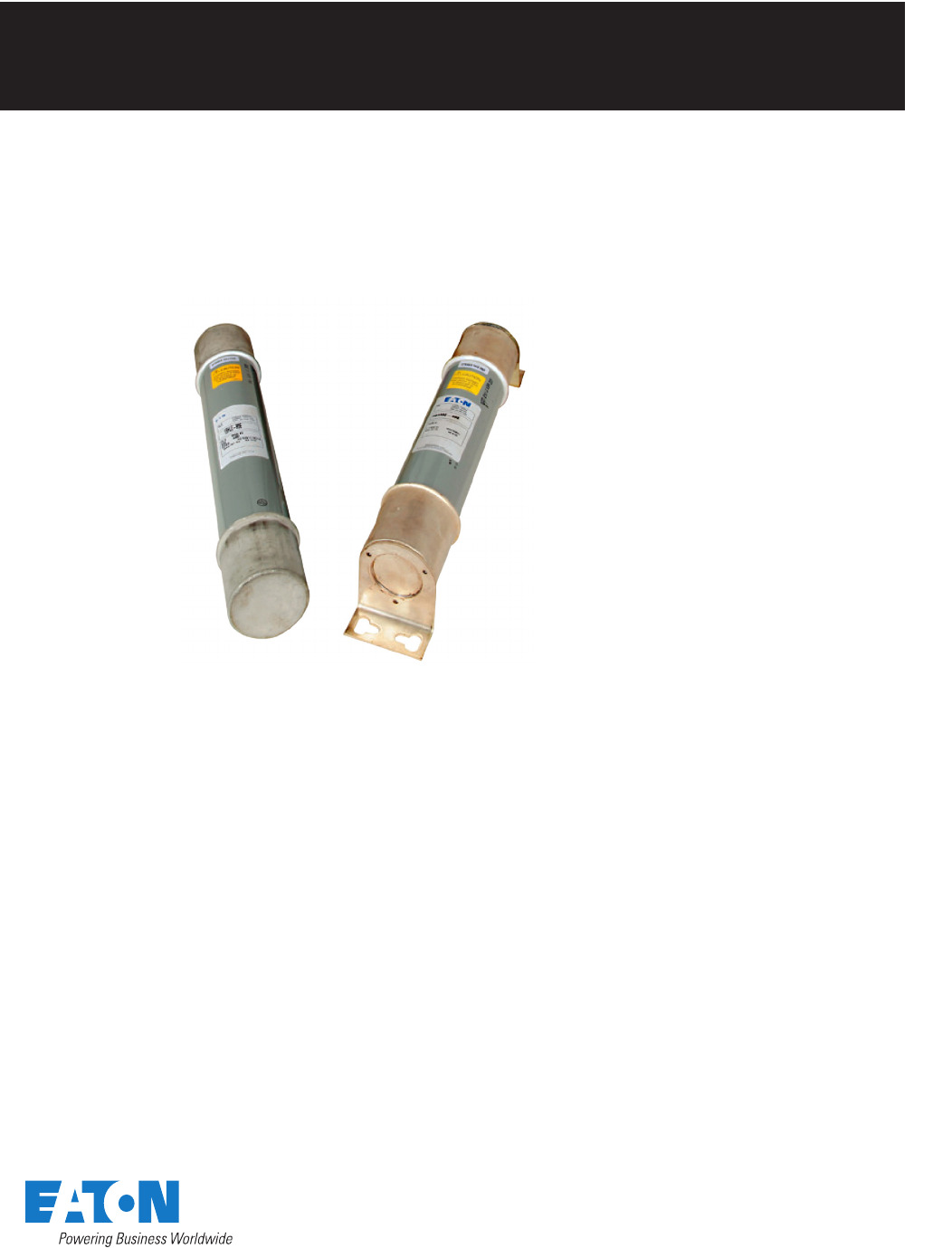

Description:
• Bussmann™ series of E-Rated, current-limiting,
medium voltage fuses are for feeder circuit,
switchgear and transformer protection.
Features and benefits
• Current-limiting E-Rated medium voltage
fuses are defined by their melting time-current
characteristic that permit their electrical
interchangeability with other fuses of the same
E Rating.
• E-Rated fuses must have a defined current
response time specified by ANSI C37.46.
E-Rated fuse of 100 amps and below must
melt in 300 seconds at an RMS current within
the range of 200% to 240% of the fuse’s
nameplate current rating. E-Rated fuses greater
than 100 amps must melt in 600 seconds at an
RMS current within the range of 220% to 264%
of the fuse’s nameplate current rating.
• E-Rated fuses are physically dimensioned for
easy installation in existing hardware.
• Current-limiting fuses provide positive
interruption even on low fault currents. The
fuse limits the magnitude of electromechanical
stresses in the protected apparatus.
• Constructions available in ferrule, bolt-on
and clip-lock, and specialty mount fuses for
AMPGARD motor starters
• Outdoor rating available on select catalog
numbers (requires installation in a suitable
enclosure).
• Open fuse indicator easily integrates
into automation schemes and speeds
troubleshooting by providing a positive visual
indication of fuse operation.
• Optional remote contact signaling microswitch
available.
• 50/60Hz operating frequency for worldwide
application.
• Mountings are available in disconnect and non-
disconnect versions with porcelain or glass poly-
ester insulators.
• Live parts and end fittings available.
Typical applications:
• Medium voltage transformer primary
protection
• Medium voltage feeder circuit protection
• Medium voltage switches
• Medium voltage metal-enclosed switchgear
15.5kV E-Rated medium voltage fuses for feeder
circuit, switchgear and transformer protection
2
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries
E-Rated medium voltage ferrule fuses
Catalog symbols:
• General purpose
• 15CLE-_E-D (long construction, 10-25A)
• 15CLE-_E (long construction, 15-300A)
• 15HLE-_E (short construction, 10-250A)
• 15LHLE-_E (intermediate construction, 65-300A)
• Full range (per ANSI C37.40)
• MV155F_
Ratings*:
• Volts — 15.5kV
• Amps — 10 to 300A
• Interrupting ratings — 31.5 to 63kA RMS Sym.
* See catalog number tables for voltages, ampacities and interrupting ratings by
catalog number.
Agency information:
• E-Rated fuses meet the performance characteristics of
ANSI C37.46
• UL Listed, Guide JEEG, File E240398. See catalog numbers.

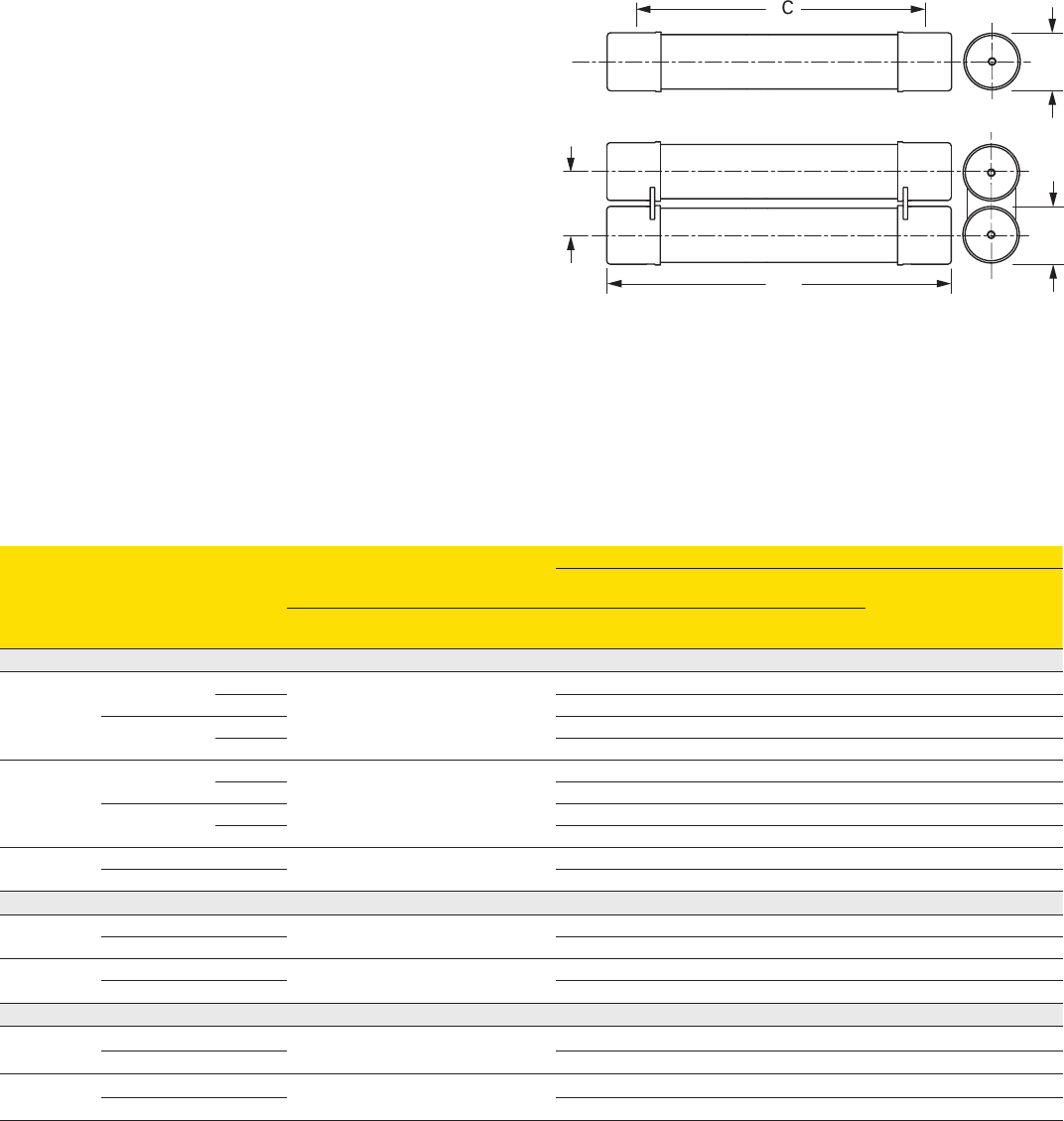

Dimensions (see catalog number tables for values)
3.31
(84.1)
B
B
C
A

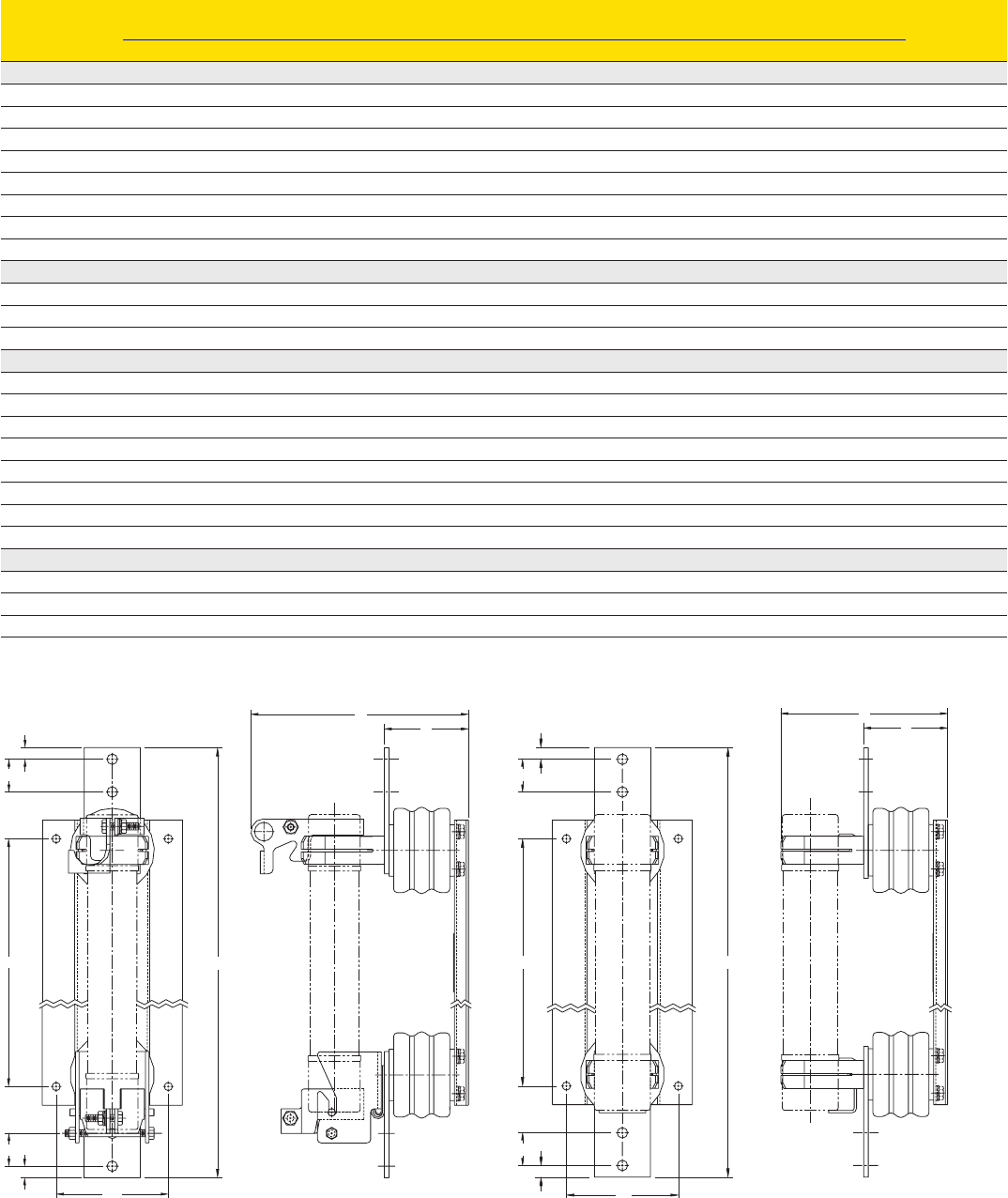

Recommended fuseclips and holders:
Amp rating
Fuse
mounting
type*
Voltage
BIL (kV)
Approximate dimensions - in (mm)
Catalog number
Mounting
(including live parts, end fittings)** Live parts
(including
end fittings)
End fittings
(disconnect
only)Diameter Clip center Length Porcelain insulator
Glass-polyester
insulator
CLE
15E–25E
Single barrel
Non-disconnect 95
2 (51) 20 (508) 21.5 (546)
15CLE-PNM-C 15CLE-GNM-C CLE-NL-C —
110 15CLE-HPNM-C — CLE-NL-C —
Disconnect†95 15CLE-PDM-C 15CLE-GDM-C CLE-DL-C CLE-DF-C
110 15CLE-HPDM-C — CLE-DL-C CLE-DF-C
10E-D–25E-D
30E–150E
Single barrel
Non-disconnect 95
3 (76) 20 (508) 23.9 (607)
15CLE-PNM-D 15CLE-GNM-D CLE-NL-D —
110 15CLE-HPM-D — CLE-NL-D —
Disconnect†95 15CLE-PDM-D 15CLE-GNM-D CLE-DL-D CLE-DF-D
110 15CLE-HPDM-D — CLE-DL-D CLE-DF-D
175E–300E
Double barrel
Non-disconnect 110 3 (76) 20 (508) 23.9 (607) 15CLE-PNM-E — CLE-NL-E —
Disconnect†110 15CLE-PDM-E — CLE-DL-E CLE-DF-E
HLE
10E-125E
Single barrel
Non-disconnect 95 3 (76) 15 (381) 18.9 (480) 15HLE-PNM-D 15HLE-GNM-D CLE-NL-D —
Disconnect†95 15HLE-PDM-D 15HLE-GDM-D CLE-DL-D CLE-DF-D
150E–250E
Double barrel
Non-disconnect 95 3 (76) 15 (381) 18.9 (480) 15HLE-PNM-E — CLE-NL-E —
Disconnect†95 15HLE-PDM-E — CLE-DL-E CLE-DF-E
LHLE
65E–150E
Single barrel
Non-disconnect — 3 (76) 18 (457) 20.53 (521) Not available Not available CLE-NL-D —
Disconnect†—Not available Not available CLE-DL-D CLE-DF-D
175E–300E
Double barrel
Non-disconnect — 3 (76) 18 (457) 20.53 (521) Not available Not available CLE-NL-E —
Disconnect†—Not available Not available CLE-DL-E CLE-DF-E

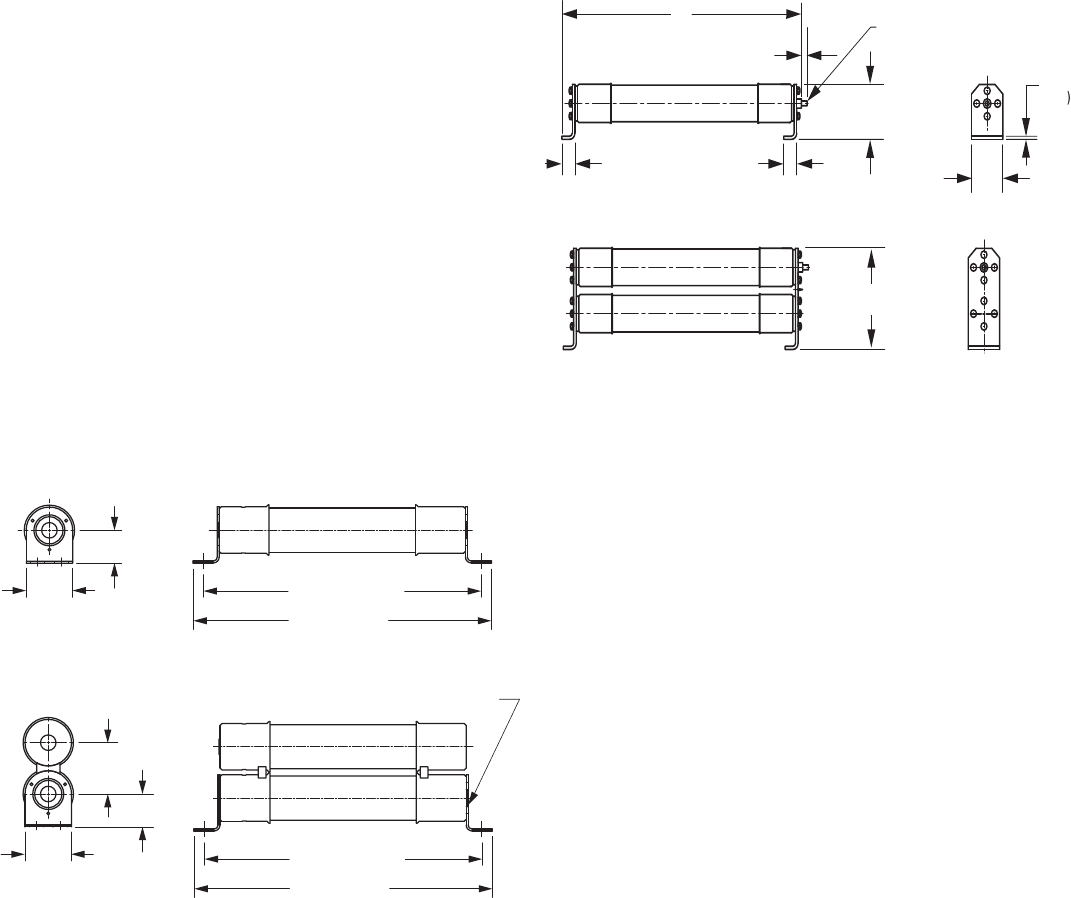

* See page 10 for illustrations and dimensions
** End fittings supplied only when required.
† Disconnect mountings provide a means for fuse extraction only. Do not use a disconnect mounting for load switching or fuse removal while energized.
3
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries
CLE, HLE and LHLE Type general purpose fuses
Amps
Dimensions — in (mm) IR RMS Sym.
(kA) No. of barrels
Installation
location Catalog no.Length A Diameter B Clip centers C
CLE Long construction
10 23.9 (607) 3 (76)
20 (508)
63
1
Indoor/outdoor 15CLE-10E-D
15 21.5 (546) 2 (51) 31.5 Indoor 15CLE-15E*
15 23.9 (607) 3 (76) 63 Indoor/outdoor 15CLE-15E-D
20 21.5 (546) 2 (51) 31.5 Indoor 15CLE-20E*
20 23.9 (607) 3 (76) 63 Indoor/outdoor 15CLE-20E-D
25 21.5 (546) 2 (51) 31.5 Indoor 15CLE-25E*
25
23.9 (607) 3 (76) 63 Indoor/outdoor
15CLE-25E-D
30 15CLE-30E
40 15CLE-40E†
50 15CLE-50E†
65 15CLE-65E†
80 15CLE-80E†
100 15CLE-100E†
125 15CLE-125E†
150 15CLE-150E†
175
2
15CLE-175E†
200 15CLE-200E†
250 15CLE-250E†
300 15CLE-300E†
HLE Short construction
10
18.9 (480) 3 (76) 15 (381) 63
1
Indoor/outdoor
15HLE-10E
15 15HLE-15E
20 15HLE-20E
25 15HLE-25E
30 15HLE-30E
40 15HLE-40E†
50 15HLE-50E†
65 15HLE-65E†
80 15HLE-80E†
100 15HLE-100E†
125 15HLE-125E†
150
2
15HLE-150E†
175 15HLE-175E†
200 15HLE-200E†
250 15HLE-250E†
LHLE
65
20.5 (521) 3 (76) 18 (457) 50
1
Indoor/outdoor
15LHLE-65E
80 15LHLE-80E
100 15LHLE-100E
125 15LHLE-125E
150 15LHLE-150E
175
2
15LHLE-175E
200 15LHLE-200E
250 15LHLE-250E
300 15LHLE-300E
* Fuses conform to dimensional standards established by Westinghouse.
† UL Listed, Guide JEEG, File E240398.
4
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries
ØC
B
A
G
E
F
D
Figure 2 Figure 3Figure 1
MV155F_ Full range
Amps
Dimensions — in (mm) IR RMS Sym.
(kA) No. of barrels
Installation
location Catalog no.Length A Diameter B Clip centers C
5
18.7 (475)
2 (51)
15 (381)
50
1
Indoor
MV155F1CBX5E
7 MV155F1CBX7E
10 MV155F1CBX10E
10 3 (76) MV155F1DBX10E
15 2 (51) MV155F1CBX15E
15 3 (76) MV155F1DBX15E
20 2 (51) MV155F1CBX20E
20 3 (76) MV155F1DBX20E
25 2 (51) MV155F1CBX25E
25 3 (76) MV155F1DBX25E
30 2 (51) MV155F1CBX30E
30
3 (76)
MV155F1DBX30E
40 MV155F1DBX40E
50 MV155F1DBX50E
65 MV155F1DBX65E
65 21.7 (551) 18 (457) MV155F1DCX65E
80 18.7 (475) 15 (381) MV155F1DBX80E
80 21.7 (551) 18 (457) MV155F1DCX80E
100 18.7 (475) 15 (381) MV155F1DBX100E
100 21.7 (551) 18 (457) MV155F1DCX100E
125 18.7 (475) 15 (381)
2
MV155F2DBX125E
125 21.7 (551) 18 (457) MV155F2DCX125E
150 18.7 (475) 15 (381) MV155F2DBX150E
150 21.7 (551) 18 (457) MV155F2DCX150E
175 18.7 (475) 15 (381) MV155F2DBX175E
175 21.7 (551) 18 (457) MV155F2DCX175E
200 18.7 (475) 15 (381) MV155F2DBX200E
200 21.7 (551) 18 (457) MV155F2DCX200E

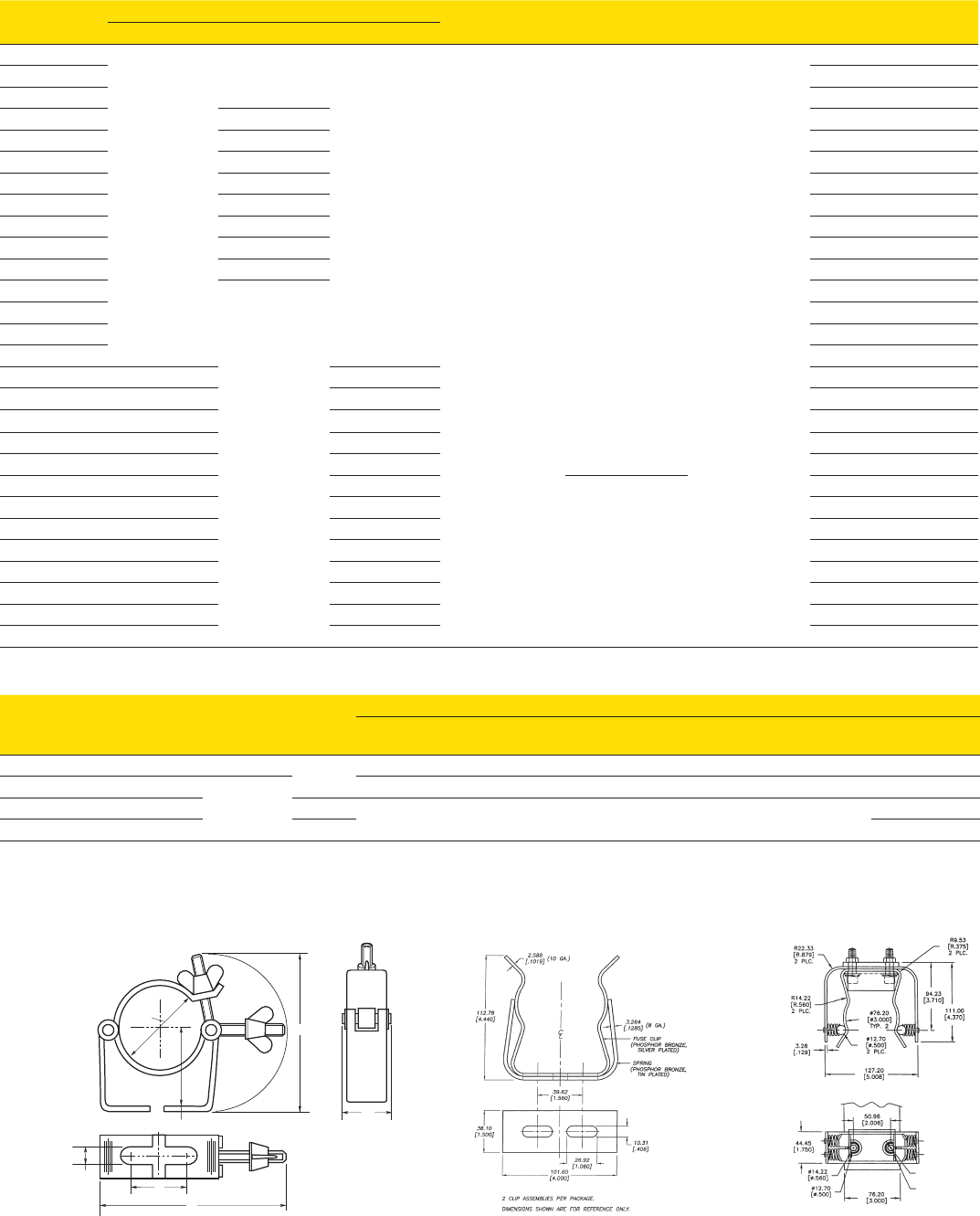

Recommended CLE, HLE and MV155 fuseclips
Description
Fuse
diameter -
in (mm) Figure
Clip dimensions - in (mm)
A B C D E F G
Catalog
number
Enclosed fuseclip 2 (51) 13.75 (95) 1.98 (50) 2.01 (51) 1.19 (30) 4.54 (115) 1.51 (38) 0.4 (10) A3354710*
Enclosed fuseclip
3 (76)
4.14 (105) 2.45 (62) 3.01 (76) 1.19 (30) 5.64 (143) 1.51 (38) 0.4 (10) A3354730*
Open fuseclip 2See dimensions drawing 1A0065
Spring loaded open fuseclip 3 9078A67G04
*For single barrel applications only. Not sold in pairs.
AMPERE
5
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries

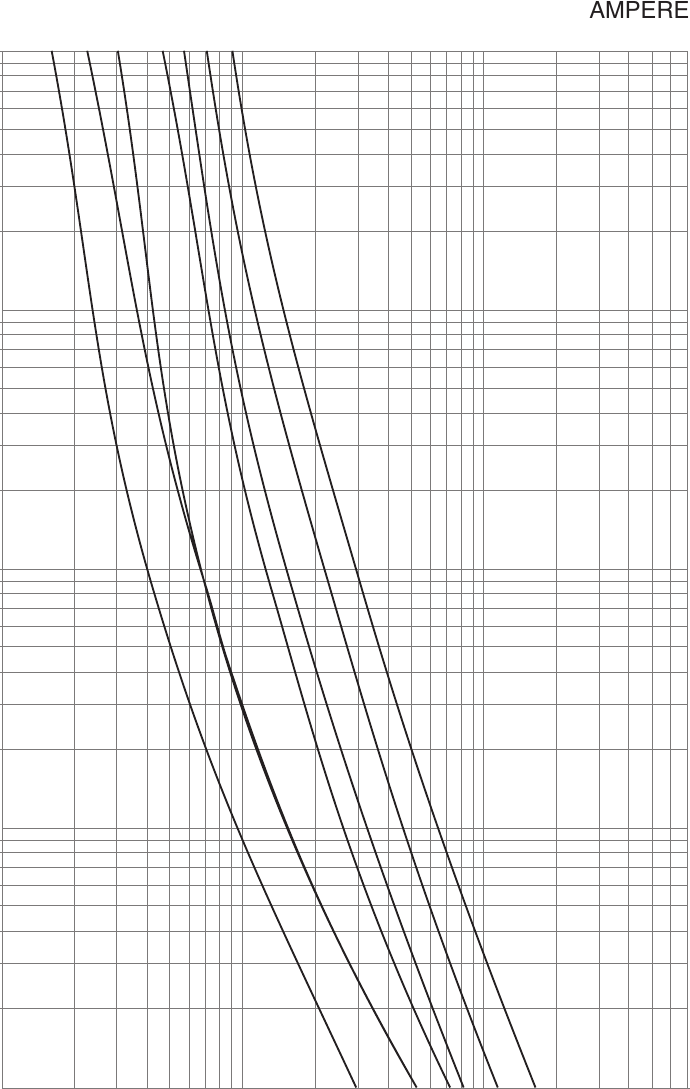

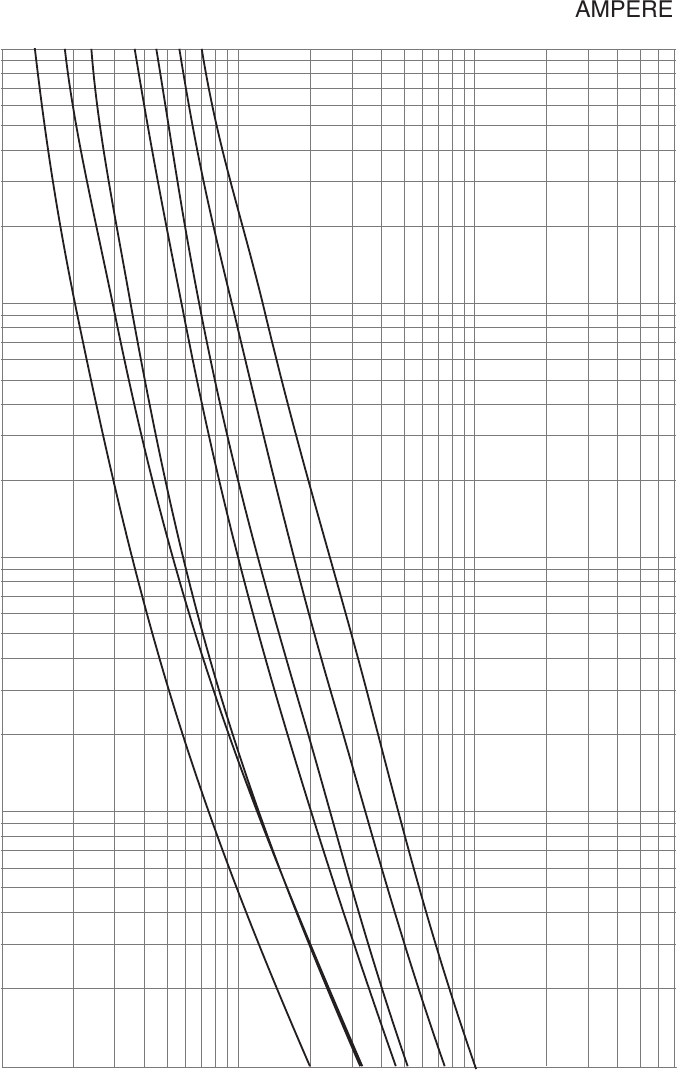

15.5kV Time-current curves — minimum melt for MV155 2 inch diameter fuses
TIME IN SECONDS
AMPERE
RATING
1,000
7,000
100
10
CURRENT IN AMPERES
30A
25A
20A
15A
10A
7A
5A
100
10
1
.1
.01
MV155_ (2 inch diameter)
AMPERE
6
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries
15.5kV Time-current curves — total clear for MV155_ 2 inch diameter fuses
TIME IN SECONDS
100
10
1
.1
.01
30A
25A
20A
15A
10A
7A
5A
AMPERE
RATING
1,000
7,000
100
10
CURRENT IN AMPERES
MV155_ (2 inch diameter)
1 000
7
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries

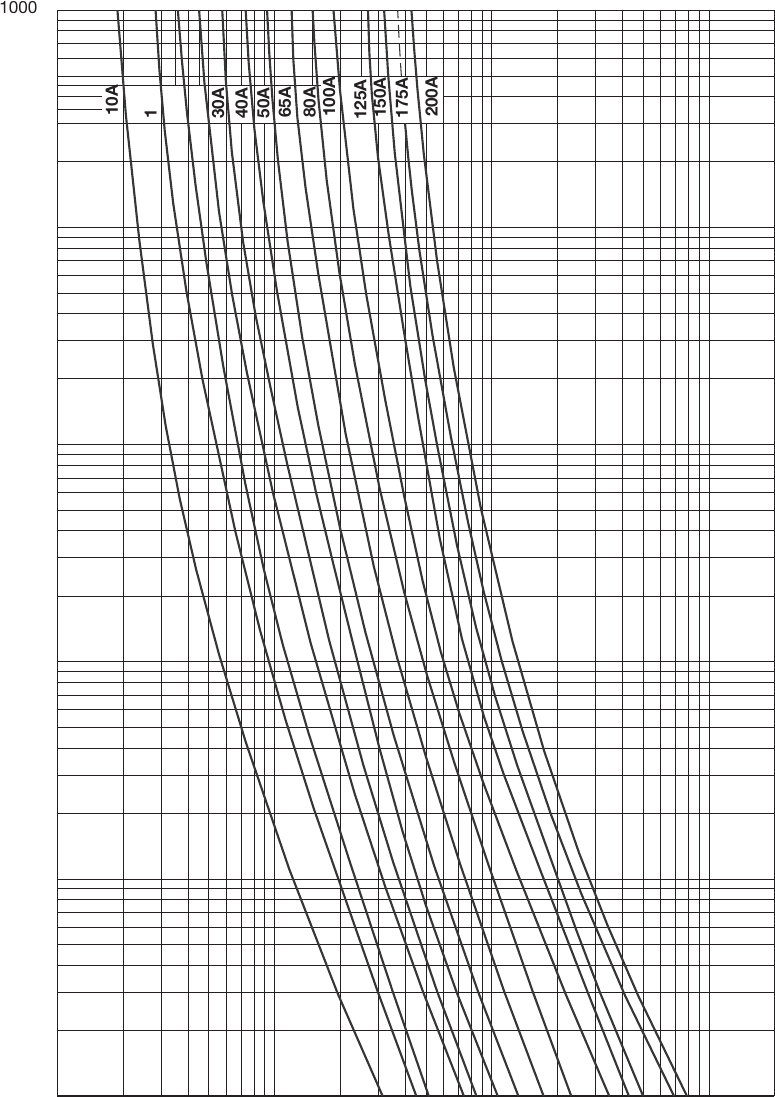

15.5kV Time-current curves — minimum melt for MV155_ 3 inch diameter fuses
MV155_ (3 inch diameter)
.1
10
100
1000
.01
1
100
10
1000
10000
20000
TIME IN SECONDS
CURRENT IN AMPERES
10A
15A
20A
25A
30A
40A
50A
65A
80A
100A
125A
150A
175A
200A
1000
8
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries

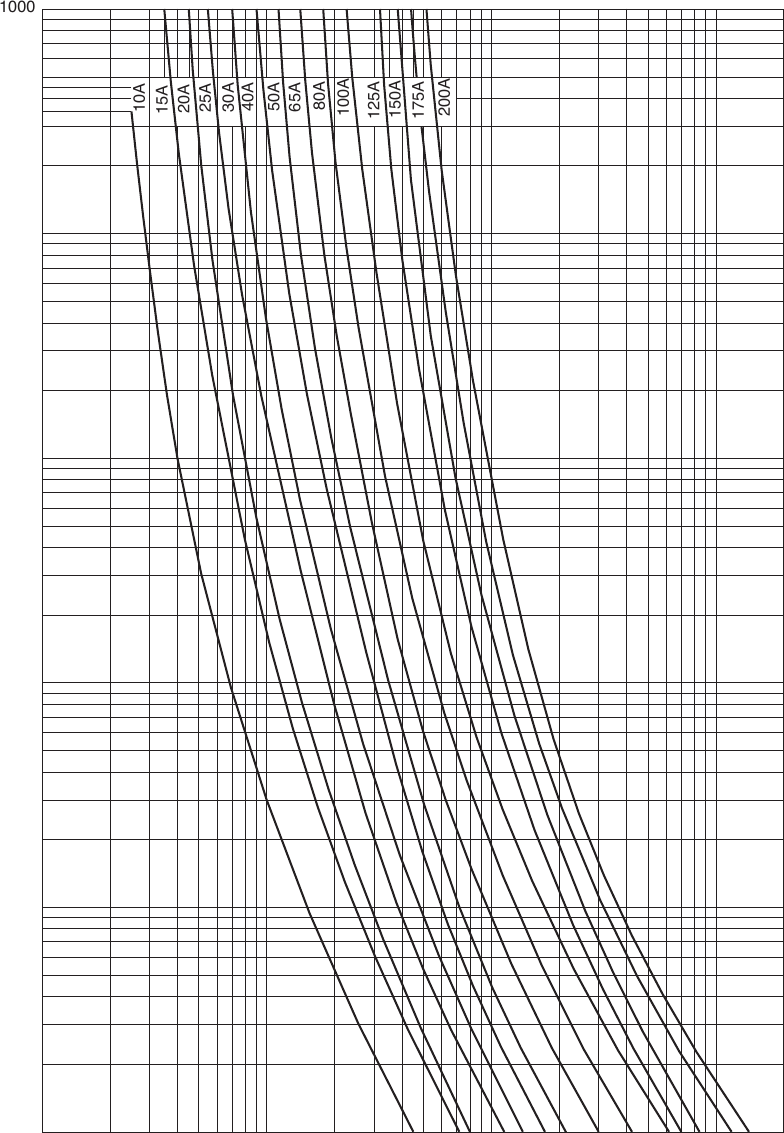

15.5kV Time-current curves — total clear for MV155_ 3 inch diameter fuses
MV155_ (3 inch diameter)
TIME IN SECONDS
CURRENT IN AMPERES
.1
10
100
1000
.01
1
10000
1000
10
100
20000
10A
15A
20A
25A
30A
40A
50A
65A
80A
100A
125A
150A
175A
200A
9
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries

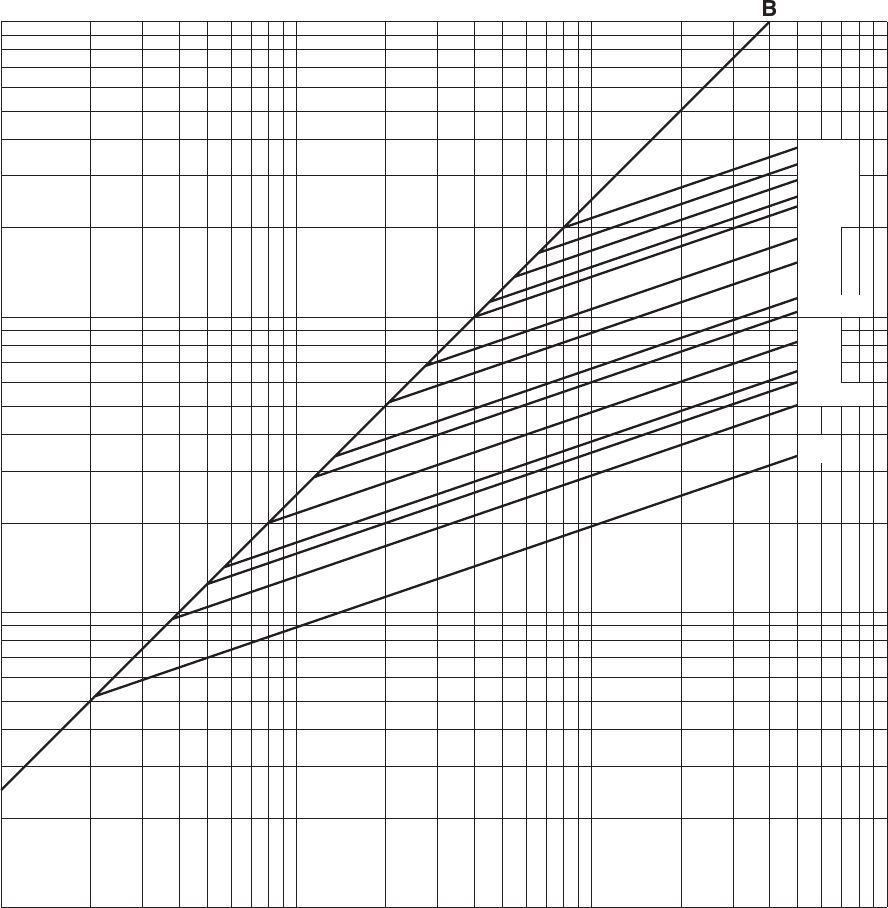

15.5kV Peak let-through for MV155_ 2 and 3 inch diameter fuses
MV155_ (2 and 3 inch diameter)
1
AVAILABLE CURRENT IN KILOAMPERES (RMS Symmetrical)
MAXIMUM LET-THROUGH (Peak Kiloamperes)
100
10
.1
.1 110
100
15A
20A
25A
30&40A
50A
65A
80A
100A
07&10A
05A
125A
150A
175A
200A
A
B
WMMmmmm
m
mmmmmm w m m
mmwwmw w m
:0 “WSESSE § § §§§E§§
2n
scum
10
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries

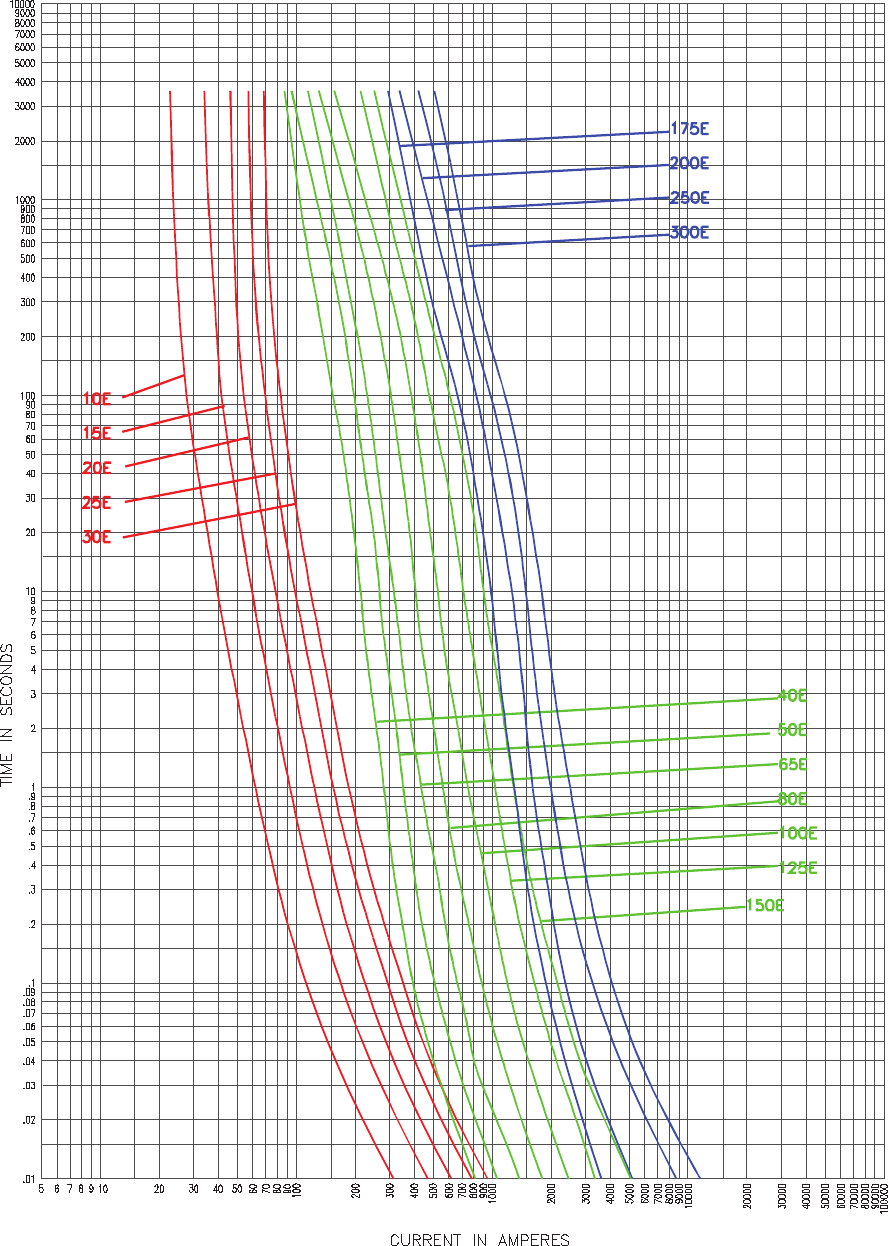

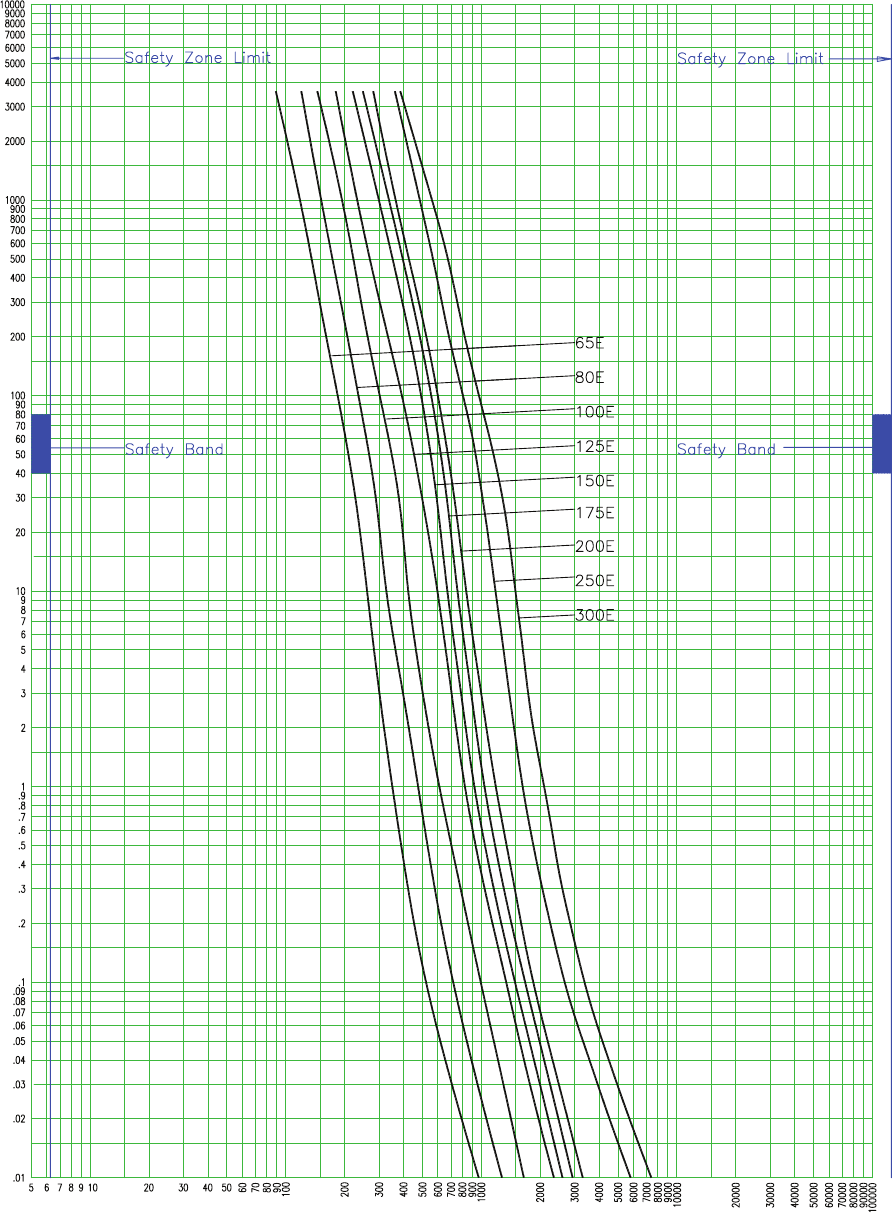

15.5kV Time-current curves — minimum melt for 15LHLE_ 3 inch diameter fuses
TIME IN SECONDS
CURRENT IN AMPERES
15LHLE_ (3 inch diameter)
Curve TC66703203
April 2011
waivsso 3 4.51.5.5». a
vmumwm m u m
“mumwm w m mmwnmww w
§§§§§§§§
SSW
§§§§E§§
§
§ § §§§§§§
34: usasssss
m
5 57mm
11
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries

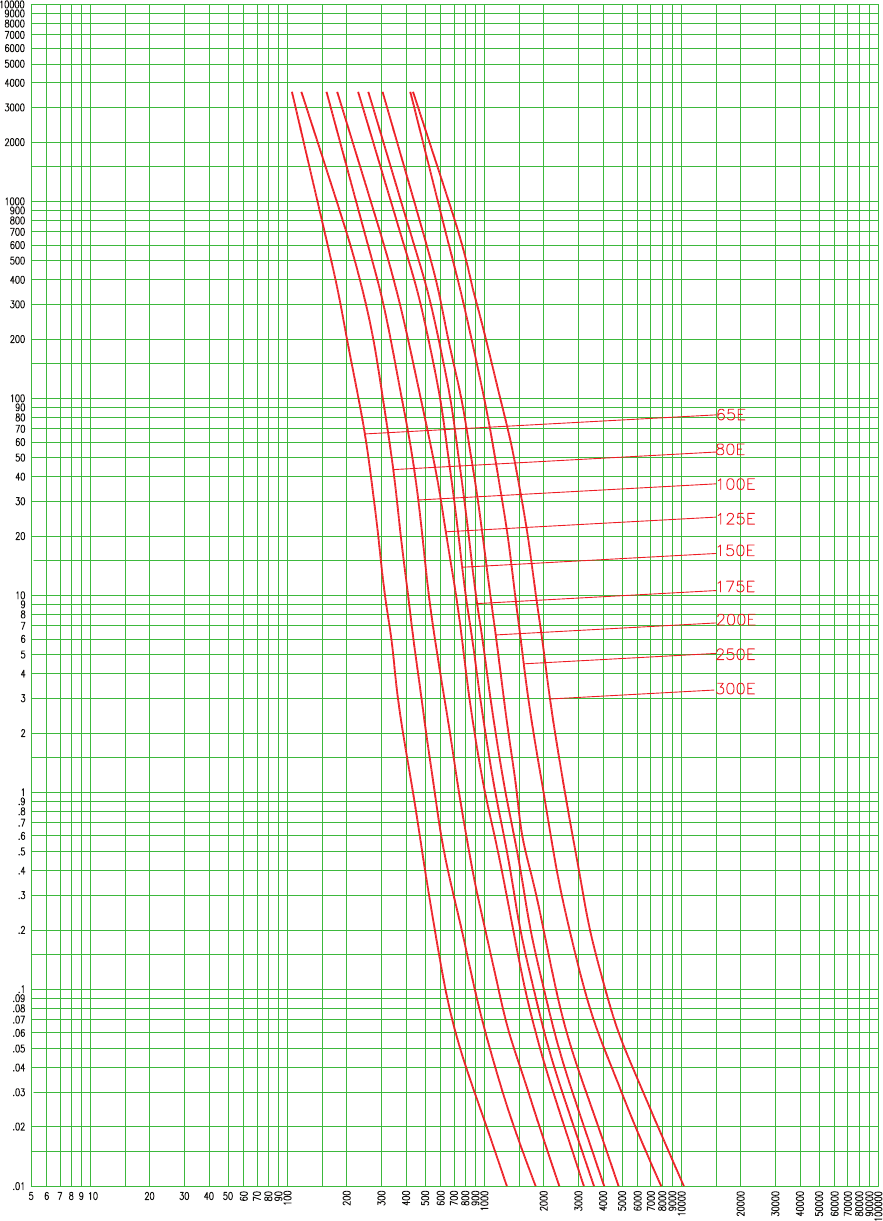

15.5kV Time-current curves — total clear for 15LHLE_ 3 inch diameter fuses
TIME IN SECONDS
CURRENT IN AMPERES
15LHLE_ (3 inch diameter)
Curve TC66703303
April 2011
mmmmmm m m
m
mmmmmm w m
m
13555 » J
1
m
E
§ § §§§§§§
§
:0 «1 50:52:33
20
517mm
.m
12
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries

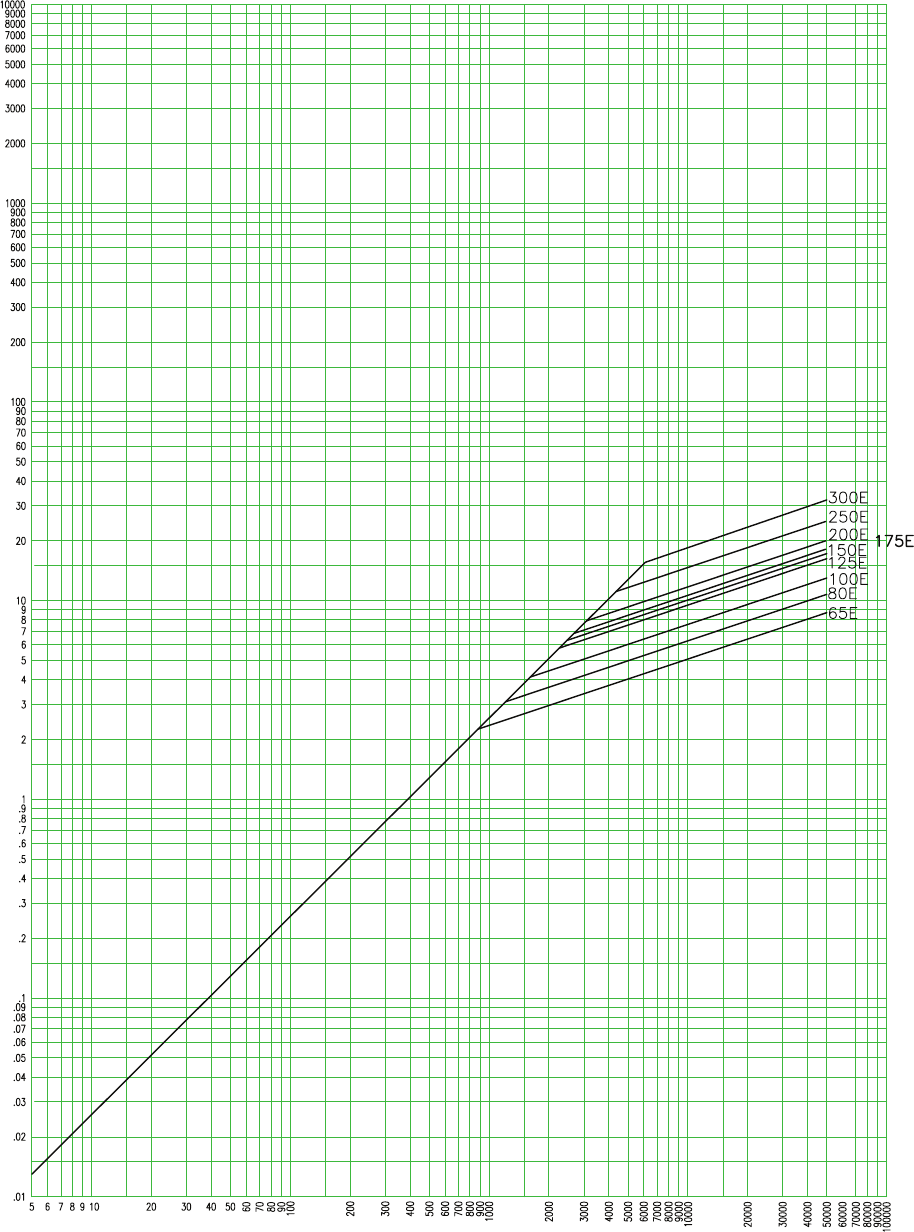

15.5kV Peak let-through for 15LHLE_ 3 inch diameter fuses
Peak Instantaneous Let-Through Current in Kilo-amperies
CURRENT IN AMPERES
15LHLE_ (3 inch diameter)
Curve TC70547404
April 2011
13
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries
CLE and HLE Type mountings - in (mm)
Catalog
number
Hole centers
Overall
length Hole Inset Hole centers
Contact
height
Overall
height BIL
kVA B C D E F G
Disconnect single barrel†
15CLE-GDM-C 21.24 (539.5) 6 (152.4) 34 (863.6) 0.75 (19.0) 1.75 (44.4) 7 (177.8) 12.25 (311.1) 95
15CLE-GDM-D 21.15 (537.2) 6 (152.4) 31 (787.4) 0.62 (15.7) 1.75 (44.4) 7 (177.8) 14.22 (361.2) 95
15CLE-PDM-C 21.24 (539.5) 6 (152.4) 34 (863.6) 0.75 (19.0) 1.75 (44.4) 7 (177.8) 12.25 (311.1) 95
15CLE-PDM-D 21.15 (537.2) 6 (152.4) 31 (787.4) 0.62 (15.7) 1.75 (44.4) 7 (177.8) 14.22 (361.2) 95
15CLE-HPDM-C 21.24 (539.5) 6 (152.4) 34 (863.6) 0.75 (19.0) 1.75 (44.4) 8.5 (215.9) 13.75 (349.2) 110
15CLE-HPDM-D 21.15 (537.2) 6 (152.4) 31 (787.4) 0.62 (15.7) 1.75 (44.4) 8.5 (215.9) 15.72 (399.3) 110
15HLE-GDM-D 16.25 (412.8) 6 (152.4) 25 (647.7) 0.62 (15.7) 1.75 (44.4) 7 (177.8) 14.22 (361.2) 95
15HLE-PDM-D 16.25 (412.8) 6 (152.4) 25 (647.7) 0.62 (15.7) 1.75 (44.4) 7 (177.8) 14.22 (361.2) 95
Disconnect double barrel†
15CLE-PDM-E 21.15 (537.2) 6 (152.4) 31 (787.4) 0.62 (15.7) 1.75 (44.4) 8.5 (215.9) 19.28 (489.7) 95
15HLE-GDM-E 16.25 (412.8) 6 (152.4) 25 (635) 0.62 (15.7) 1.75 (44.4) 7 (177.8) 17.78 (451.6) 95
15HLE-PDM-E 16.25 (412.8) 6 (152.4) 25 (635) 0.62 (15.7) 1.75 (44.4) 7 (177.8) 17.78 (451.6) 95
Non-disconnect single barrel
15CLE-GNM-C 21.25 (539.7) 6 (152.4) 30.5 (774.7) 0.75 (19.0) 1.75 (44.4) 7 (177.8) 9.75 (247.6) 95
15CLE-PNM-C 21.25 (539.7) 6 (152.4) 30.5 (774.7) 0.75 (19.0) 1.75 (44.4) 7 (177.8) 9.75 (247.6) 95
15CLE-HPNM-C 21.25 (539.7) 6 (152.4) 30.5 (774.7) 0.75 (19.0) 1.75 (44.4) 8.5 (215.9) 11.25 (285.7) 110
15CLE-GNM-D 21.15 (539.7) 6 (152.4) 31 (787.4) 0.62 (15.7) 1.75 (44.4) 7 (177.8) 11.29 (286.7) 95
15CLE-PNM-D 21.15 (539.7) 6 (152.4) 31 (787.4) 0.62 (15.7) 1.75 (44.4) 7 (177.8) 11.29 (286.7) 95
15CLE-HPNM-D 21.15 (539.7) 6 (152.4) 31 (787.4) 0.62 (15.7) 1.75 (44.4) 8.5 (215.9) 12.79 (286.7) 110
15HLE-GNM-D 16.25 (412.7) 6 (152.4) 25 (635) 0.62 (15.7) 1.75 (44.4) 7 (177.8) 11.29 (286.7) 95
15HLE-PNM-D 16.25 (412.7) 6 (152.4) 25 (635) 0.62 (15.7) 1.75 (44.4) 7 (177.8) 11.29 (286.7) 95
Non-disconnect double barrel
15CLE-PNM-E 21.15 (539.7) 6 (152.4) 31 (787.4) 0.62 (15.7) 1.75 (44.4) 8.5 (215.9) 14.98 (380.5) 95
15HLE-GNM-E 16.25 (412.7) 6 (152.4) 25 (635) 0.62 (15.7) 1.75 (44.4) 7 (177.8) 14.98 (380.5) 95
15HLE-PNM-E 16.25 (412.7) 6 (152.4) 25 (635) 0.62 (15.7) 1.75 (44.4) 7 (177.8) 14.98 (380.5) 95
CLE and HLE Type disconnect mounting†CLE and HLE Type non-disconnect mounting
D
D
E
E
AC
B
G
FD
D
E
E
A
B
C
G
F
† Disconnect mountings provide a means for fuse extraction only. Do not use a
disconnect mounting for load switching or fuse removal while energized.
14
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries
E-Rated medium voltage specialty mount fuses
Catalog symbols:
• 15BHLE-_E (bolt-on version)
• 15HCL-_E (clip-lock version)
Ratings*:
• Volts — 15.5kV
• Amps — 10 to 300A
• Interrupting ratings — 50 to 63kA RMS Sym
* See catalog number tables for voltages, ampacities and interrupting ratings by
catalog number.
Agency information:
• E-Rated fuses meet the performance characteristics of
ANSI C37.46
Recommended live parts for clip-lock fuses
• Catalog number HCL-NL-1
B
2.12
(53.8)
C
A
Indicator to be
located here
3.31
(84.1)
B2.12
(53.8)
C
A
Indicator to be
located here
3.31
(84.1)
B2.12
(53.8)
C
A
3.31
(84.1)
HCL
Dimensions - in (mm)
BHLE
7.94 (201.7)
B
AIndicator
0.25
(6.4)
1.25
(31.8)
0.5 (12.7)
1.25
(31.8)
4.31 (109.5)
11.62 (295.1)
11.62 (295.1)
3.00
(76.2)
0.38
(9.7)
0.5 (12.7)
Indicator
0.44 x 0.91
(11.2 x 23.1) Slots
C
0.44 (11.2) Dia. Hole
AX.XX (XX.X)
B
* Flush with surface in untripped position, trip force is 2 lb (0.9kg)
7.94 (201.7)
4.31 (109.5)
15
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries
BHCL, BHLE and HCL Type fuses
Amps
Dimensions — in (mm) IR RMS Sym.
(kA) No. of barrels
Installation
location Catalog no.Length A Diameter B Hole centers C
BHCL and BHLE bolt-on
10
22.2 (563)
3 (76)
20.9 (531) 63
1
Indoor/outdoor
15BHLE-10E
15 15BHLE-15E
20 15BHLE-20E
25 15BHLE-25E
30 15BHLE-30E
40 15BHLE-40E†
50 15BHLE-50E†
65 15BHLE-65E†
80 15BHLE-80E†
100 15BHLE-100E†
125 15BHLE-125E†
150
2
15BHLE-150E†
175 15BHLE-175E†
200 15BHLE-200E†
250 15BHLE-250E†
300 25.1 (637) 23.7 (602) 50 Indoor 15BHCL-300E
400 3 Indoor 15BHCL-400E
HCL clip-lock
10
22.8 (579) 3 (76) N/A 63
1
Indoor
15HCL-10E
15 15HCL-15E
20 15HCL-20E
25 15HCL-25E
30 15HCL-30E
40 15HCL-40E†
50 15HCL-50E†
65 15HCL-65E†
80 15HCL-80E†
100 15HCL-100E†
125 15HCL-125E†
150
2
15HCL-150E†
175 15HCL-175E†
200 15HCL-200E†
250 15HCL-250E†
300 15HCL-300E†
† UL Listed, Guide JEEG, File E240398.
TW‘E \N SECONDS
‘m
sub
mo
am
Sun
mo
mo
m
‘33
53
m
an
m
In
as
n7
as
as
m
n3
n2
m
5 sumo
2n
3a w wsasag
znu
CURRENT \N AMPERES
mm:
mm)
mm
mm
mum
7mm
moo
mnum
16
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries

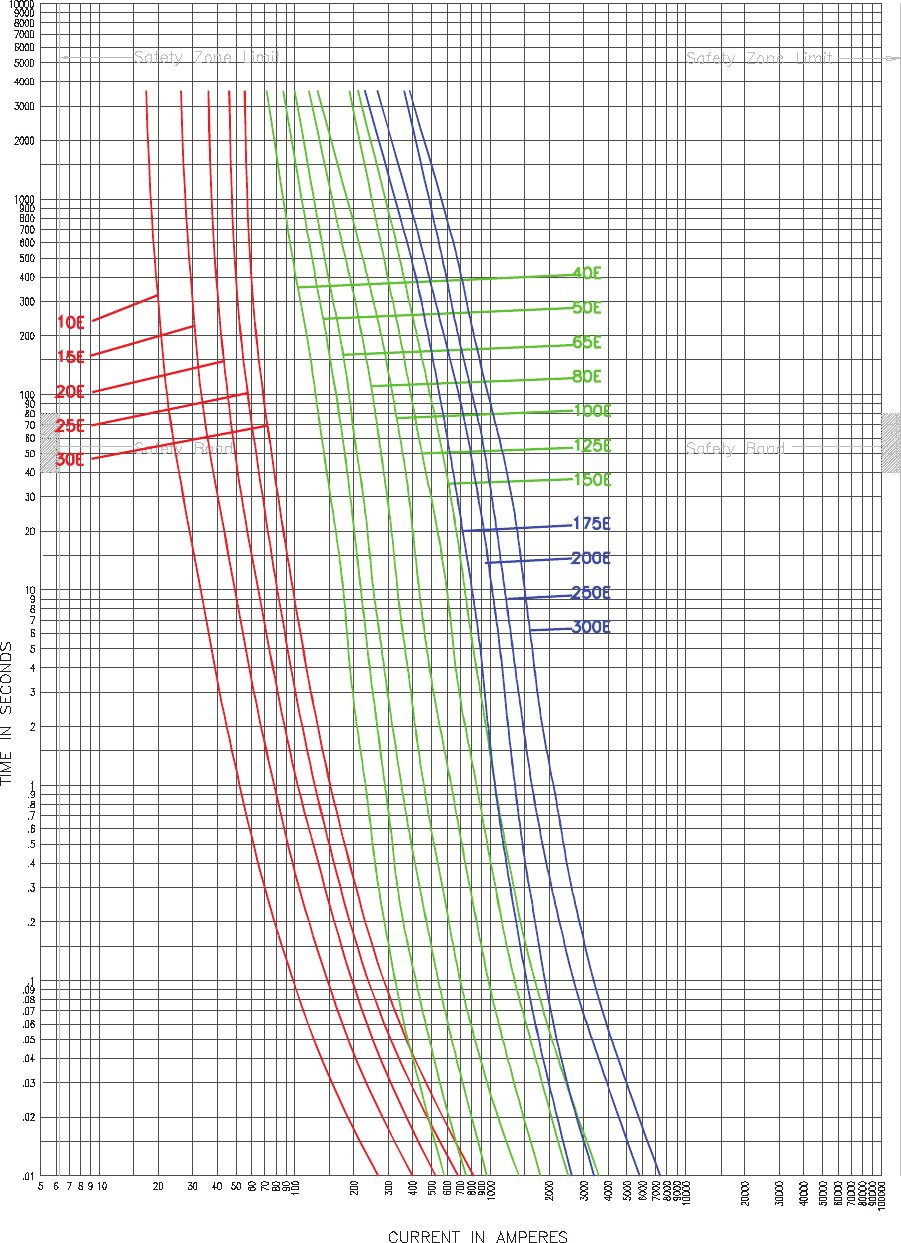

15.5kV Time-current curves — minimum melt for 15CLE-_E and 15CLE-_-D
15CLE-_
Curve 70548501
April 16, 1999
Reference # 563532
Curve 70546801
April 1999
Reference # 705468
Curve 70547001
April 1999
Reference # 705470
:3.
as
as
as
53
as
2%
E
M w $222523
2n
557mm
ma mazoumm 2, mg
,m
am
000
m
7000
mm
5000
«no
10m
1000
mm
mm
mm
mm
m
sun
Mm
m
znn
‘
83
an
7n
an
an
m
an
2n
\N AMPERES
CURRENT
17
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries
15.5kV Time-current curves — total clear for 15CLE-_E and 15CLE-_-D
15CLE-_
Curve 70548601
April 16, 1999
Reference # 563533
Curve 70546901
April 1999
Reference # 705469
Curve 70547101
April 1999
Reference # 705471
mm
m
m
mu
m
E mm
m mu
13‘s]? Z E
mum:
mm m $5755.: 1
o 1033:? 5;, $8233ka
x18
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries

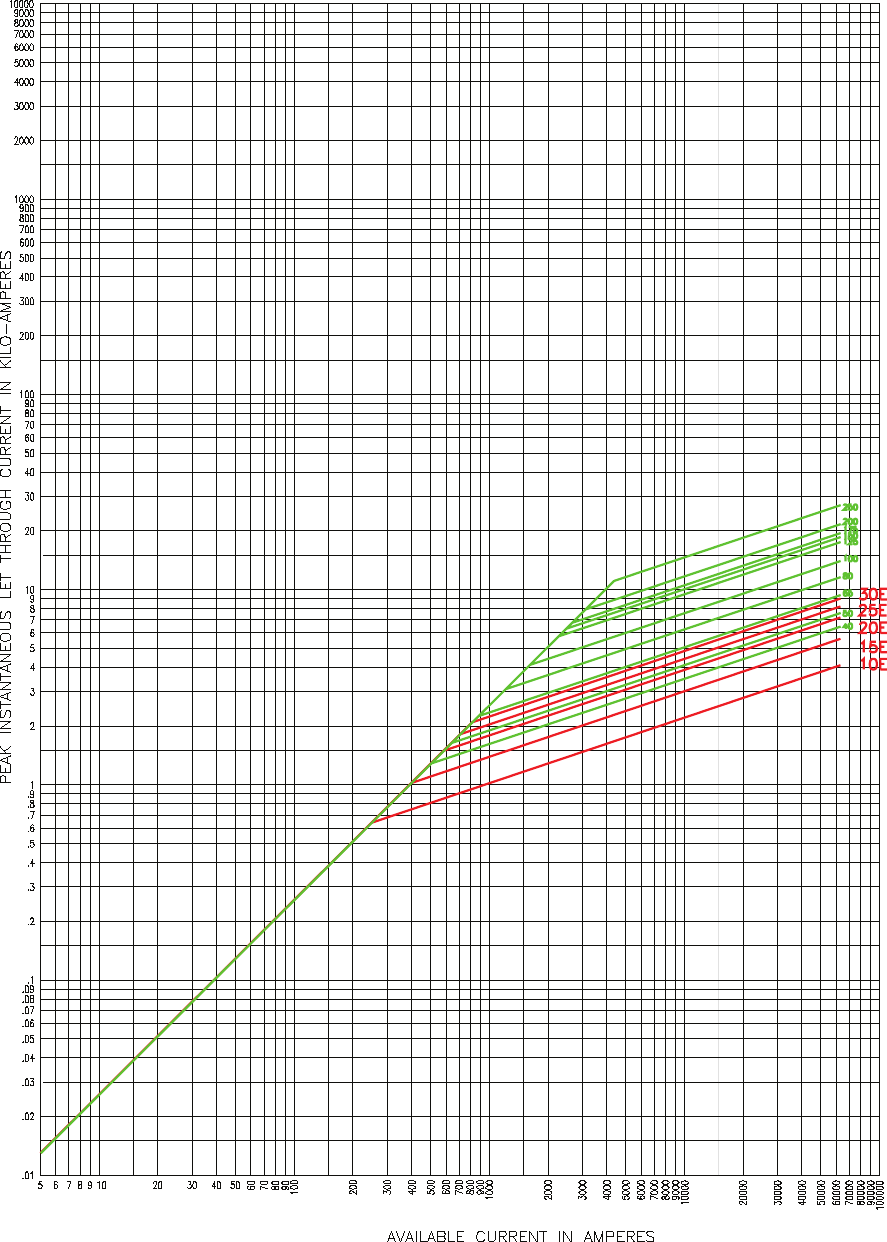

15.5kV Peak let-through for 15CLE-_E and 15CLE-_-D
15CLE-_
Curve 70548802
September 1999
Reference # 705488
Curve 70547501
September 1999
Reference # 705475
V
E
a:
a:
a:
E
a.
E
a:
2n
557nm
‘ mozoomm 7: m};
moo
7000
soon
5000
mm
1600
mm
mm
enn
mm
m
m
m
Mm
m
m
ma
in
an
7n
sn
an
m
an
2n
m
W AMF'ERES
CURRENT
19
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries

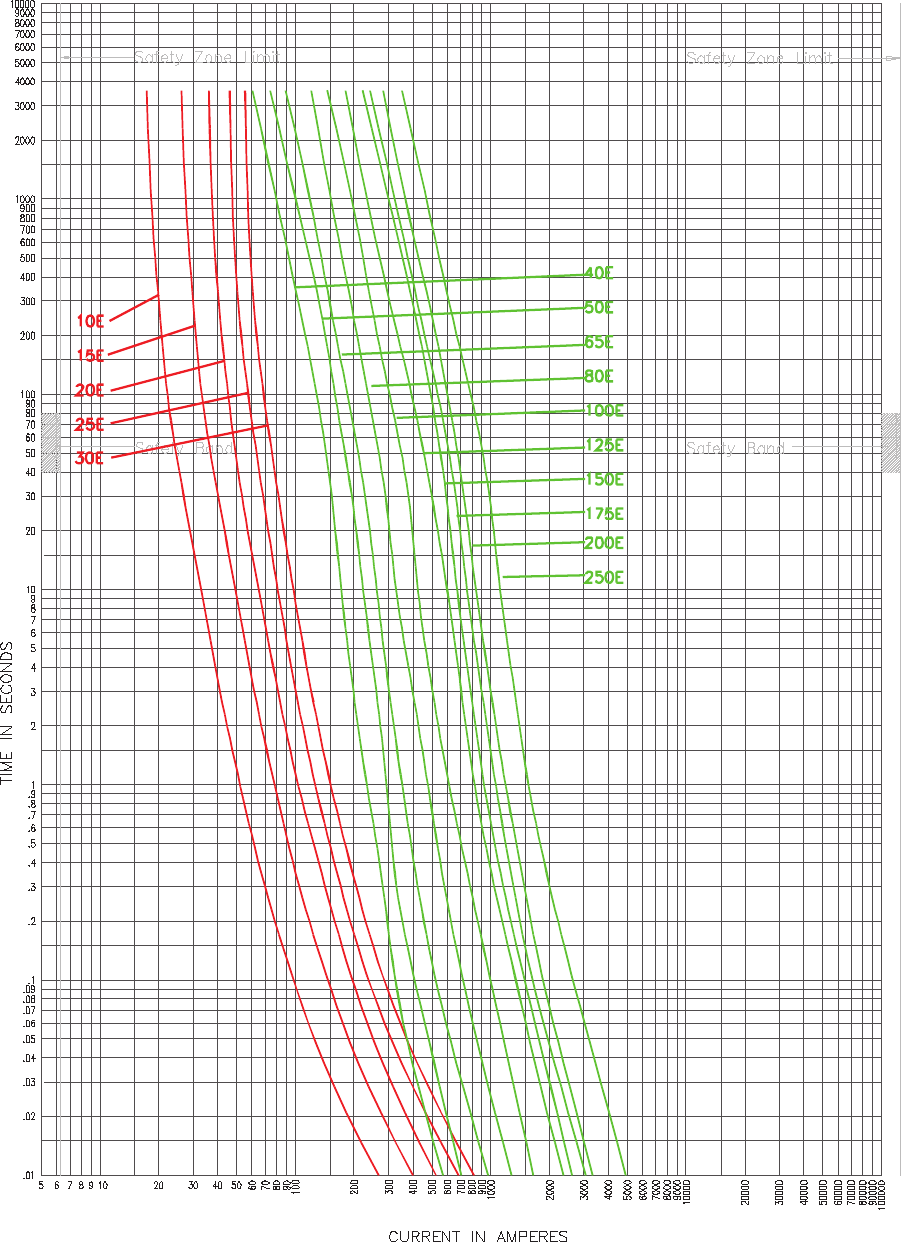

15.5kV Time-current curves — minimum melt for 15HLE-_E and 15BHLE-_E
15HLE-_, 15BHLE-_
Curve 70548507
April 16, 1999
Reference # 563532
Curve 70546601
April 1999
Reference # 705466
gas
:2
as
33
as
as
32
as
as,
a:
a:
a:
an
2:
an
E
2n
557nm
mmzoomm Z, w};
m
24m
mm
m
yam
mm
m
1000
‘m
sub
mu
am
am
mu
m
m
m
50
an
m
50
in
w
m
m
\N AMF'ERES
CURRENT
20
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries

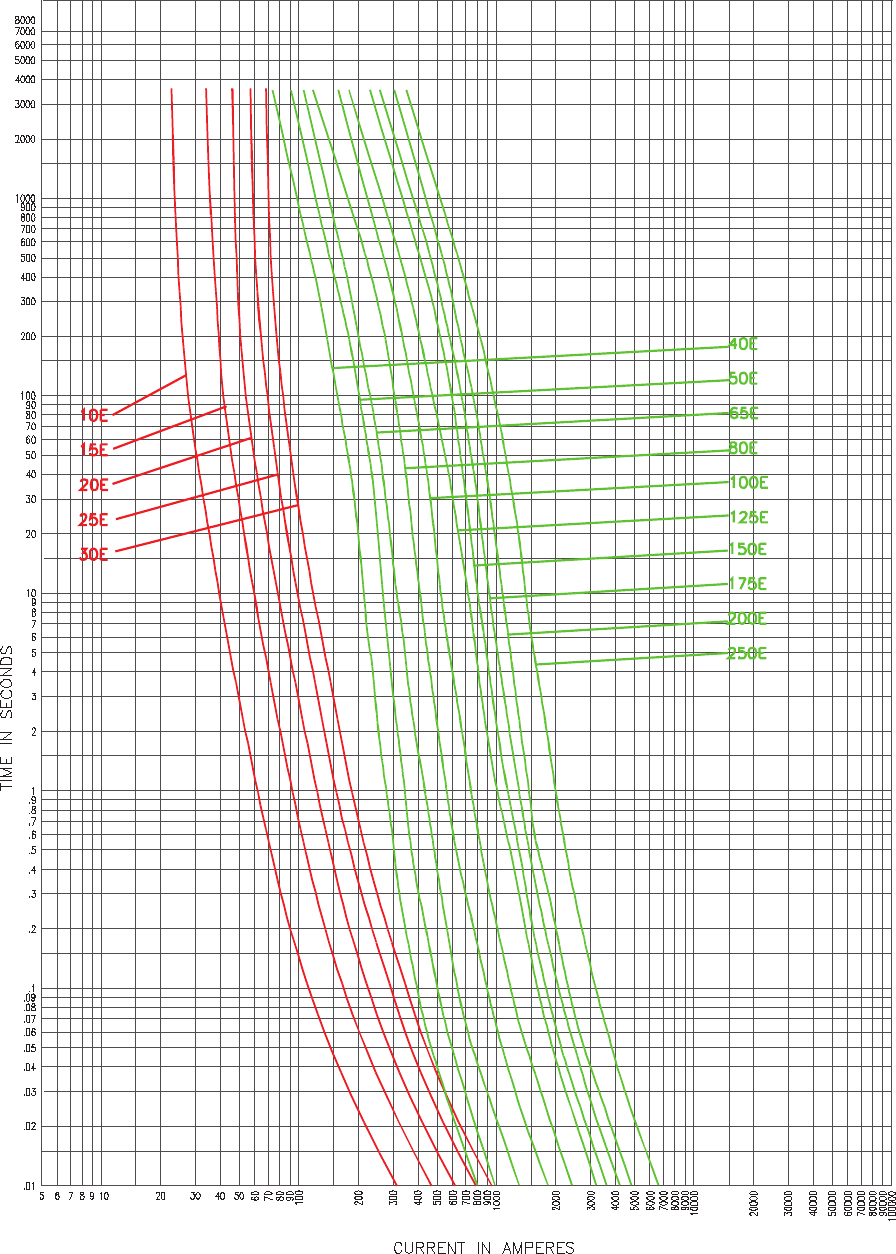

15.5kV Time-current curves — total clear for 15HLE-_E and 15BHLE-_E
15HLE-_, 15BHLE-_
Curve 70548607
April 16, 1999
Reference # 563533
Curve 70546701
April 1999
Reference # 705467
Danna,
1L1
557nm
m
unm
sow
mm
7000
am
5000
«xx:
mm
moo
mm
ann
um
m
sun
mm
m EETOJE Z Emmmju 108%.? EA, mjongzimz, VZME
AVA‘LABLE CURRENT W AMF'ERES
21
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries

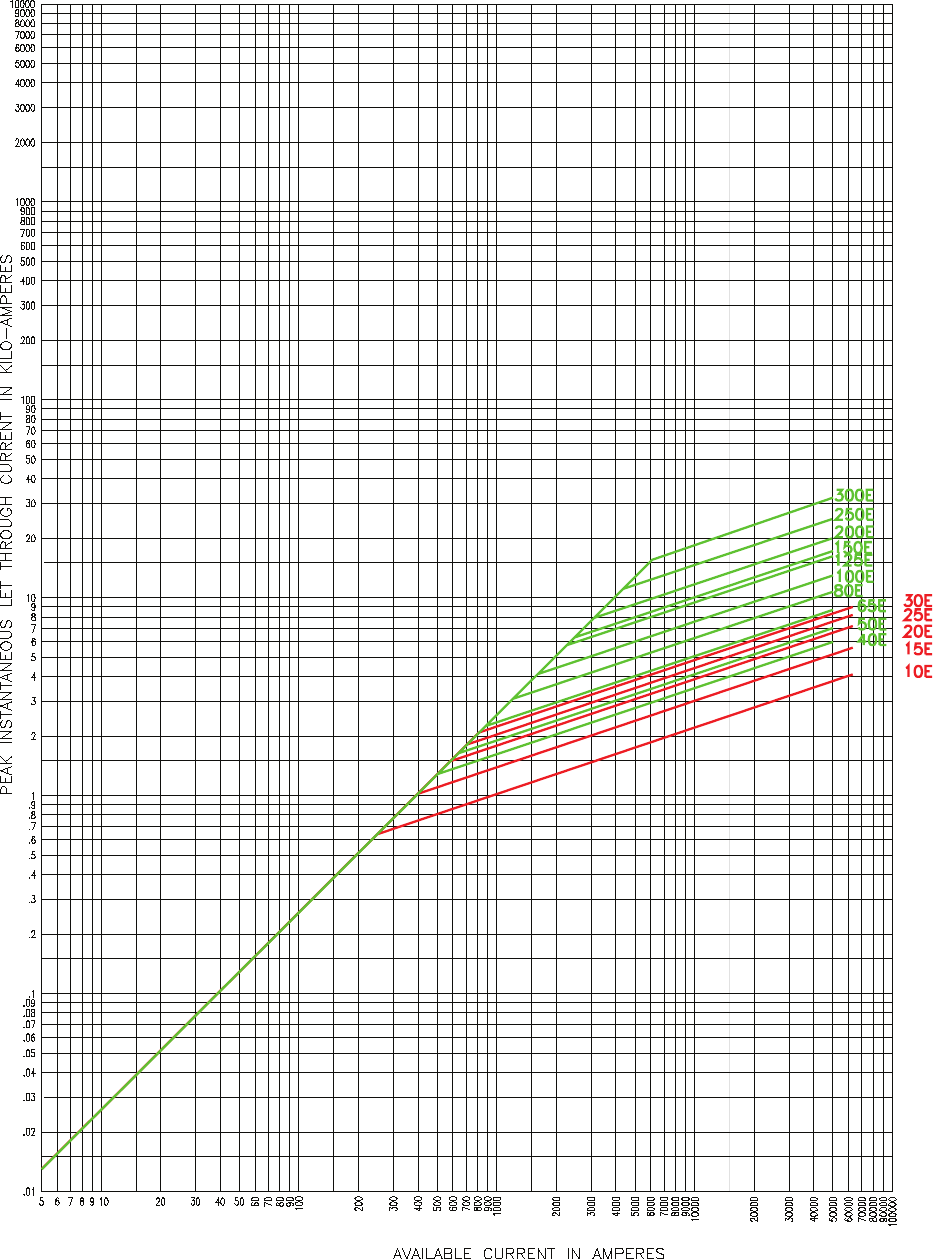

15.5kV Peak let-through for 15HLE-_E and 15BHLE-_E
15HLE-_, 15BHLE-_
Curve 70548805
September 1999
Reference # 705488
Curve 70547401
September 1999
Reference # 705474
332
as:
3::
BE
32;
3%
82:
BE
3::
82
an
2:
am
an
E
an
an
m an sagas
an
in
5 s7um
‘m
mm w mwmmmwwm m msa7ns43 2 3575.543 2 ‘mmmmmmm m
mozoumm 2, ME;
\N AMPERES
CURRENT
22
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries

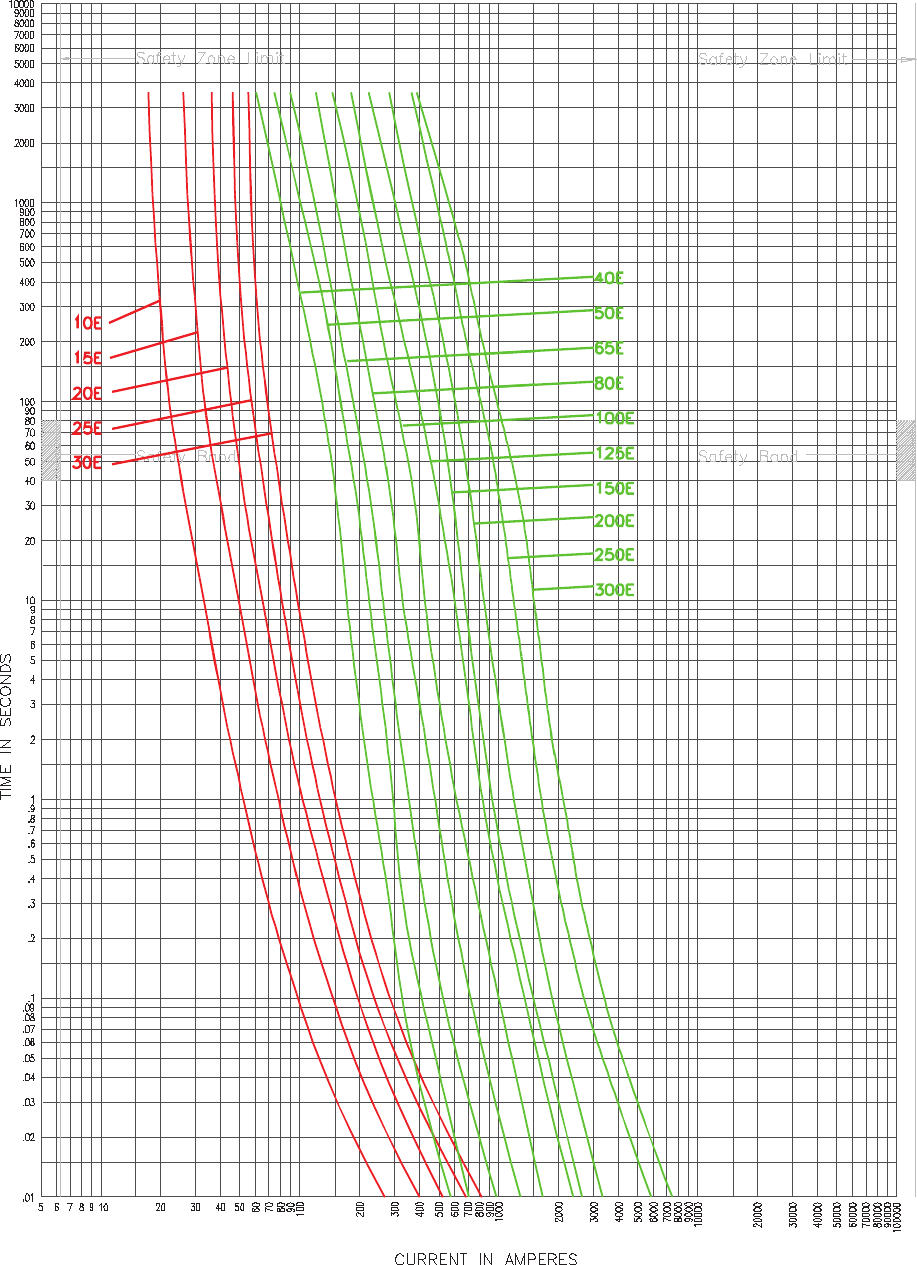

15.5kV Time-current curves — minimum melt for 15HCL-_E
15HCL-_ Curve 70548503
Janaury 2001
Curve 66703201
January 2001
\N SECONDS
T‘ME
mu
‘S‘ZB
an»
mu
am
Sun
mu
m
no
mo
an
70
an
an
:0
2n
as
n7
ms
n5
n4
m
M
‘m
5 mam
2D
30 w maesag
znu
CURRENT
Egg 5
\N AMPERES
mm
mum
mum
mm
mm
mum
(mum
mm
23
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries

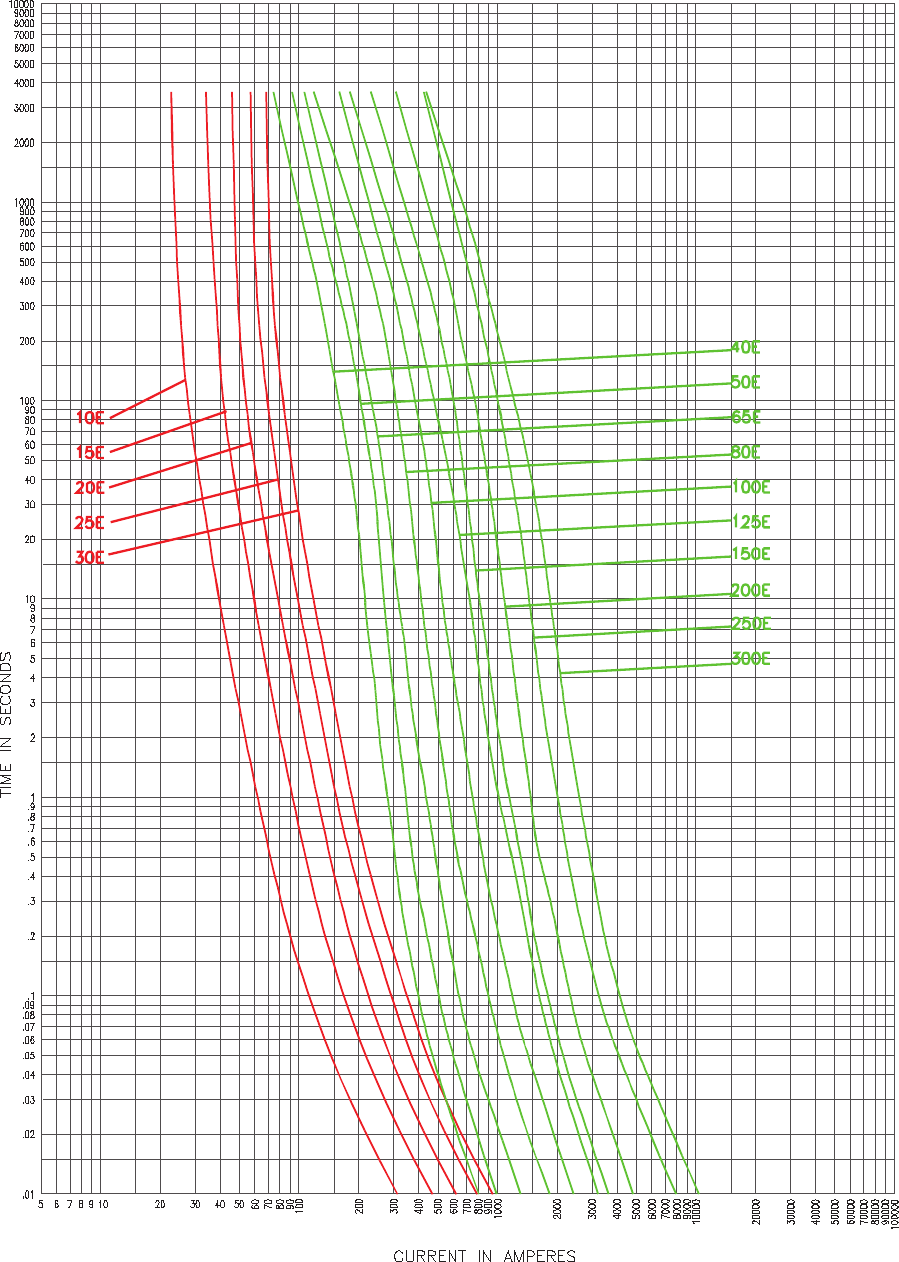

15.5kV Time-current curves — total clear for 15HCL-_E
15HCL-_ Curve 70548603
Janaury 2001
Curve 66703301
January 2001
24
Technical Data 10353
Effective September 2018
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Eaton.com/bussmannseries
15.5kV Peak let-through for 15HCL-_E
15HCL-_ Curve 70548803
Janaury 2001
Curve 70547402
Janaury 2001
1-"
y mum v,
15.5kV E-Rated medium voltage fuses for
feeder circuit, switchgear and transformer protection
Technical Data 10353
Effective September 2018
25
The only controlled copy of this Data Sheet is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document
are by definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the
end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any products and to discontinue
or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this
bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Eaton and Bussmann are valuable trademarks
of Eaton in the U.S. and other countries. You
are not permitted to use the Eaton trademarks
without prior written consent of Eaton.
ANSI is a registered trademark of the
American National Standards Association
IEEE is a registered trademark of the Institute
of Electrical and Electronics Engineers
NEMA is a registered trademark of the
National Electrical Mfgrs. Association
NFPA is a registered trademark of the National
Fire Protection Association
UL is a registered trademark of the
Underwriters Laboratories, Inc.
Eaton
1000 Eaton Boulevard
Cleveland, OH 44122
Eaton.com
Bussmann Division
114 Old State Road
Ellisville, MO 63021
United States
Eaton.com/bussmannseries
© 2018 Eaton
All Rights Reserved
Printed in USA
Publication No. 10353 - BU-SB15153
September 2018
Products related to this Datasheet
FUSE CARTRDGE 300A 15.5KVAC BOLT
FUSE CARTRDGE 400A 15.5KVAC BOLT
FUSE CARTRDGE 100A 15.5KVAC BOLT
FUSE CARTRIDGE 10A 15.5KVAC BOLT
FUSE CARTRDGE 125A 15.5KVAC BOLT
FUSE CARTRDGE 150A 15.5KVAC BOLT
FUSE CARTRIDGE 15A 15.5KVAC BOLT
FUSE CARTRDGE 175A 15.5KVAC BOLT
FUSE CARTRDGE 200A 15.5KVAC BOLT
FUSE CARTRIDGE 20A 15.5KVAC BOLT
FUSE CARTRDGE 250A 15.5KVAC BOLT
FUSE CARTRIDGE 25A 15.5KVAC BOLT
FUSE CARTRIDGE 30A 15.5KVAC BOLT
FUSE CARTRIDGE 40A 15.5KVAC BOLT
FUSE CARTRIDGE 50A 15.5KVAC BOLT
FUSE CARTRIDGE 65A 15.5KVAC BOLT
FUSE CARTRIDGE 80A 15.5KVAC BOLT
FUSE CARTRIDGE 100A 15.5KVAC
FUSE CARTRIDGE 10A 15.5KVAC
FUSE CARTRIDGE 125A 15.5KVAC
FUSE CARTRIDGE 30A 15.5KVAC
FUSE CARTRIDGE 150A 15.5KVAC
FUSE CARTRIDGE 150A 15.5KVAC
FUSE CARTRIDGE 15A 15.5KVAC
FUSE CARTRIDGE 15A 15.5KVAC
FUSE CARTRIDGE 65A 15.5KVAC
FUSE CARTRIDGE 175A 15.5KVAC
FUSE CARTRIDGE 200A 15.5KVAC
FUSE CARTRIDGE 20A 15.5KVAC
FUSE CARTRIDGE 20A 15.5KVAC
