Universal AC input, Quasi-Resonant Switching

AP3301 12V-3.5A EV1 Board User Guide

AP3301 EV1 Rev1.1 Page 1 of 11

10-15-2018

www.diodes.com

General Description

The AP3301 EV1 board is a Quasi-Resonant

Flyback converter, operating under CCM and

DCM, the valley switching on mode function

will be appeared at all DCM region of variable

load & high input AC line voltage conditions,

it is employed with the peak-current control &

multi-mode PWM control functions. Based on

above the high performances are optimized &

achieved. It is designed to serve as an

example for High Efficiency, cost-effective &

components less consumer home appliance

systems. Its output power is rated at 42W with

12V-3.5A and peak power can be reach to 48W

at peak time. Its input power consumption is

less than 100mW at no load and meets DOE VI

and CoC Tier 2 energy efficiency requirement.

Key Features

 90 ~265VAC input range

 Multi-Mode PWM method operation & QR

valley switching cover full range of AC input at

heavy load, the switching frequency between

20Khz ~120Khz.

 With Valley Switching Turn on function that

improving power converting efficiency, the

90% Efficiency can be reached.

 During the burst mode operation the 100mW

low standby input power can be achieved.

 Dynamic response is improved during work at

three mode operation.

 Low start-up operating and low quiescent

currents at turn on moment.

 Soft start during startup process.

 Provide accurate constant voltage regulation &

accurate constant current (CC) regulation.

 Frequency fold back for high average

efficiency

 Built-in Jittering Frequency function is built in

to reduce EMI emission.

 Valley-on Soft Switching for Reducing EMI.

 Internal Auto Recovery OCP, OVP, OLP, OTP

Power Protection, cycle by cycle current limit,

also with DC polarity protection

 With a Brown out Protection.

Applications

 Switching AC-DC Adaptor & Charger

 Power home Appliances systems

 Set-top box & TV power supply

 Open frame switching power supply

Universal AC input QR 12V-3.5A Power

Specifications (CV & CC mode)

Parameter

Value

Input Voltage

90 to 265VAC

Main output Vo / Io

12V – 3.5A

Standard power

Less than 100mW

Efficiency

>89%

Total Output Power

42W

Protections

OCP, OVP, OLP,OTP

XYZ Dimension

76.0 x 50.4 x 22 mm

ROHS Compliance

Yes

Evaluation Board Picture:

Figure 1: Top View

Figure 2: Bottom View

FL1 FL2 N 4 5 1 s 4 N ( 1 N 7 1 m m

Universal AC input Quasi - Resonant

AP3301 12V-3.5A EV1 Board User Guide

AP3301 EV1 Rev1.1 Page 2 of 11

10-15-2018

www.diodes.com

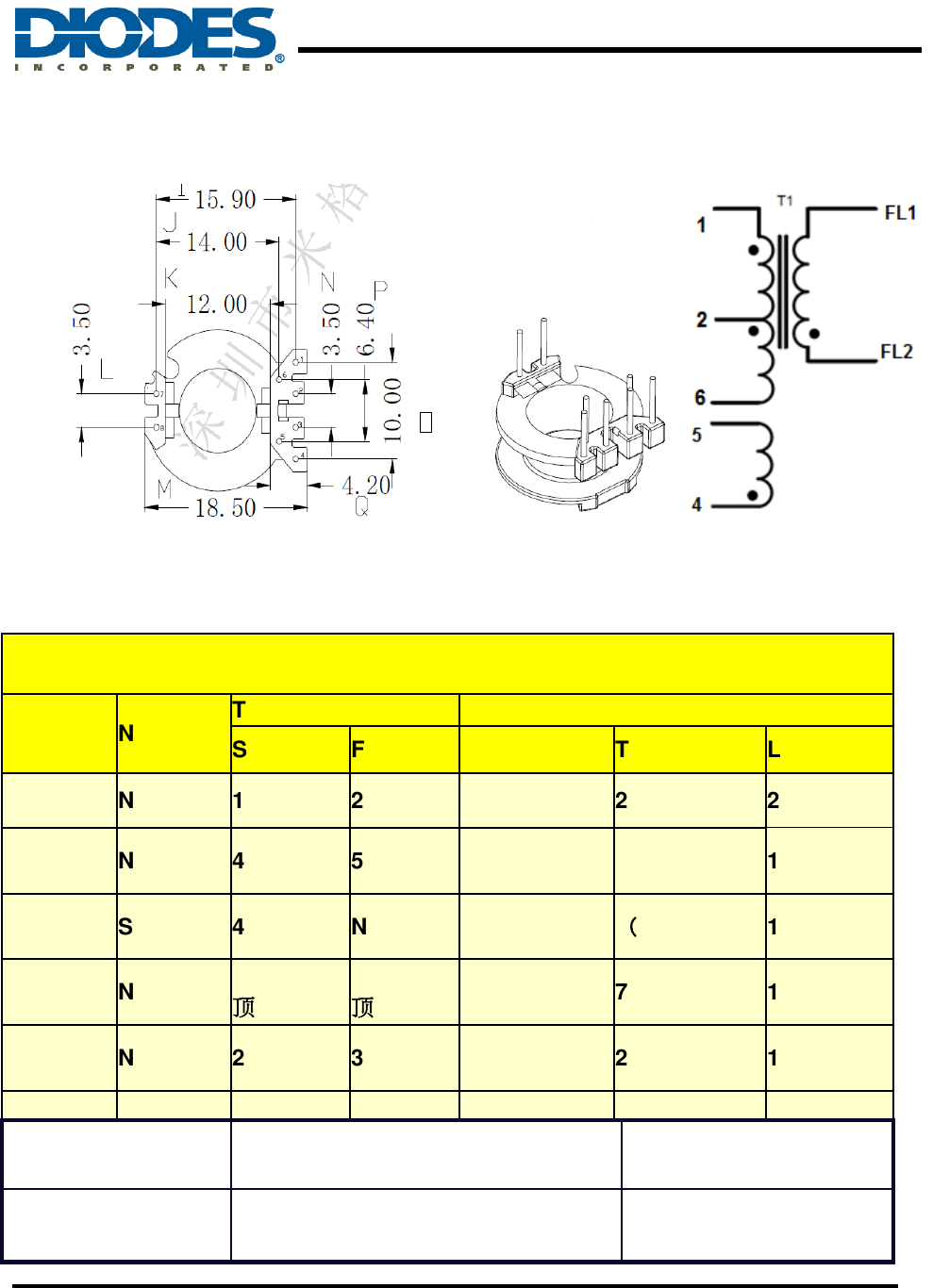

AP3301 (90 VAC ~ 265V

AC one output 42W Transformer Spec.)

1) Core & Bobbin: RM8 , 6+2 pin 2) Electrical Diagram:

3) Transformer Parameters

1. Primary Inductance (Pin2-Pin1), all other windings are open

Lp = 0.7mH

± 5

% @1KHz

RM8 （Ae = 64mm^2）

NO

Winding

NAME

TERMINAL NO.

WINDING

START

FINISH

WIRE

TURNS

Layers

1

Np1

1

2

Φ 0.35 (27#

AWG)

21 x 2= 42Ts

2

Na

4 ( Gnd )

5

Φ 0.2*3

9 Ts

1

3

Shield

4（GND）

NC

Φ 0.2* 2

（均匀分布）

1

4

Ns

FL2（G）

顶部飞线

FL1 (+)

顶部飞线

Φ 0.5W *2

(24# AWG)

7 Ts

1

5

Np2

2

3

Φ 0.35

(27# AWG)

20

1

Primary Inductance

Pin 3-1,all other windings open,

measured at 1kHz, 0.4VRMS

650~700uH±5%

Primary Leakage

Inductance

Pin 3-1, all other windings shorted,

measured at 10kHz, 0.4VRMS

20 uH (Max.)

Universal AC input Quasi - Resonant

AP3301 12V-3.5A EV1 Board User Guide

AP3301 EV1 Rev1.1 Page 3 of 11

10-15-2018

www.diodes.com

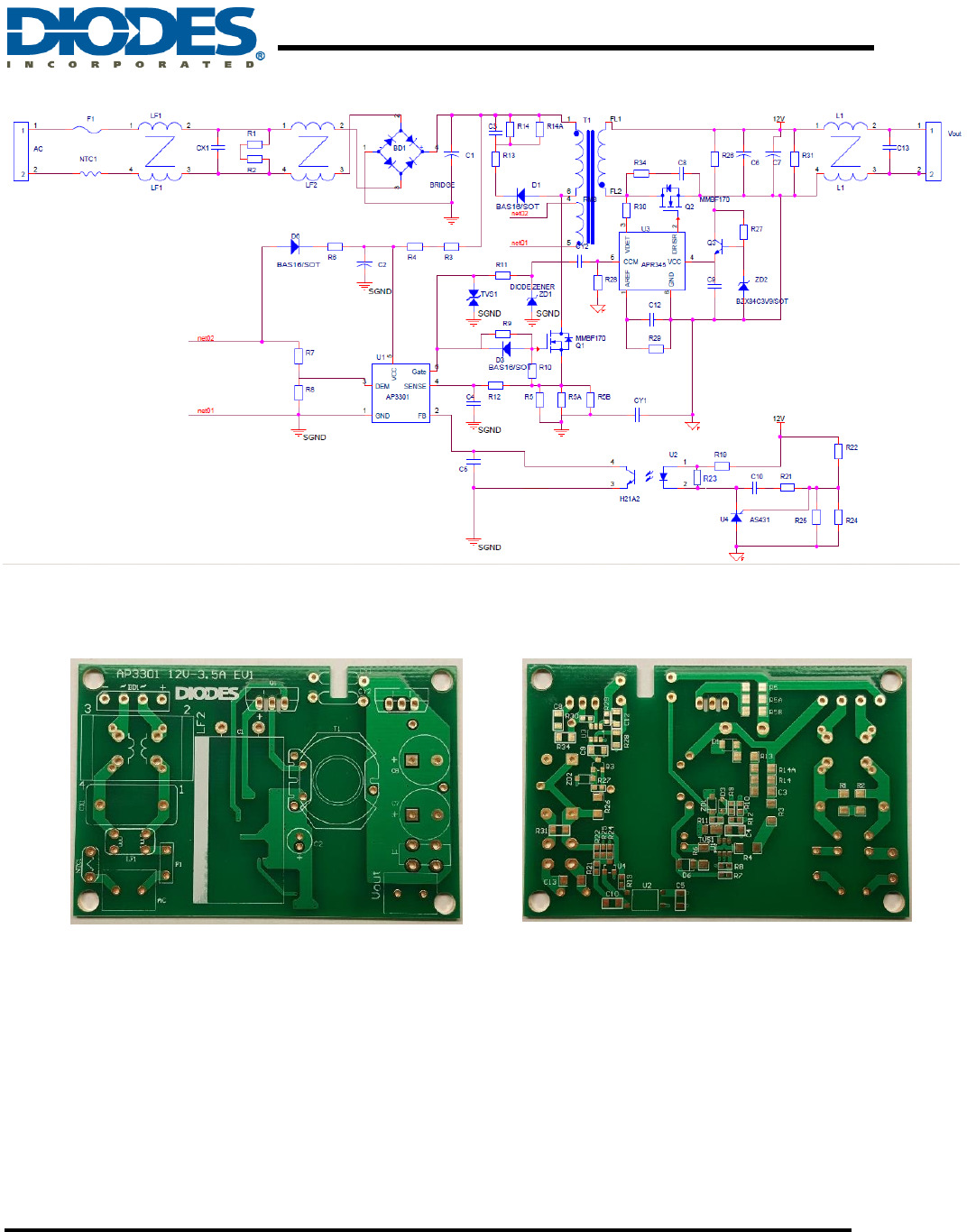

Evaluation Board Schematic

Figure 3: Evaluation Board Schematic

Evaluation of PCB Board Layout

Figure4: PCB Board Layout Top View

Figure5: PCB Board Layout Bottom View

Quick Start Guide

1. The evaluation board is preset at 12V/3.5A from output side of Block Terminal TH1 ~TH2

2. Ensure that the AC source is switched OFF or disconnected.

3. Connect the AC line wires of power supply to “L and N” on the AC side of Block Terminal.

4. Turn on the AC main switch.

5. Measure TH1~TH2 Block Terminal pins voltage to ensure correct output voltages at 12V

HODES Incol-nnAYEn

Universal AC input Quasi - Resonant

AP3301 12V-3.5A EV1 Board User Guide

AP3301 EV1 Rev1.1 Page 4 of 11

10-15-2018

www.diodes.com

Build of Material

AP3301 42W SYSTEM BOM - 10/15/2018 with schematic

Item No

Item

Type

Quantity

(Unit)

part number #

1

C1

120uF/420V, AL CAP

1

Wurth 860021381021 18x33mm

2

C2

4.7uF/35V, AL CAP

5x11mm

1

Wurth 860020572002 5 x11

3

C3

2.2nF/500V/1206 ,ceramic

1

Holy Stone

4

C4

100pF/25V, 0805ceramic

1

Wurth - 885012007057

5

C5

470pF/25V,0805,ceramic

1

Wurth - 885012007061

6

C6//C7

680uF/16V, AL CAP

2

Wurth - 870025375009

7

C8

1nF/200V,1206,ceramic

1

Wurth - 885012007063

8

C9 & C12

0.1uF/50v 0805 ceramic

2

Wurth - 885012207098

9

C10

68nF/50V 0805 ceramic

1

Wurth - 885012207097

10

C13

22uf/16V 1206 X5R

1

Holy Stone

11

R1/R2

2.2Mohm,1206

2

Yageo

12

R3/R4

1.8Mohm,1206

1

Yageo

13

R5, R5A,R5B

1R0//1R0//1R6 ohm, 1206

3

Yageo

14

R6

2.2 ohm, 1206

1

Yageo

15

R7

100Kohm,0603

1

Yageo

16

R8

15Kohm,0603

1

Yageo

17

R9

20 ohm 0603

1

Yageo

18

R10

10Kohm,0603

1

Yageo

19

R11

2k ohm, 0603

1

Yageo

20

R12

1.5Kohm, 0603

1

Yageo

21

R13

43 ohm, 1206

1

Yageo

22

R14, R14A

470Kohm,1206

2

Yageo

23

R19 , R27/off

1.0Kohm,0603

1

Yageo

24

R21/R25

12.1Kohm,0603 1%

2

Yageo

25

R22

43.2Kohm,0603

1

Yageo

26

R24

287Kohm,0603 1%

1

Yageo

27

R26

20ohm, 1206

1

Yageo

28

R28 & R31

3.9Kohm,0805

2

Yageo

29

R23

5.1Kohm 0805

1

Yageo

30

R29

100Kohm,0603

1

Yageo

31

R30

20 ohm 0603

1

Yageo

32

R34

18 ohm 0805

1

Yageo

33

CX1

0.22uF/250Vac

1

Wurth 890324024002 15x7mm

34

CY1

1nF/Y1

1

Holy Stone

35

CY2

10pF/Y1

1

Holy Stone

36

U1

AP3301, SOT-6, DIODES

1

Diodes

37

U2

LTV-356T

1

Lite-on SMD

38

U3

APR345,SOT-6, DIODES

1

Diodes

39

U4

AS431,SOT-3, DIODES

1

Diodes SOT-23

HODES ncol-nnAYEn

Universal AC input Quasi - Resonant

AP3301 12V-3.5A EV1 Board User Guide

AP3301 EV1 Rev1.1 Page 5 of 11

10-15-2018

www.diodes.com

40

Q1

DMG10N60SCT

DMJ65H600SCTI

1

Diodes

41

Q2

DMT10H10LCT

1

Diodes

TO220

42

Q3

MMBT2222A(0Rcross c,e)

off

Diodes SOT-23

43

T1

RM 8, 650uH

1

44

BD1

GBU406,DIODES

1

Diodes

45

D1

S1MWF, DIODES

1

Diodes

46

D3

IN4148WS Diodes SOD323

1

Diodes

47

D6

S1MWF, DIODES

1

Diodes

48

NTC

SHORT

49

LF1

9.6*5*4, 7T

1

Part number?

50

LF2

10mH common mode 1A

1

Wurth 744822110 17.5 x 13mm,

Holy Stone MOX-VTI-2212-100DSO

51

F1

3.15A/250V

1

52

L1

10*4*5 100uH

1

Part number?

53

PCB

1

54

Block

connector

Two P

2

OSTTA020161—ED2561-ND#

55

ZD2

DDZ9698 11Vz

off

Diodes SOD123

56

ZD1

DDZ9707 20Vz

1

Diodes SOD123

57

TVS1

DFLT18A

off

Diodes PowerDI123

TOTAL

(AP3301)

MSG ncol-nnAYEn

Universal AC input, Quasi-Resonant Switching

AP3301 12V-3.5A EV1 Board User Guide

AP3301 EV1 Rev1.1 Page 6 of 11

10-15-2018

www.diodes.com

Input & Output Characteristics

Input Standby Power

Input Voltage

115Vac/60Hz

230Vac/50Hz

Note

Pin (w)

52mW

75mW

At no loading

Input power Efficiency at different loading

AC input

Efficiency (%)

Eff_avg at four

conditions

10%

25%

50%

75%

100%

115VAC/60Hz

87.1%

90%

90.1%

89.9%

88.6%

89.65

230VAC/50Hz

84.1%

89.4%

90%

90.3%

90.4%

90%

PSU Output Characteristics:

Line Regulation (at full loading condition):

AC input Voltage

90VAC/60Hz

115VAC/60Hz

230VAC/50Hz

265VAC/50Hz

Note

Vout

12.00Vo

12.01V/3.5A

12.12V/3.5A

12.13V/3.5A

12.18V/3.5A

0.5%<

Load Regulation (at nominal line AC input voltage):

Load condition

12V/3.5

12V/2.625A

12V / 1.75A

12V / 0.875A

Note

115VAC

12.12V / 3.5A

12.15V/2.625A

12.16V/1.75A

12.17V/0.875A

0.5% <

230VAC

12.13V / 3.5A

12.15V/2.625A

12.16V/1.75A

12.17V/0.875A

0.5% <

OCP Current setting with at different AC line

AC input

90VAC

115VAC

230VAC

264VAC

Note

I _max

4.10A

4.15A

4.28A

4.41A

Note: All output voltages are measured at output PCB board Edge.

.ucon-o-n1-n Vout=12V 14 13 12 11 g 10 g 9 —Vin=90Vac B —Vin=115Vac 7 Vin=23EIVac —Vin=264Vac B 5 lo"! 4 D 0.4 U.81.21.6 2 2.4 2.8 3.2 3.6 4 4.4 4.8 5.2 nkPm/u msmv ' ‘7 1 A. "xv v ‘ A 940v a» uw a: ﬂow, A. ”a. A mm a mum u, 73”.... cmverlod ‘ ""5 r)_.__.. Numf 1 cmsslng 1 . ¢ 1 + n.—.——.—‘.——.——.——.—— ow.— . =an m sanv mum; A cm; zxnv mm Snuv ma zuuv mm... A ch11- 400V man my man my n.3322 m.sz.2o

Universal AC input Quasi - Resonant

AP3301 12V-3.5A EV1 Board User Guide

AP3301 EV1 Rev1.1 Page 7 of 11

10-15-2018

www.diodes.com

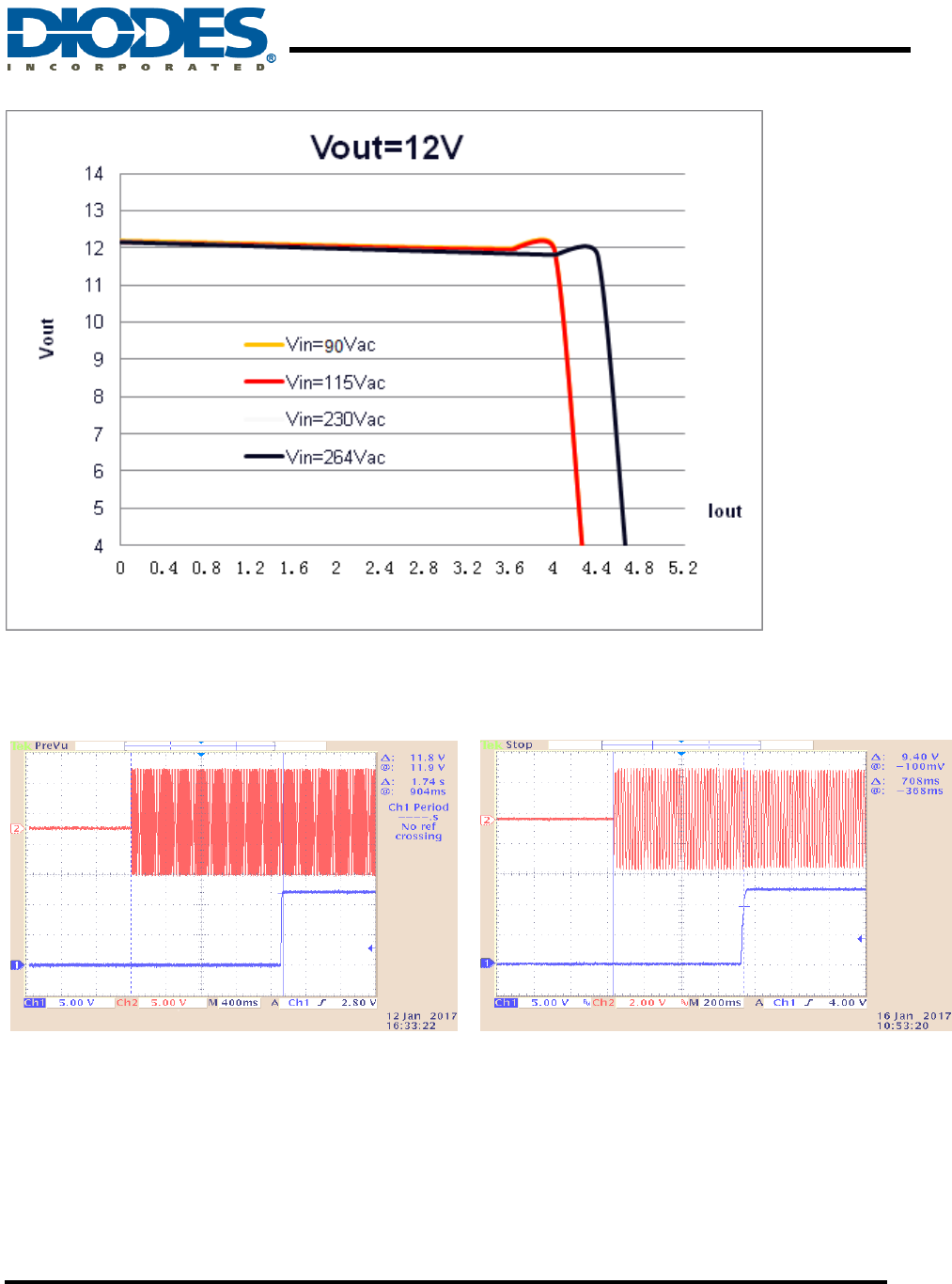

OCP curve with at different AC Input

Key Performance Waveforms:

Fig:6 Ton time at full load at 100VAC Ton=1.74s Fig:7 Ton time at full load at 230VAC Ton= 0.708s

mm 2nnv 41m s (M 1 ”4 m rm 1' Ids ,ummu ; :2 722m: Iouv m rm 1' no X2 723st mm [Elma (m1 71.an m an I um m x nams

Universal AC input Quasi - Resonant

AP3301 12V-3.5A EV1 Board User Guide

AP3301 EV1 Rev1.1 Page 8 of 11

10-15-2018

www.diodes.com

Fig:8 Vds & Vcs Waveform at100VAC 20V/Div Fig:9 Vds & Vcs at FL at 115VACin 100V/Div

Fig:10 Vds & Vcs at 230VACin at FL 100V/Div Fig:11 Vds & Vcs at 264VACin at FL 100V/Div

Output Performance Waveforms

All of the 12V ripple by using a 1:1 Probe in a 100mV/division.

Figure:12 12Vo Vp-p Ripple at 115Vac at FL . Figure:13 12Vo Vp-p Ripple at 230Vac at FL

ncoI-nnAYEn 19km, Tekmn m mm A I u, 0va H mm I w mm‘ mm 2m? \1 mm m <7 m="" h="" mm="" m="" :="" gal/us;="" 11mm;="" a:="" 113.2:="" w‘u="" em="" saga-ks="" 31:22="" ,5‘:="" mm="" 3mm="" in="" 3—3.9="" 1="" :19="" any;="" w“="" u="" as:="" dag-rs;="" nu="" metao="" v="" sallje="" 1:22.61="">

Universal AC input Quasi - Resonant

AP3301 12V-3.5A EV1 Board User Guide

AP3301 EV1 Rev1.1 Page 9 of 11

10-15-2018

www.diodes.com

Figure:14 12Vo Ripple at 115Vac at FL Figure:15 12Vo Ripple at 230Vac at FL

Thermal Test data at room Temperature after running 1 hr

Figure:18 SMD components UP side Figure:19 SMD side Vin=115VAC, Test time=1hour

Figure:20 Board Top components side Figure:21 Vin=115VAC, Testing time = 1.15 hour

\me u |_- 5 OP AV op AV -15.42dB -15.52dB -14.33dB -15.32dB 3M - 19 W1 : -|:] L N OP AV QP AV -13.01dB -6.99dB -12.59dB -8.19dB

Universal AC input Quasi - Resonant

AP3301 12V-3.5A EV1 Board User Guide

AP3301 EV1 Rev1.1 Page 10 of 11

10-15-2018

www.diodes.com

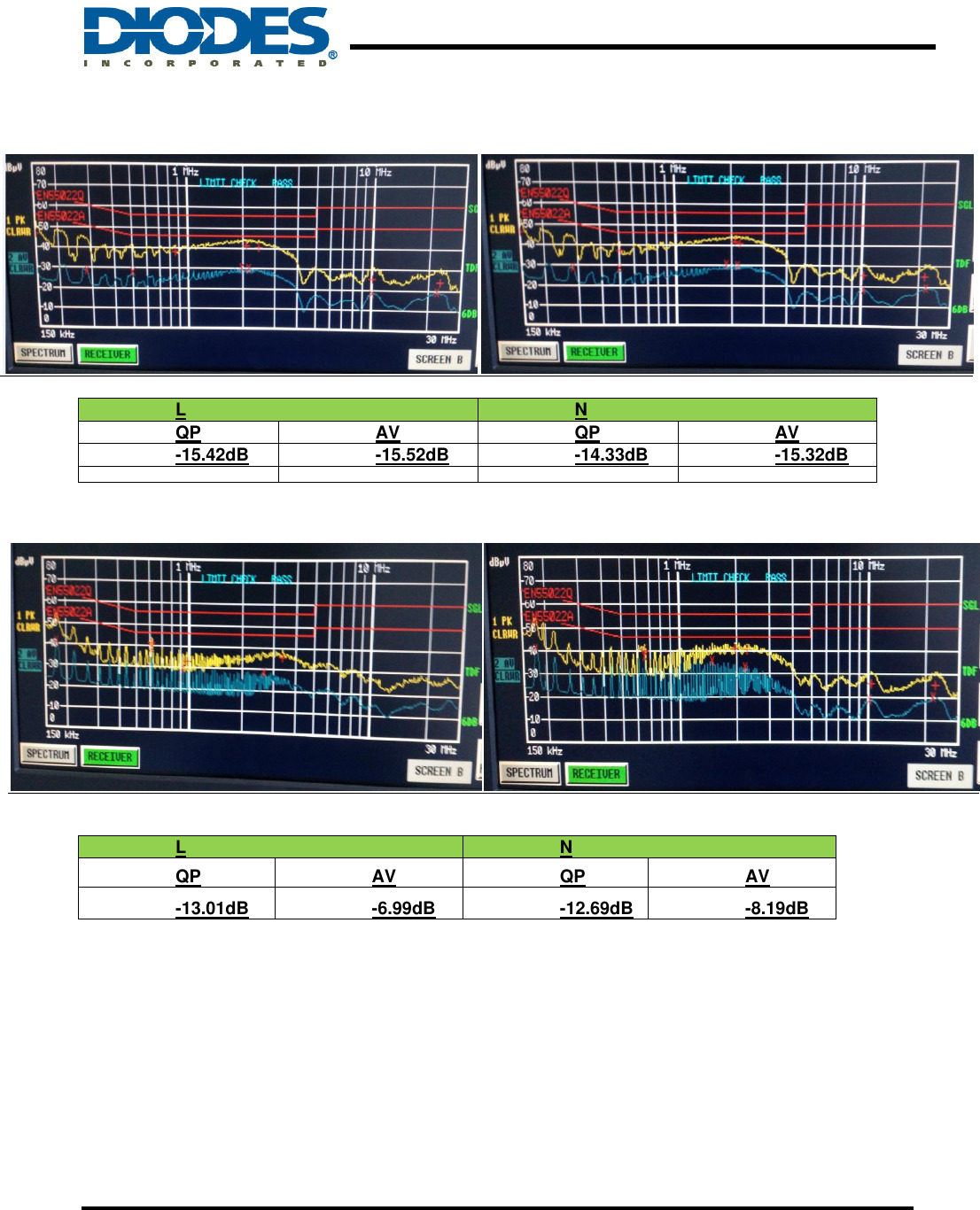

The AP3301 12V-3.5A EMC scaned data:

115Vac/60Hz 12V-3.5A Line L 115Vac /60Hz 12V-3.5A Line N

L

N

QP

AV

QP

AV

-15.42dB

-15.52dB

-14.33dB

-15.32dB

230Vac/50Hz 12V-3.5A Line L 230Vac /50Hz 12V-3.5A Line N

L

N

QP

AV

QP

AV

-13.01dB

-6.99dB

-12.69dB

-8.19dB

Please see the recommand Application note for reference

(Web page - http://www.diodes.com/appnote_dnote.html)

1) For AP3301 operation & set up, please review the Application note:

AN1120 Green Mode PWM Controller

2) For PSU PCB layout consideration, please review the App note:

AN1062 High Voltage Green Mode PWM Controller AP3105

3) For the basic Flyback topology calculation, please review the App note:

AN1045 Design Guidelines for Off-line AC-DC Power Supply Using BCD. PWM Controller AP3103

MSG ncol-nnAYEn

Universal AC input Quasi - Resonant

AP3301 12V-3.5A EV1 Board User Guide

AP3301 EV1 Rev1.1 Page 11 of 11

10-15-2018

www.diodes.com

4) Revision 1.1 charge list

a) Add in new alternate Mosfet.

b) Add in R23=5.1K for improving load regulation.

c) Updated schematic date into 10-15-2018.

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS

TO THIS DOCUMENT, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE

LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or

other changes without further notice to this document and any product described herein. Diodes Incorporated does not assume

any liability arising out of the application or use of this document or any product described herein; neither does Diodes

Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer or user of this

document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes

Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all

damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through

unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers

shall indemnify and hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and

attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or

unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product

names and markings noted herein may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this

document is the final and determinative format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems

without the express written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for

use provided in the labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably

expected to cause the failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices

or systems, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements

concerning their products and any use of Diodes Incorporated products in such safety-critical, life support devices or systems,

notwithstanding any devices- or systems-related information or support that may be provided by Diodes Incorporated. Further,

Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of

Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

AP3301EV1 Board User Guide Datasheet by Diodes Incorporated

Products related to this Datasheet
